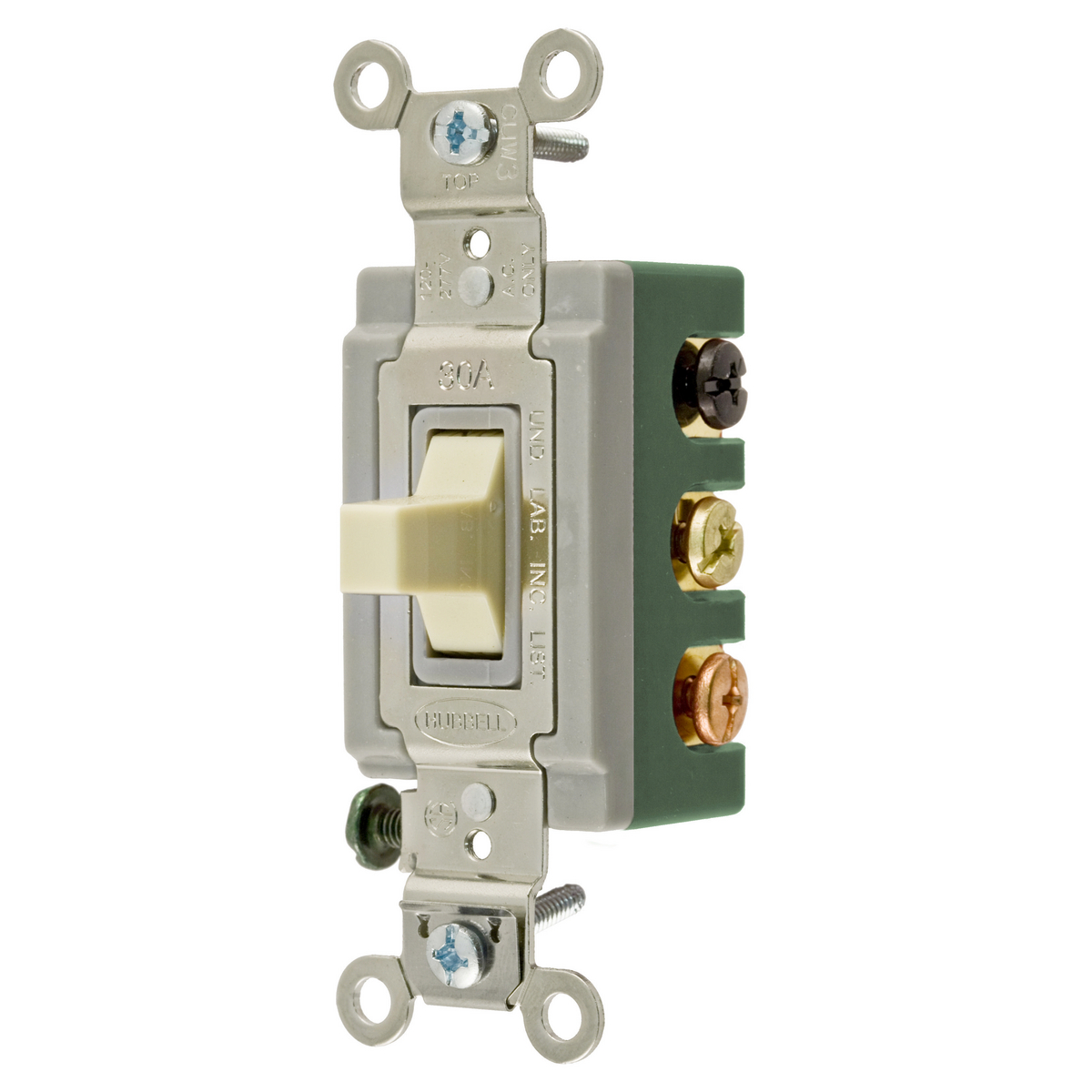

Hubbell Wiring Device-Kellems HBL1388I Extra Heavy Duty Toggle Switch, 120/277 VAC, 30 A, 2 hp, DPDT
Toggle Switches
92472
MFG #: HBL1388I
Hubbell Wiring Device-Kellems
133.76000
/ ea
Wiring Device-Kellems Toggle Switch, Extra Heavy Duty, 120/277 VAC, 30 A, 2 hp, DPDT, 2 Poles, Toggle, Screw Terminal, 50000 Operating Cycles, Thermoset, Ivory, Environmental Conditions: -40 to 115 deg C Temperature, 4.06 in H x 1.31 in W x 1.83 in D
- Full Eng Drawing URL - Wiring_Device_Kellems_HBL1556_Technical_Drawing.pdf(Full Eng Drawing URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_PHZ649E712CABOG8.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537666114166.pdf(Install Instructions URL)
- Line Drawing URL - 11456_KIN3WGJ2Z9HDEYPC.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_7MDUV9N5SBCWEPK4.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL1388I_M7162_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Back and Side Wired |
| Maintained Contact |
| Abuse resistant nylon toggle |
| Large brass binding head screws with deep slots |
| Strip gauge for accurate wiring |
| 14 to 10 AWG wire size |
| 2 hp at 120/208/240/277 VAC |
| Nylon toggle |
| Positive snap action |
| Maintained contact |
| UL 94-V2 flammability |
| Back and side wire connection |
| Positive snap action |
| Maintained contact |
