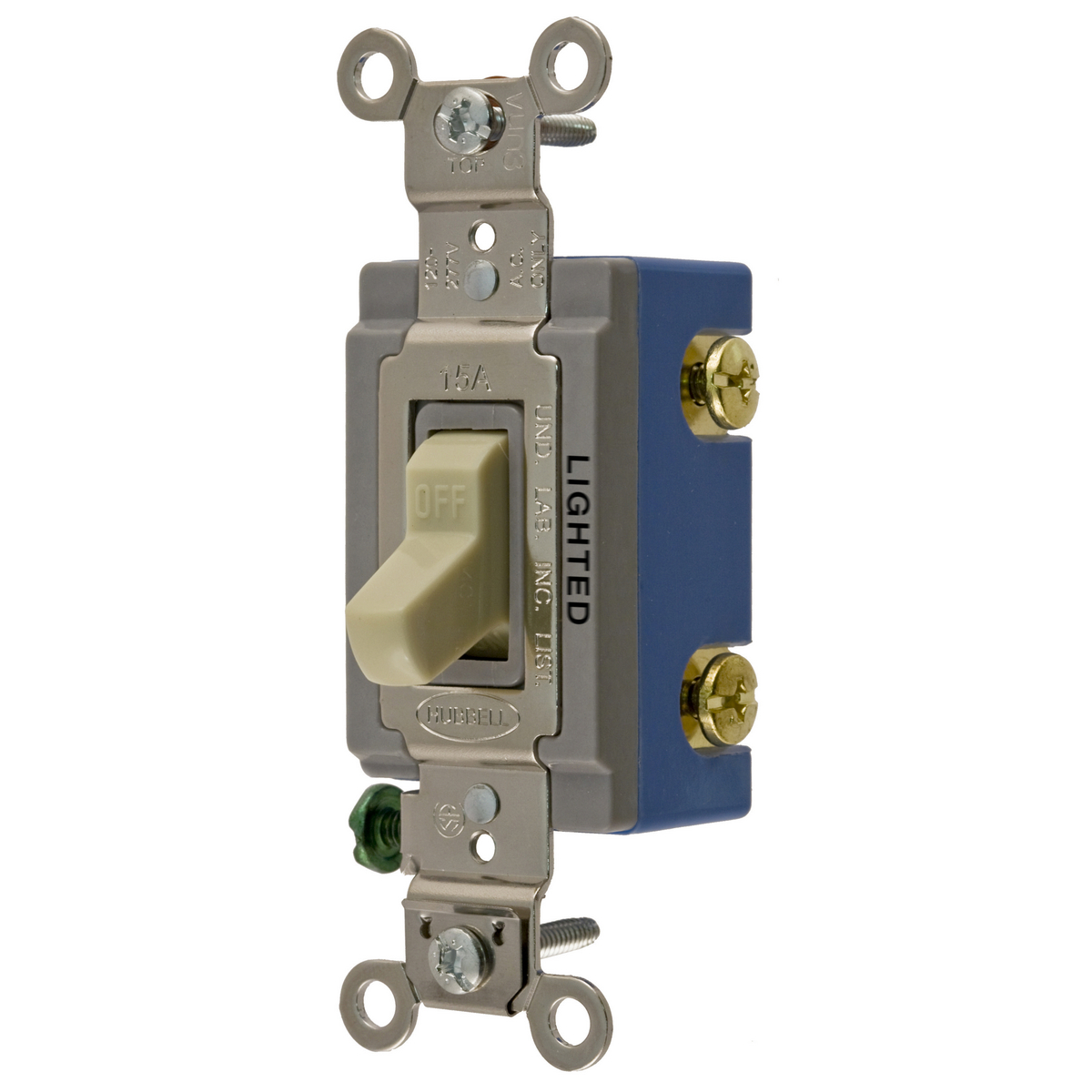

Hubbell Wiring Device-Kellems HBL1201IL SP TOG, IND GRD, 15A
Toggle Switches
27020
MFG #: HBL1201IL
Hubbell Wiring Device-Kellems
44.39000
/ ea
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_KT6AOM1FD925GBUX.pdf(Install Instructions 1 URL)
- Install Instructions URL(Install Instructions URL)
- Line Drawing URL - 11456_39IUFNG7Y28X4RMB.pdf(Line Drawing URL)
- Spec Sheet 1 URL - Wiring_Device_Kellems_HBL1201IL_Datasheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11456_9YLEZIG1UN8HX6MC.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL1201IL_M7158_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Back and Side Wired |
| Illuminated Toggle |
| Large brass binding head screws with deep slots |
| Abuse resistant nylon toggle |
| Strip gauge for accurate wiring |
| 2 position |
| Indoor Dry unless protected by additional means |
| 14 - 10 AWG |
| 1/2 hp at 120 VAC, 1.5 hp at 208 VAC, 2 hp at 240/277 VAC |
| Nylon toggle |
| UL 94-V2 flammability |
| Back and side wire connection |
| 4155 W power |
| Positive snap action |
| Light on with load off |
| Illuminated |
