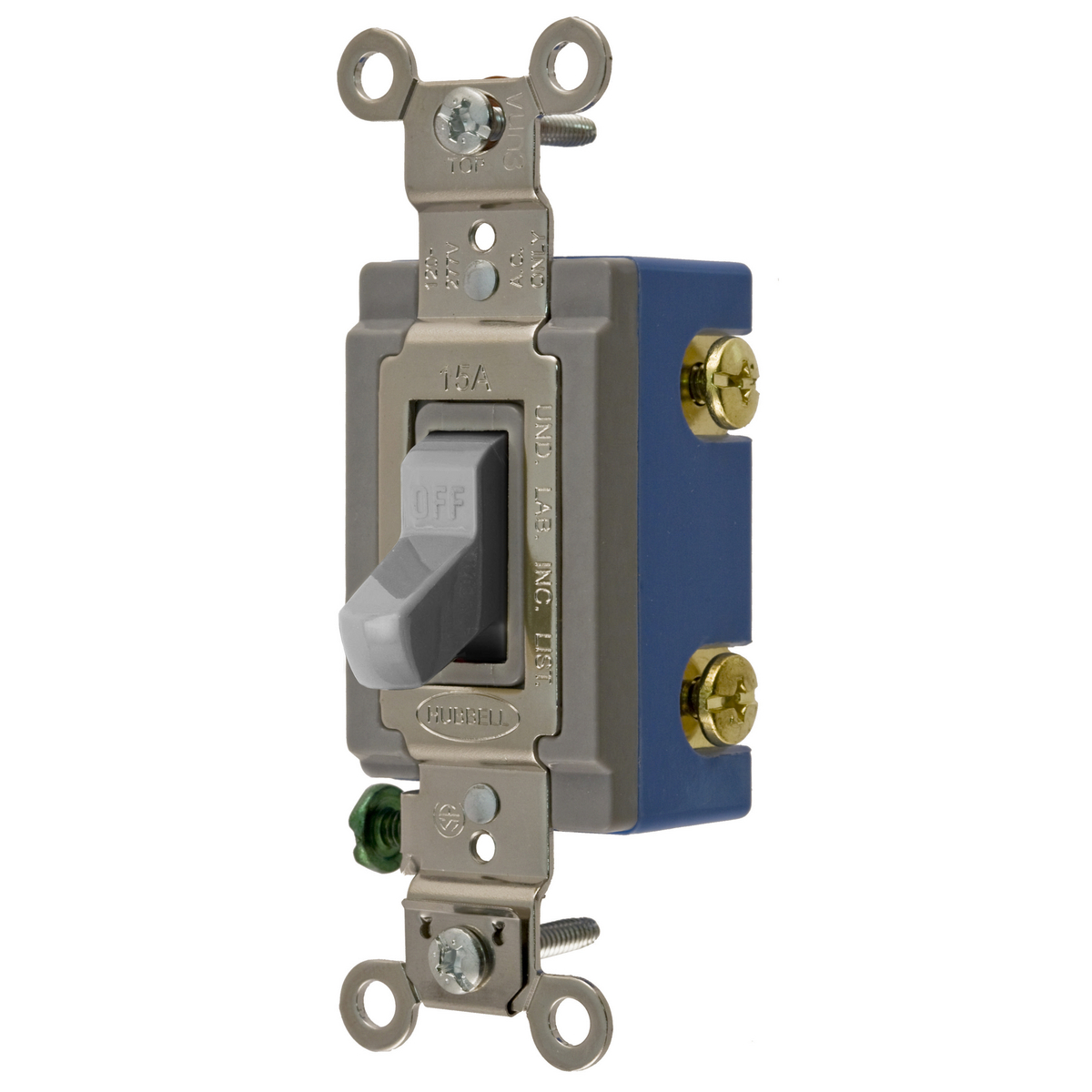

Hubbell Wiring Device-Kellems HBL1201GY Extra Heavy Duty Toggle Switch, 120/277 VAC, 15 A, 1/2/2 hp
Toggle Switches
27018
MFG #: HBL1201GY
Hubbell Wiring Device-Kellems
21.79000
/ ea
Wiring Device-Kellems Toggle Switch, Extra Heavy Duty, 120/277 VAC, 15 A, 1/2/2 hp, 1 Pole, Toggle, Screw Terminal, 50000 Operating Cycles, Thermoset, Gray, Environmental Conditions: -40 to 75 deg C Temperature, 4.06 in H x 1.31 in W x 2.93 in D
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_KT6AOM1FD925GBUX.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD1242_INSTALLINST.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1487179813334.pdf(Install Instructions URL)
- Line Drawing URL - 11456_5Z9M8ESPXJ2RAB7G.pdf(Line Drawing URL)
- Line Drawing URL - WDK_HBL1201_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_OQRJBAZMY6U37TXD.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_HBL1201GY_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - IDW_DOCUMENT_1537666052749.pdf(Tech Drawing URL)
- Tech Drawing URL - WIRING_HBL1201GY_M7157_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
Back and Side Wired |
Standard Product |
Large brass binding head screws with deep slots |
Abuse resistant nylon toggle |
Strip gauge for accurate wiring |
2 position |
Indoor Dry unless protected by additional means |
14 - 10 AWG |
1/2 hp at 120 VAC, 1.5 hp at 208 VAC, 2 hp at 240/277 VAC |
Nylon toggle |
UL 94-V2 flammability |
Back and side wire connection |
4155 W power |
Positive snap action |
