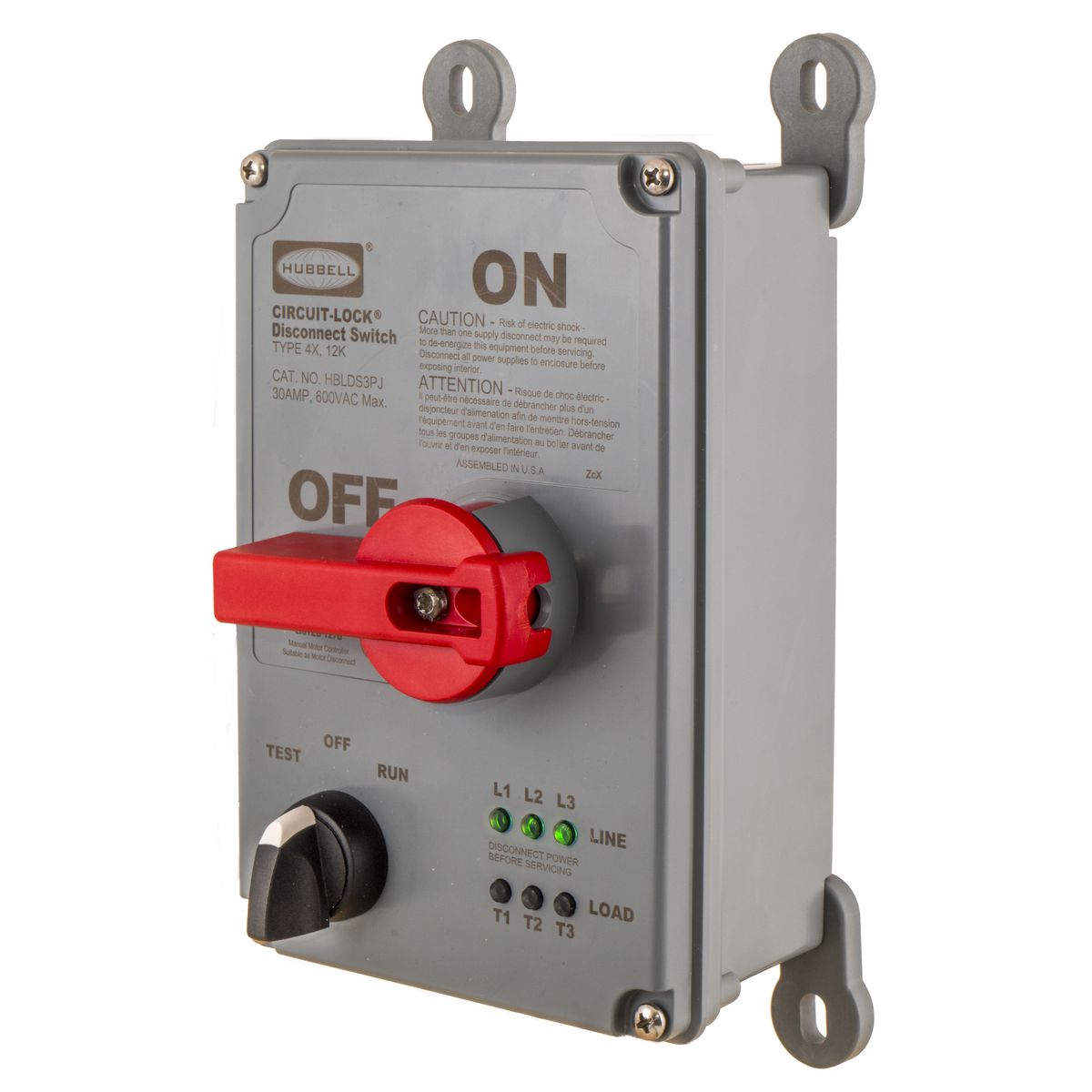

Hubbell Wiring Device-Kellems Circuit-Lock® inSIGHT™ HBLDS3PJ Non-Metallic Standard Unfused Enclosed Disconnect Switch, 600 VAC
Enclosed Rotary Disconnects
1007453
MFG #: HBLDS3PJ
Hubbell Wiring Device-Kellems
759.37000
/ ea
- Catalog URL - Wiring_Device_Kellems_HBLDS10SS_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_4MTRAJQOSPZX79G0.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_6OXQ1YRVAP4W9EU7.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_6E20ZL7BIQDPG8WU.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBLDS3PJ_M13465_ACAD_DRAWING.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/8pDwgaulkSU(Video)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Applications
- Features
| LED Indictor / Jog Switch / Labelless |
| LED Indicators, JOG Capable, NEMA 4X |
| Six highly visible integral phase identification LEDs |
| External LEDs provide secondary means of visual confirmation of make/break on all phases |
| Cover cannot be removed with switch in the "ON" position |
| Highly visible red handle which meets OSHA lockout/tagout capabilities |
| Cost savings by utilizing existing space in the motor disconnect enclosure reducing parts and labor costs |
| Convenience by having point of use control circuit to PLC within line of sight of the motor |
| Added safety by allowing maintenance personnel the functionality to "Try Out" after lockout/tagout |
