Hubbell Wiring Device-Kellems

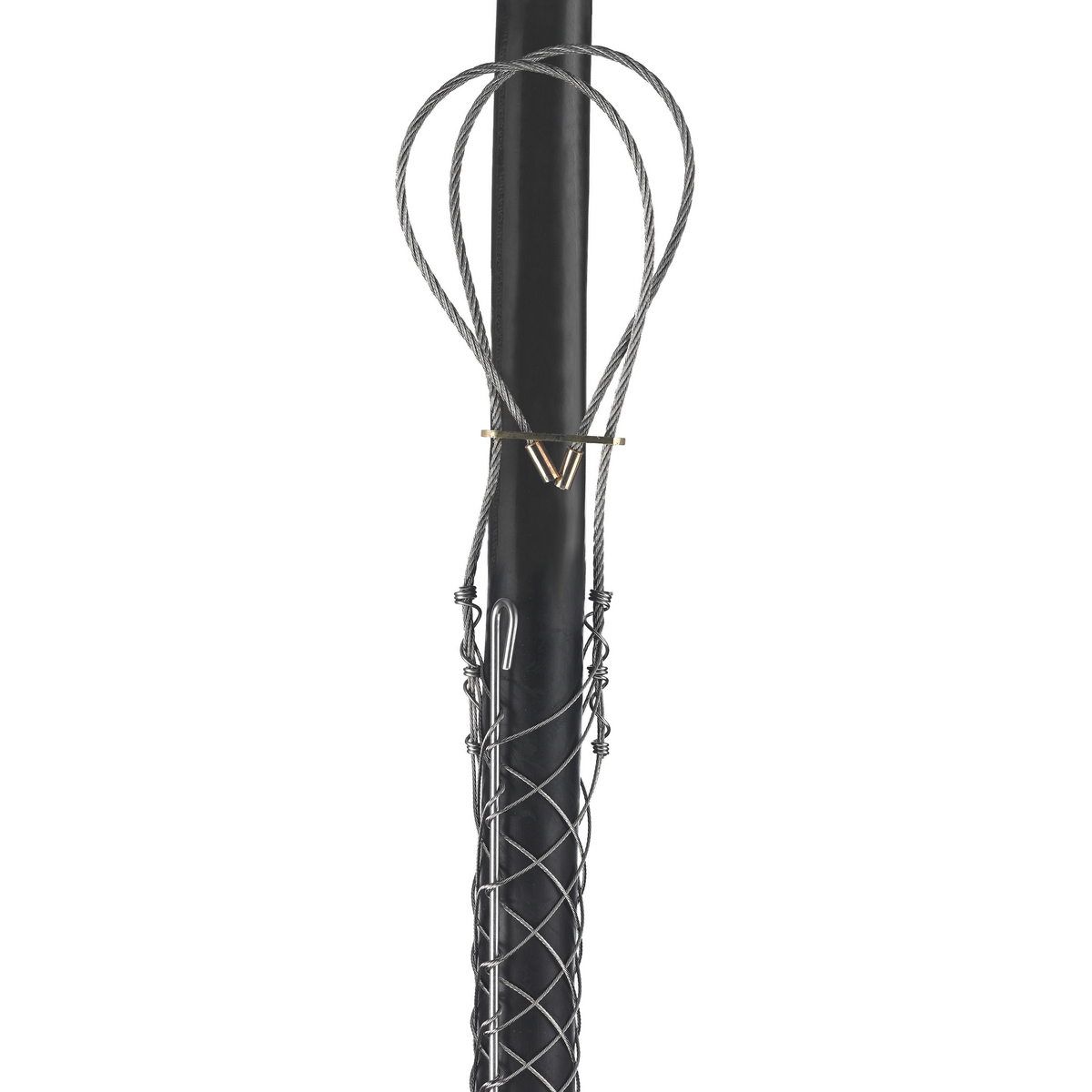

Hubbell Wiring Device-Kellems 02203064 2203064 Rod Closing Split Mesh Standard Duty Universal Eye Woven Support Grip, 790 lb Load
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems 02203064 2203064 Rod Closing Split Mesh Standard Duty Universal Eye Woven Support Grip, 790 lb Load
SKU260269
MFGR #02203064
Your Cost: $87.59/ea
They are used to hold the weight of electrical cable as it hangs in a vertical, sloping or horizontal position. Electrical cable must be supported, or its dead weight can cause excessive strain or pullout at the connections resulting in power failure. Support grips also absorb additional strain from flexure, vibration, expansion and contraction. Kellems support grips listed in this catalog are made of high grade, non-magnetic tin-coated bronze strand. Stainless steel grips, made of alloy 302-304 series stainless are for severe service or unusual environmental conditions. For exceptional immunity to rust and corrosion with superior strength and flexibility for heavy duty support application in harsh environments available upon request.
They are used to hold the weight of electrical cable as it hangs in a vertical, sloping or horizontal position. Electrical cable must be supported, or its dead weight can cause excessive strain or pullout at the connections resulting in power failure. Support grips also absorb additional strain from flexure, vibration, expansion and contraction. Kellems support grips listed in this catalog are made of high grade, non-magnetic tin-coated bronze strand. Stainless steel grips, made of alloy 302-304 series stainless are for severe service or unusual environmental conditions. For exceptional immunity to rust and corrosion with superior strength and flexibility for heavy duty support application in harsh environments available upon request.
Application Universal Eye ARRA Compliant C Breaking Strength 790 lb Buy American Compliant C Catalog Number 02203064 Color Metallic Construction Woven Country of Origin PR Currency USD EU RoHS Indicator Y Finish Tin Plated/Galvanized Gross Weight Per Pack 0.4000 lb Gross Weight per Pack Metric 0.18 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 7419805050 Height 1.00 in Height [Metric] 2.5400 cm Length 26.00 in Length [Metric] 66.0400 cm Mounting Screw Hook or Beam Clamp Returnable N Size Standard Sized Standard CSA Certified Standards CSA Certified, RoHS, ARRA, Buy American Act Compliant Sub Brand Kellems Wire Management Type Universal Eye UNSPSC 39121719 UPC 11 78358530343 UPC 12 783585303437 Width 1.80 in Width [Metric] 4.5720 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Cable Size .50"-.62" (1.27-1.57) in Material Bronze, Tin Coated Mesh Length 8-1/2 in Universal Eye Split Mesh- Rod Closing Strand equalizers position wires for equal loading throughout grip length Eye assemblies provide eye reinforcement at support hardware Endless weave provides easy installation onto cable and can be easily repositioned Solid eye assemblies provide eye reinforcement at support hardware Positions wires for equal loading throughout the entire grip length Strand equalizer positions wires for equal loading throughout the entire grip length 24-1/2 in L grip Rod closing Bronze equalizer, bronze link and lug, stainless steel rod, Mylar tag
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Universal Eye |
| ARRA Compliant | C |
| Breaking Strength | 790 lb |
| Buy American Compliant | C |
| Catalog Number | 02203064 |
| Color | Metallic |
| Construction | Woven |
| Country of Origin | PR |
| Currency | USD |
| EU RoHS Indicator | Y |
| Finish | Tin Plated/Galvanized |
| Gross Weight Per Pack | 0.4000 lb |
| Gross Weight per Pack Metric | 0.18 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 7419805050 |
| Height | 1.00 in |
| Height [Metric] | 2.5400 cm |
| Length | 26.00 in |
| Length [Metric] | 66.0400 cm |
| Mounting | Screw Hook or Beam Clamp |
| Returnable | N |
| Size | Standard Sized |
| Standard | CSA Certified |
| Standards | CSA Certified, RoHS, ARRA, Buy American Act Compliant |
| Sub Brand | Kellems Wire Management |
| Type | Universal Eye |
| UNSPSC | 39121719 |
| UPC 11 | 78358530343 |
| UPC 12 | 783585303437 |
| Width | 1.80 in |
| Width [Metric] | 4.5720 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Cable Size | .50"-.62" (1.27-1.57) in |
| Material | Bronze, Tin Coated |
| Mesh Length | 8-1/2 in |
| Universal Eye |
| Split Mesh- Rod Closing |
| Strand equalizers position wires for equal loading throughout grip length |
| Eye assemblies provide eye reinforcement at support hardware |
| Endless weave provides easy installation onto cable and can be easily repositioned |
| Solid eye assemblies provide eye reinforcement at support hardware |
| Positions wires for equal loading throughout the entire grip length |
| Strand equalizer positions wires for equal loading throughout the entire grip length |
| 24-1/2 in L grip |
| Rod closing |
| Bronze equalizer, bronze link and lug, stainless steel rod, Mylar tag |
