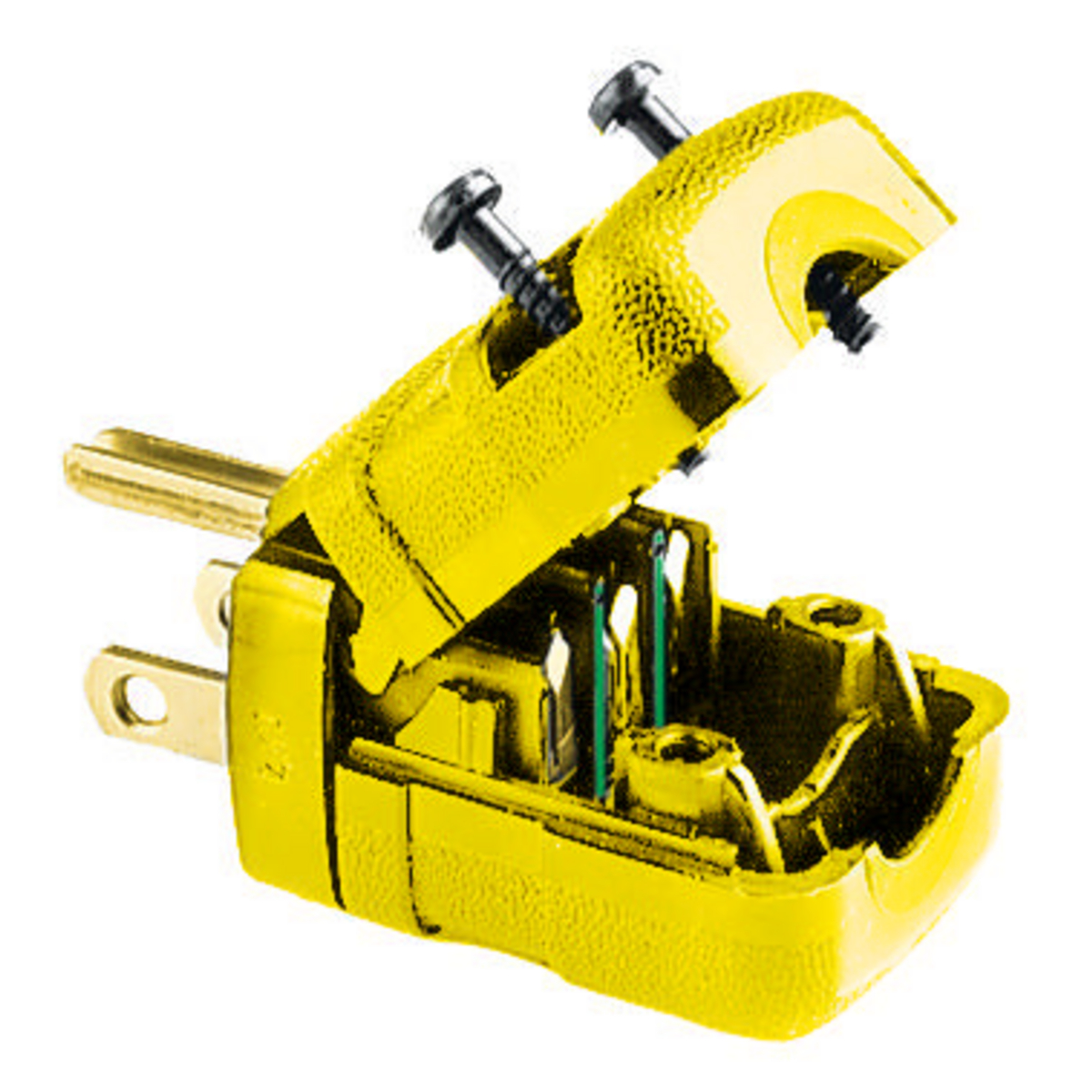

Hubbell® Valise® HBL5966VY Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Straight Blade Plugs
137117
MFG #: HBL5966VY
Hubbell Wiring Device-Kellems
7.54000
/ ea
Hubbell straight blade Valise plugs and connector bodies are ideal for OEMs because their superior performance will help your own products perform better. Valise devices are designed to be easy to wire and quick to assemble. Yet, they provide superior cord gripping, impact- and crush resistance, and a totally insulated body for added safety.
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_0AF7CW62UJKTRYX8.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD1459_INSTALLINST.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537666424954.pdf(Install Instructions URL)
- Spec Sheet URL - 11456_C1OZF0H45T2DP7MK.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_HBL5966VY_spec.pdf(Spec Sheet URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Industrial/Commercial Grade |
| Standard Product |
| Hinged one-piece body design for easy assembly |
| Powerful, off setting cord grips clamp on individual conductors |
| Assembly screws are captive and will not fall out while wiring |
| Noryl (polyphenylene oxide) cord clamp material |
| 0.06 in brass contact blades |
| 0.04 in copper alloy ground contact blade |
| Withstands 2000 VAC dielectric voltage |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise |
| 18 to 16 AWG stranded copper conductor terminal accommodation |
| Ratings are a permanent part of the device product identification |
| UL 94 Hb or better flammability |
