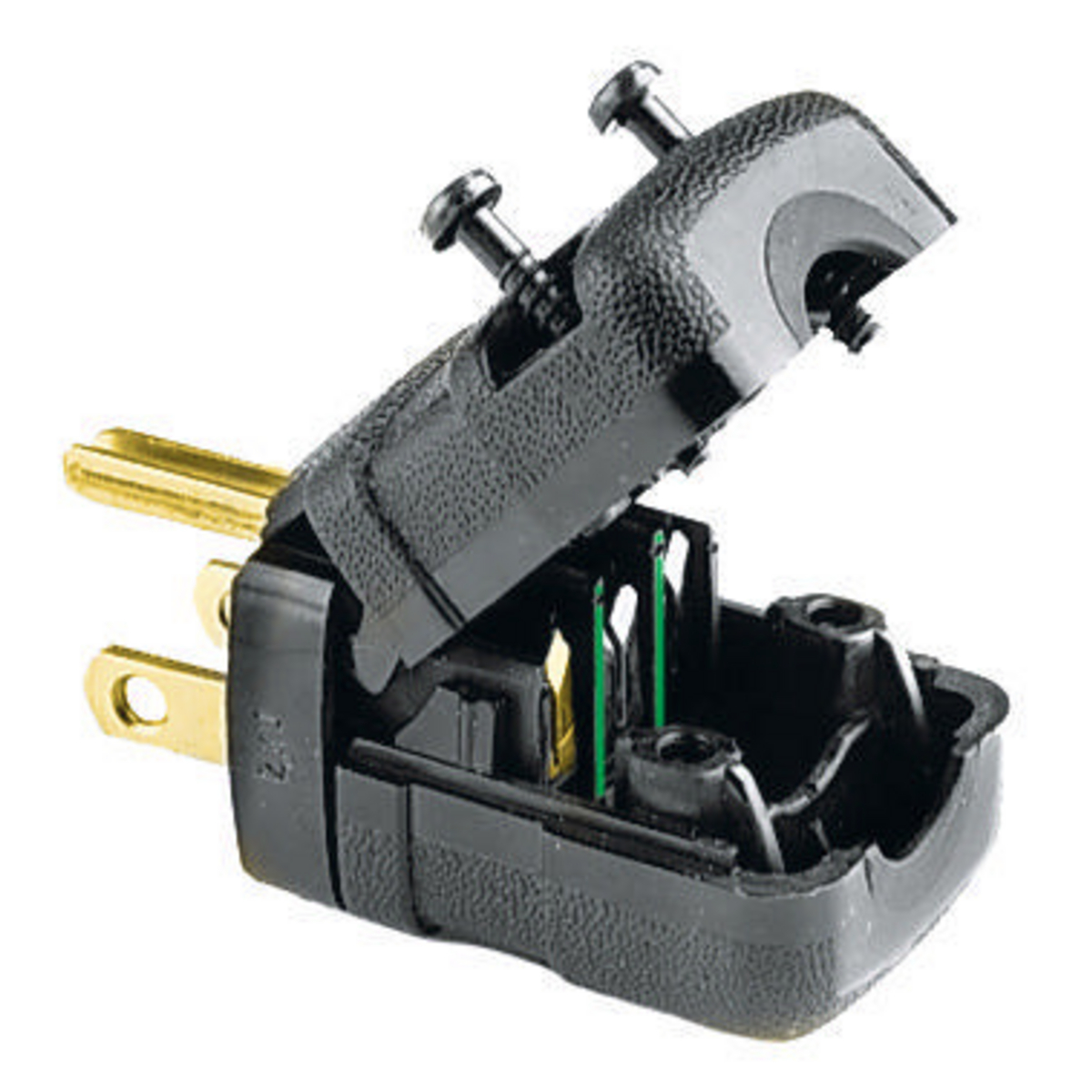

Hubbell® Valise® HBL5966VBLK Angle Style Standard Sized Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Straight Blade Plugs
91443
MFG #: HBL5966VBLK
Hubbell Wiring Device-Kellems
7.54000
/ ea
Have it all with the Valise line of plugs and connector bodies from Hubbell, Inc. With Valise devices, OEMs and Contractors will get the speed, ease and economy they want While being able to offer their customers and end users excellence in performance durability and reliability.
- Catalog URL - HUBBELL_HBL14W47A_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_0AF7CW62UJKTRYX8.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD1459_INSTALLINST.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537666424954.pdf(Install Instructions URL)
- Line Drawing URL - 11456_KBLV1GE9IXDOA0SH.pdf(Line Drawing URL)
- Line Drawing URL - WIRING_M6282_SALESDRAWING.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_ZHK0D8LJI6AG4CVW.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_HBL5966VBLK_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - IDW_DOCUMENT_1537665970229.pdf(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Industrial/Commercial Grade |
| Standard Product |
| Corrosion resistant |
| Grounding plug |
| Cord mounted |
| 18 to 16 AWG solid or stranded copper conductor terminal accommodation |
| Withstands 2000 VAC dielectric voltage |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise |
| Nylon cord clamp, brass contact blade and ground contact blade |
| Removable cord inserts |
| Powerful cord grips prevent conductor slippage and strain on wiring terminals |
| Eight specially designed load bearing locking lugs insure a positive fit as the blade holder and sides are closed |
| Unique, patented clamp type terminals provide superior electrical connection by bundling conductor strands when clamps are tightened |
| Nylon webs are provided to make wiring quick and easy by joining the three sections together during assembly |
| Totally insulated impact and crush resistant nylon body |
| Two captive multiple drive assembly screws |
