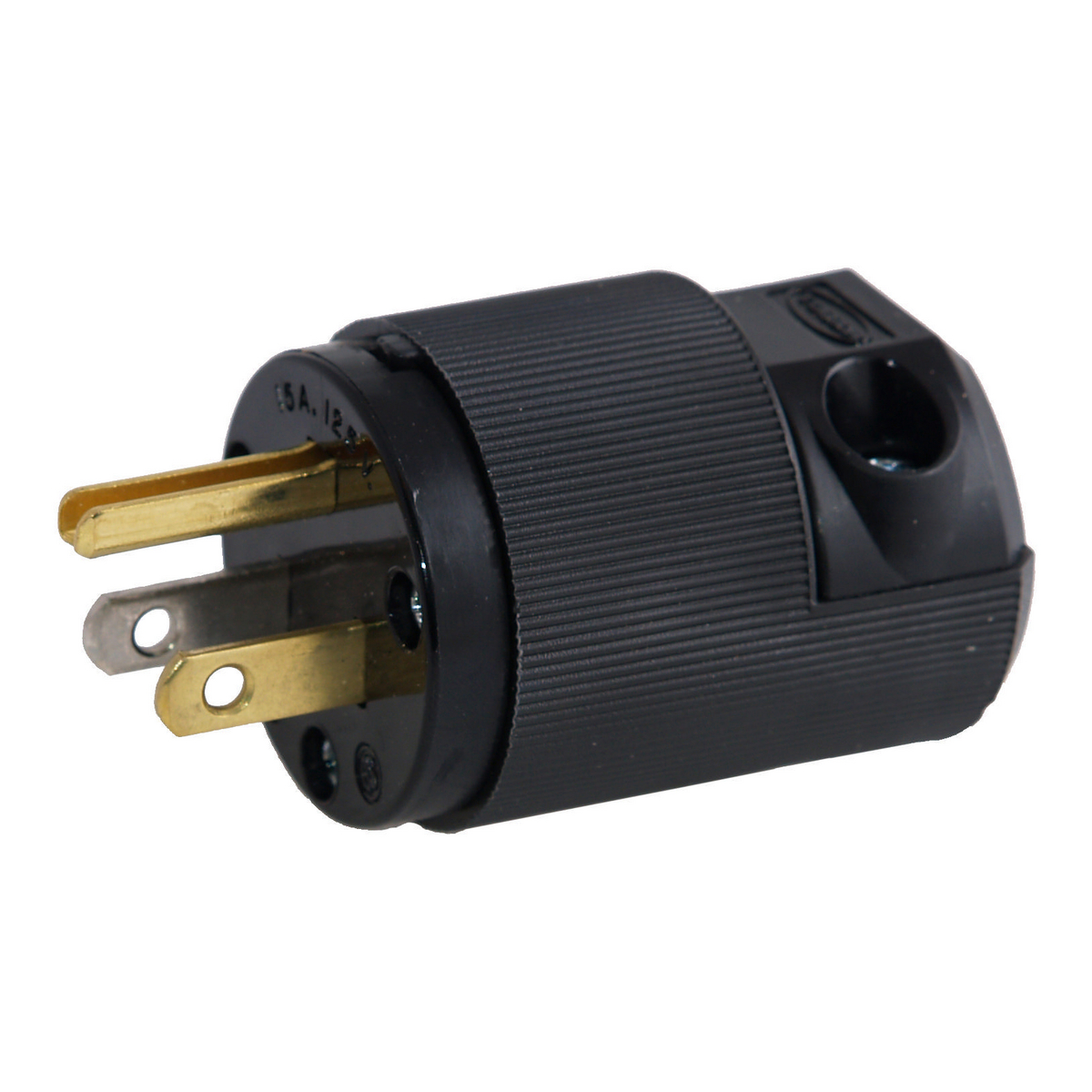

Hubbell® HBL5266EBK Standard Sized Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Straight Blade Plugs
790786
MFG #: HBL5266EBK
Hubbell Wiring Device-Kellems
22.16000
/ ea
Hubbell® Straight Blade Plug, Standard Sized, 125 VAC, 15 A, 0.5 hp, 2 Poles, 3 Wires, NEMA 5-15P, Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Cord Dia, -40 to 75 deg C, Threaded Terminal, Nylon, Black, 1.97 in W x 1.53 in H
- Catalog URL - Wiring_Device_Kellems_HBL1433_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_FSUQ4CTE97YAVRW6.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD2437_INSTALLINST.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537666869115.pdf(Install Instructions URL)
- Line Drawing URL - 11456_JSV15ZN4IFXWRKG3.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_ON4UIFR58T39KBYQ.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL5266EBK_M7149_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Industrial/Commercial Grade |
| Weatherproof Boot |
| Ribbed nylon housing is impact and chemical resistant |
| VARI-SIZE® adjustable cord clamp |
| Fast lead assembly screws |
| Beveled housing prevents snagging |
| Extra large cord clamp |
| Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75% |
| 18 to 10 AWG copper stranded/solid conductor only |
| Grounding plug |
| Withstands 2000 VAC minimum dielectric voltage |
| Grounding plug |
| Withstands 2000 VAC minimum dielectric voltage |
