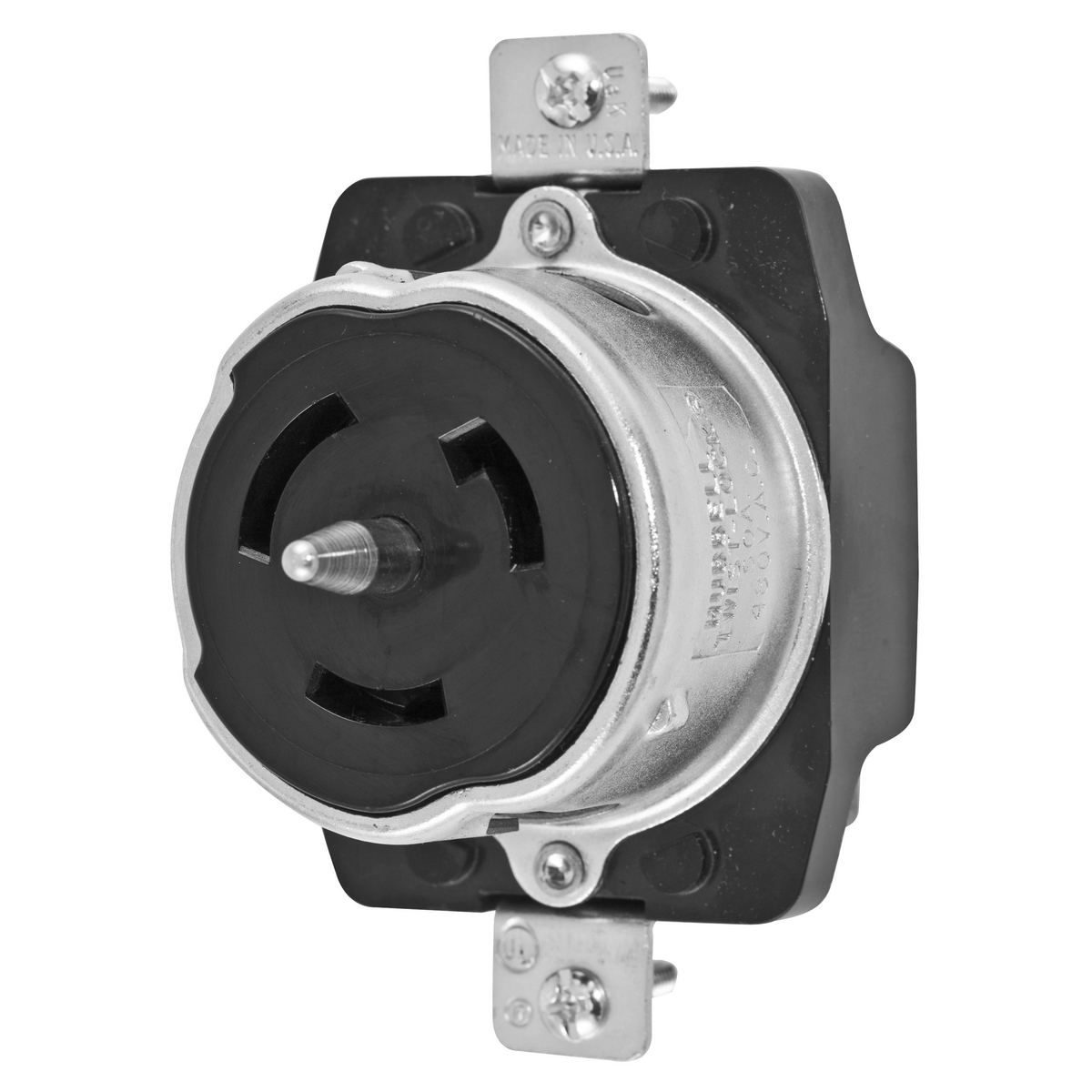

Hubbell® Bryant® Twist-Lock® CS8469 Single Locking Receptacle, 480 VAC, 50 A, 2 Poles, 3 Wires, Black
Locking Devices
27321
MFG #: CS8469
Hubbell Wiring Device-Kellems
147.67000
/ ea
Bryant Electric Twist-Lock® Locking Receptacle, Single, 480 VAC, 50 A, 2 Poles, 3 Wires, Industrial Grade, -40 to 75 deg C, Screw Terminal, Nylon, Black, 2.44 in W x 2.13 in D
- Catalog URL - Wiring_Device_Kellems_HBL2830SW_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_02K1GRE5LITAMYQC.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD1344_PD1346_F1357_INSTALLINST.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_JOSICX18YG09VZUW.pdf(Line Drawing URL)
- Line Drawing URL - WDK_CS8469_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_E9K26WYBCS53GT7Q.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_CS8469_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - IDW_DOCUMENT_1503826045941.pdf(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Heavy Duty Industrial |
| Standard Product |
| Thermoset construction offers high heat resistance |
| Armored housing provides superior impact resistance |
| One piece contacts provide low operating temperatures |
| Steel, zinc plated mounting screw |
| 0.031 in brass ground contact |
| 0.062 in zinc plated steel bridge (mounting strap) |
| Brass rivet |
| Molded in or stamped-on ratings |
| Permanently ink marked on product catalog number |
| Withstands 2000 VAC minimum dielectric voltage |
| Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75% |
| Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification |
| Zinc plated steel pressure screw |
| 0.05 in steel terminal |
| 0.062 in zinc plated steel casings |
| Indoor dry unless protected by additional means |
| Screw mount |
| 10 to 6 AWG wire |
| Non-NEMA rating |
