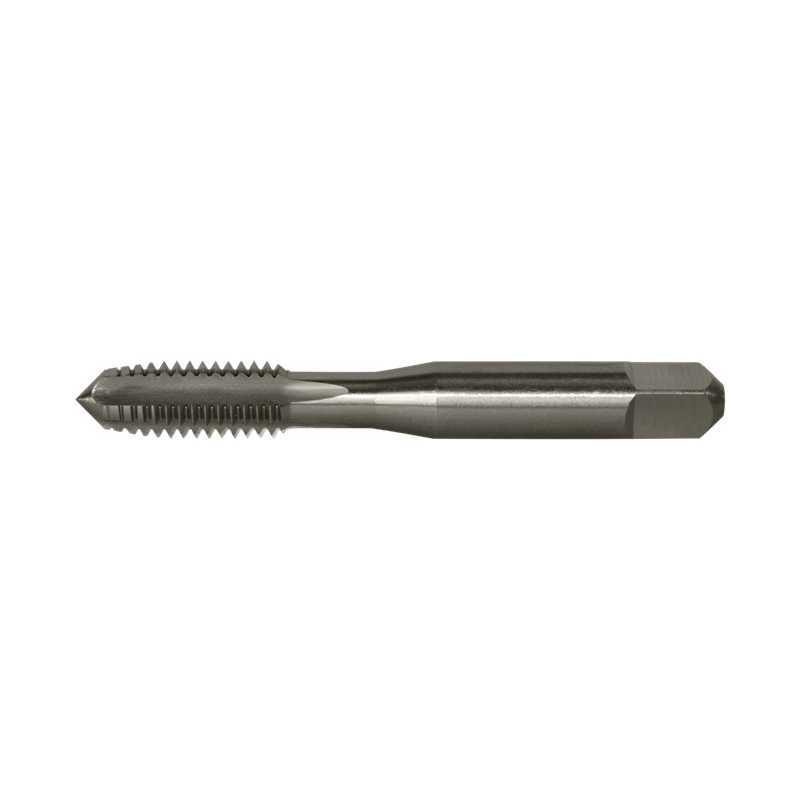

Greenfield Threading™ Vermont Tap and Die® 308192 HTGP General Purpose Standard Straight Flute Hand Tap, Imperial, 43112
Custom_Product_Images_Illustration
Greenfield Threading™ Vermont Tap and Die® 308192 HTGP General Purpose Standard Straight Flute Hand Tap, Imperial, 43112
SKU143532
MFGR #14558
Your Cost: $73.66/ea
List: Greenfield Threading Vermont Tap and Die® Straight Flute Hand Tap, General Purpose Standard, Series: HTGP, Measurement System: Imperial, 1-12, UNF, Plug Chamfer, 4 Flutes, HSS, Bright, Class of Fit: 2B, Right Hand Cutting, 2-1/2 in Thread Length, 5-1/8 in Overall Length, 0.8 in Shank Dia
Greenfield Threading Vermont Tap and Die® Straight Flute Hand Tap, General Purpose Standard, Series: HTGP, Measurement System: Imperial, 1-12, UNF, Plug Chamfer, 4 Flutes, HSS, Bright, Class of Fit: 2B, Right Hand Cutting, 2-1/2 in Thread Length, 5-1/8 in Overall Length, 0.8 in Shank Dia
Alternate Catalog Number 14558 Catalog Number 14558 Class of Fit 2B Country of Origin US Finish|Coating Bright Gross Weight Per Pack 1 lb Measurement System Imperial Overall Length 5-1/8 in Series HTGP Shank Diameter 0.8 in Standards USCTI 302A Thread Length 2-1/2 in Thread Standard Ground/UNF Type General Purpose Standard UPC 11 66235514558 UPC 12 66235514558 Stock Status NONSTOCK Brand Greenfield Threading Manufacturer Greenfield Industries Chamfer Type Plug Cutting Direction Right Hand Material HSS Material Application Cast Iron, Steel, Stainless Steel and Non-Ferrous Materials Number of Flutes 4 Thread Limit H4 Thread Size 1-12 Ground thread for economical tapping Straight with square shank configuration Applicable on cast iron, steel, stainless steel and non-ferrous materials 13/16 in shank square length 2XD tap drill size 0.6 in square size H4 thread limit 3.5P-5P chamfer H4 thread limit
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 14558 |
| Catalog Number | 14558 |
| Class of Fit | 2B |
| Country of Origin | US |
| Finish|Coating | Bright |
| Gross Weight Per Pack | 1 lb |
| Measurement System | Imperial |
| Overall Length | 5-1/8 in |
| Series | HTGP |
| Shank Diameter | 0.8 in |
| Standards | USCTI 302A |
| Thread Length | 2-1/2 in |
| Thread Standard | Ground/UNF |
| Type | General Purpose Standard |
| UPC 11 | 66235514558 |
| UPC 12 | 66235514558 |
| Stock Status | NONSTOCK |
| Brand | Greenfield Threading |
| Manufacturer | Greenfield Industries |
| Chamfer Type | Plug |
| Cutting Direction | Right Hand |
| Material | HSS |
| Material Application | Cast Iron, Steel, Stainless Steel and Non-Ferrous Materials |
| Number of Flutes | 4 |
| Thread Limit | H4 |
| Thread Size | 1-12 |
| Ground thread for economical tapping |
| Straight with square shank configuration |
| Applicable on cast iron, steel, stainless steel and non-ferrous materials |
| 13/16 in shank square length |
| 2XD tap drill size |
| 0.6 in square size |
| H4 thread limit |
| 3.5P-5P chamfer |
| H4 thread limit |
