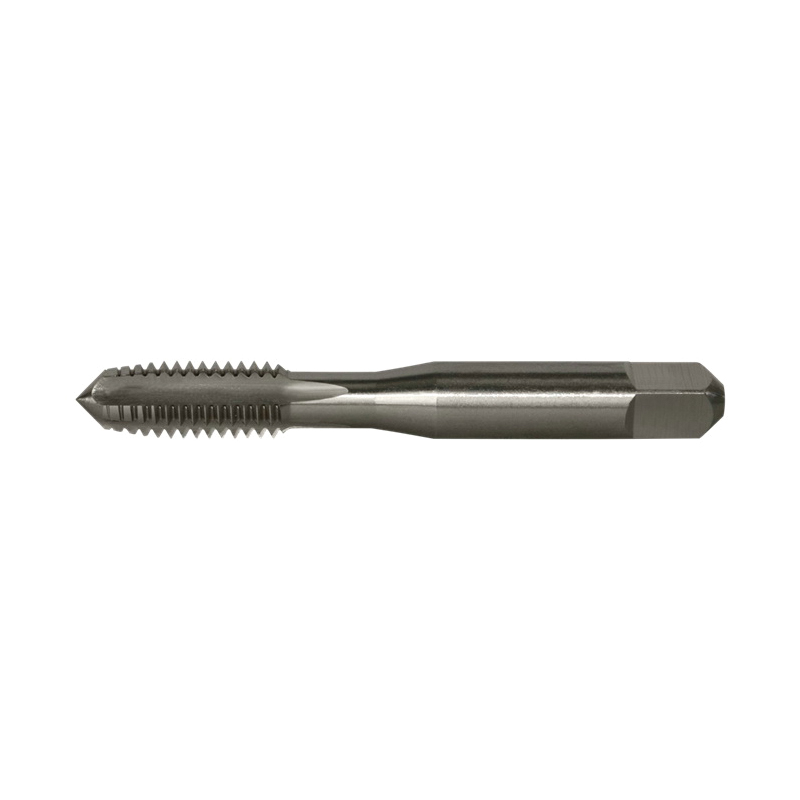

Greenfield Threading™ Vermont Tap and Die® 306949 HTGP General Purpose Standard Straight Flute Tap, Imperial, 40671, UNC
Straight Flute Taps
12416
MFG #: 306949
Greenfield Threading
32.43000
/ ea
Greenfield Threading Vermont Tap and Die® Straight Flute Tap, General Purpose Standard, Series: HTGP, Measurement System: Imperial, 5/8-11, UNC, Bottoming Chamfer, 4 Flutes, HSS, Bright, Class of Fit: 2B, Right Hand Cutting, 1.09 in Thread Length, 3.81 in Overall Length, 0.48 in Shank Dia
- Features
| Ground thread for economical tapping |
| Straight with square shank configuration |
| Applicable on cast iron, steel, stainless steel and non-ferrous materials |
| 9/16 in shank square length |
| 2XD tap drill size |
| 0.36 in square size |
| H3 thread limit |
| Coolant flood |
| 1P-2P chamfer |
| H3 thread limit |
