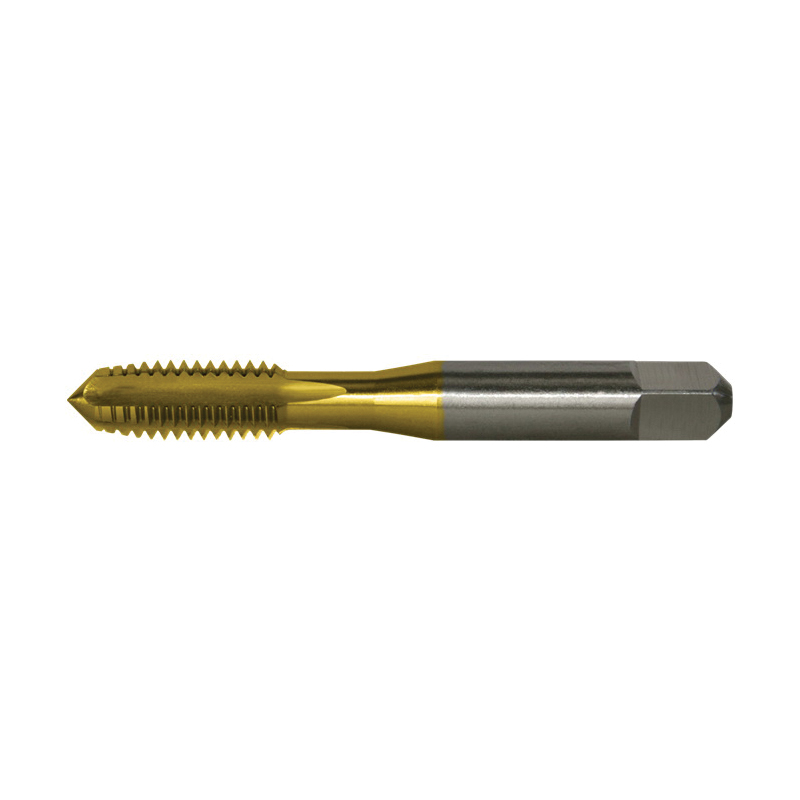

Greenfield Threading™ 307471 Vermont Tap and Die® HTGP-TN General Purpose Standard Straight Flute Hand Tap, Imperial, 3/4-16
Custom_Product_Images_Illustration
Greenfield Threading™ 307471 Vermont Tap and Die® HTGP-TN General Purpose Standard Straight Flute Hand Tap, Imperial, 3/4-16
SKU561292
MFGR #19337
Your Cost: $45.70/ea
List: Greenfield Threading Vermont Tap and Die® Straight Flute Hand Tap, General Purpose Standard, Series: HTGP-TN, Measurement System: Imperial, 3/4-16, UNF, Plug Chamfer, 4 Flutes, HSS, TiN Coated, Class of Fit: 2B, Right Hand Cutting, 2 in Thread Length, 4-1/4 in Overall Length, 0.59 in Shank Dia
Greenfield Threading Vermont Tap and Die® Straight Flute Hand Tap, General Purpose Standard, Series: HTGP-TN, Measurement System: Imperial, 3/4-16, UNF, Plug Chamfer, 4 Flutes, HSS, TiN Coated, Class of Fit: 2B, Right Hand Cutting, 2 in Thread Length, 4-1/4 in Overall Length, 0.59 in Shank Dia
Alternate Catalog Number 19337 Catalog Number 19337 Class of Fit 2B/3B Country of Origin US Finish Coating TiN Coated Gross Weight Per Pack 1 lb Measurement System Imperial Overall Length 4-1/4 in Series 5303/2303 Shank Diameter 0.59 in Size 3/4-16 Standards USCTI 302A Thread Length 2 in Thread Standard UNF Type GENERAL PURPOSE UPC 11 66235519337 UPC 12 66235519337 Stock Status NONSTOCK Brand Greenfield Threading Manufacturer Greenfield Industries Chamfer Type Plug Cutting Direction Right Hand Material HSS Number of Flutes 4 Ground thread for economical tapping Straight with square shank configuration Applicable on cast iron, steel and stainless steel 11/16 in shank square length 2XD tap drill size 0.442 in square size H3 thread limit Coolant flood 3.5P-5P chamfer H3 thread limit
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 19337 |
| Catalog Number | 19337 |
| Class of Fit | 2B/3B |
| Country of Origin | US |
| Finish Coating | TiN Coated |
| Gross Weight Per Pack | 1 lb |
| Measurement System | Imperial |
| Overall Length | 4-1/4 in |
| Series | 5303/2303 |
| Shank Diameter | 0.59 in |
| Size | 3/4-16 |
| Standards | USCTI 302A |
| Thread Length | 2 in |
| Thread Standard | UNF |
| Type | GENERAL PURPOSE |
| UPC 11 | 66235519337 |
| UPC 12 | 66235519337 |
| Stock Status | NONSTOCK |
| Brand | Greenfield Threading |
| Manufacturer | Greenfield Industries |
| Chamfer Type | Plug |
| Cutting Direction | Right Hand |
| Material | HSS |
| Number of Flutes | 4 |
| Ground thread for economical tapping |
| Straight with square shank configuration |
| Applicable on cast iron, steel and stainless steel |
| 11/16 in shank square length |
| 2XD tap drill size |
| 0.442 in square size |
| H3 thread limit |
| Coolant flood |
| 3.5P-5P chamfer |
| H3 thread limit |
