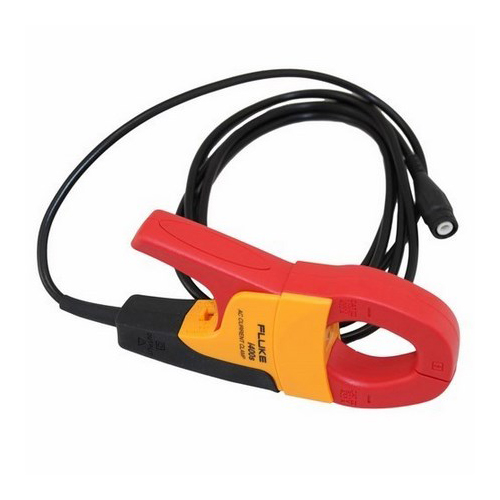

Fluke® I400S AC Clamp-On Current Probe, 1000 VAC 400 A, 1.2 in Jaw
Custom_Product_Images_Illustration
Fluke® I400S AC Clamp-On Current Probe, 1000 VAC 400 A, 1.2 in Jaw
SKU233325
MFGR #I400S
Your Cost: $364.99/ea
List: Fluke current clamps extend the current ranges of digital multimeters, power quality analyzers, and portable oscilloscopes and are available for both AC and AC/DC environments. The Fluke i400s is specially designed to offer maximum utility in a compact shape and is the only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating.
Fluke current clamps extend the current ranges of digital multimeters, power quality analyzers, and portable oscilloscopes and are available for both AC and AC/DC environments. The Fluke i400s is specially designed to offer maximum utility in a compact shape and is the only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating.
AC Current Accuracy 2% + 0.015 A, 2% + 0.04 A AC Response 5 Hz/10 kHz Alternate Catalog Number 2277202 Amperage Rating 1k A Application Measure current in conjunction with your scope or power quality meter ARRA Compliant C Buy American Compliant C Catalog Number I400S Color Red/Yellow/Black Country of Origin TW Currency USD Dimensions 1.25 in Dia x 12.91 in L Enclosure Hard Plastic EU RoHS Indicator U Gross Weight Per Pack 1.2300 lb Gross Weight per Pack Metric 0.56 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9030330040 Height 2.17 in Height [Metric] 5.5118 cm Length 12.83 in Length [Metric] 32.5882 cm Material Plastic Measuring Range 0.5 A - 400 A Model Fluke i400s Operating Temperature 0 to 50 °F Safety Rating CAT IV 600 V, CAT III, 1000 V Standard CAT IV 600 V, CAT III, 1000 V Standards ARRA CompliantBuy American Act CompliantECCN EAR99PROP65: This product is in compliance with PROP65; it is not known to contain any chemicals associated with this regulation Type Current Clamp UNSPSC 41113601 UPC 11 09596926858 UPC 12 095969268585 Width 6.97 in Width [Metric] 17.7038 cm Stock Status NONSTOCK Brand Fluke® Manufacturer Fluke Corporation Electrical Ratings 1000 VAC, 1000 A, 0.5 to 400 A Measuring Range Jaw Capacity 1.2 in Measure current in conjunction with your scope or power quality meter Companion to your scope or power quality meter to measure up to 400 A AC Only current clamp available with a CAT IV 600 V/Cat III 1000 V safety rating Specially designed to offer maximum utility in a compact shape Take accurate current readings without breaking the circuit Soft non-slippery over mold handle Optional PM9081/001 BNC/banana adapter for DMM's 40 A and 400 A, 10 and 1 mV/A output two ranges 32 mm Dia maximum conductor 2.5 m L output cable BNC adapter
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| AC Current Accuracy | 2% + 0.015 A, 2% + 0.04 A |
| AC Response | 5 Hz/10 kHz |
| Alternate Catalog Number | 2277202 |
| Amperage Rating | 1k A |
| Application | Measure current in conjunction with your scope or power quality meter |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | I400S |
| Color | Red/Yellow/Black |
| Country of Origin | TW |
| Currency | USD |
| Dimensions | 1.25 in Dia x 12.91 in L |
| Enclosure | Hard Plastic |
| EU RoHS Indicator | U |
| Gross Weight Per Pack | 1.2300 lb |
| Gross Weight per Pack Metric | 0.56 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9030330040 |
| Height | 2.17 in |
| Height [Metric] | 5.5118 cm |
| Length | 12.83 in |
| Length [Metric] | 32.5882 cm |
| Material | Plastic |
| Measuring Range | 0.5 A - 400 A |
| Model | Fluke i400s |
| Operating Temperature | 0 to 50 °F |
| Safety Rating | CAT IV 600 V, CAT III, 1000 V |
| Standard | CAT IV 600 V, CAT III, 1000 V |
| Standards | ARRA CompliantBuy American Act CompliantECCN EAR99PROP65: This product is in compliance with PROP65; it is not known to contain any chemicals associated with this regulation |
| Type | Current Clamp |
| UNSPSC | 41113601 |
| UPC 11 | 09596926858 |
| UPC 12 | 095969268585 |
| Width | 6.97 in |
| Width [Metric] | 17.7038 cm |
| Stock Status | NONSTOCK |
| Brand | Fluke® |
| Manufacturer | Fluke Corporation |
| Electrical Ratings | 1000 VAC, 1000 A, 0.5 to 400 A Measuring Range |
| Jaw Capacity | 1.2 in |
| Measure current in conjunction with your scope or power quality meter |
| Companion to your scope or power quality meter to measure up to 400 A AC |
| Only current clamp available with a CAT IV 600 V/Cat III 1000 V safety rating |
| Specially designed to offer maximum utility in a compact shape |
| Take accurate current readings without breaking the circuit |
| Soft non-slippery over mold handle |
| Optional PM9081/001 BNC/banana adapter for DMM's |
| 40 A and 400 A, 10 and 1 mV/A output two ranges |
| 32 mm Dia maximum conductor |
| 2.5 m L output cable |
| BNC adapter |
