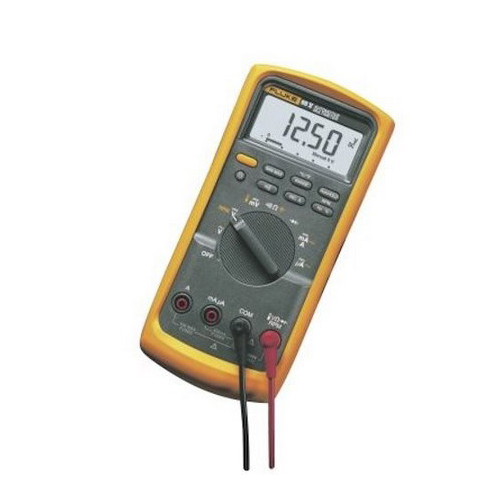

V Deluxe Automotive Multimeter, Model: 88 Series, Voltage Rating: 1000 VDC/VAC, Amperage Rating: 10 AMP, Frequency Rating: 200 KHZ, Resistance: 50 MOHM, Capacitance: 9999 MFD, Accuracy: Plus/Minus (0.1 PCT Plus 1) DC Voltage, Plus/Minus (0.5 PC Plus 2) AC Voltage, Plus/Minus (0.4 PCT Plus 2) DC Current, Plus/Minus (1.2 PCT Plus 2) DC Current, Plus/Minus (0.4 PCT Plus 1) Resistance, Plus/Minus (1 PCT Plus 2) Capacitance, Plus/Minus (0.005 PCT Plus 1) Frequency, 2 PCT per KHZ Plus 0.1 PCT Duty Cycle, Plus/Minus (1.0 PCT Plus 10) Conductance, Display: Large, Temperature Rating: Operating: -20 To 55 DEG C, Storage: -40 To 60 DEG C, Diode Test: Yes, Dimensions: 2.06 IN Depth X 3.86 IN Width X 7.93 IN Length, Duty Cycle: 99.9 PCT, Temperature Measurement: -200 To 1090 DEG C, 1.0 PCT Excluding Probe, Conductance: 60 NS, UL Listed, C/US CSA Certified, CE Certified, N10140
- Brochure URL - 11095_BRO_3272127-6116-eng-c-w.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_2f1edfd2e686ce7b17ddd7170d25fd5e4bec9a6b1f4e27263ecb3a4c82e711ab.pdf(Catalog URL)
- Owners Manual URL - 11095_MV42FRCIJXA6ZN7L.pdf(Owners Manual URL)
- Video - http://download.fluke.com/demo-DMM/80_series_V_demo.html(Video)
- Spec Sheet URL - 11095_SPE_2563729_6116_eng_a_w.pdf(Spec Sheet URL)
- http://www.fluke.com(Seller Home Page URL)
- Warranty URL - 11095_WAR_FLUKE_Warranties_2014.pdf(Warranty URL)
- Features
| Resistance, continuity and diode test; Millisecond pulse width measurements for fuel injectors; 4-1/2 digits for precise measurements; RPM measurements with optional inductive pickup; Temperature measurements with optional temperature probe; Optional magnetic hanger allows meter to attach to the vehicle and free your hands for other tasks; Minimum/maximum/average recording with minimum/maximum alert to capture variations automatically; Peak minimum/maximum to record transients as fast as 250 MICSEC; Relative mode to remove test lead resistance from low ohms measurements; Auto and manual ranging for maximum flexibility; Autohold to capture stable readings with only one touch of the leads; Large display digits and two-level bright white backlight for increased visibility; Analog bargraph to track changing or unstable signals; Input alert provides audible warning against wrong use of input jacks; Access door for fast battery changes without opening up the case; Classic design that fits your hand with new removable holster, built-in test lead and probe storage; 10 MOHM input impedance won’t damage computer circuits; Includes: fluke 88 V digital multimeter, high-impact holster, test leads |
| 50 Ohm resistance |
| Resistance, continuity and diode test |
| Millisecond pulse Width measurements for fuel injectors |
| 4-1/2 digits for precise measurements, rpm measurements with optional inductive pickup |
| Temperature measurements with optional temperature probe, optional magnetic hanger allows meter to attach to the vehicle and free your hands for other tasks |
| Minimum maximum/average recording with minimum maximum alert to capture variations automatically |
| Peak minimum maximum to record transients as fast as 250 MICSEC |
| Relative mode to remove test lead resistance from low Ohm measurements |
| Auto and manual ranging for maximum flexibility |
| Autohold to capture stable readings with only one touch of the leads |
| Large display digits and two-level bright white backlight for increased visibility |
| Analog bargraph to track changing or unstable signals |
| Input alert provides audible warning against wrong use of input jacks |
| Access door for fast battery changes without opening up the case |
| Classic design that fits your hand with new removable holster, built-in test lead and probe storage |
| 10 MOhm input impedance won™ damage computer circuits |
| +/-(0.1% +1) DC voltage, +/-(0.5 PC +2) AC voltage, +/-(0.4% +2) DC current, +/-(1.2% +2) DC current, +/-(0.4% +1) resistance, +/-(1% +2) capacitance, +/-(0.005% +1) frequency, 2% per kHz +0.1% duty cycle, +/-(1.0% +10) conductance |
