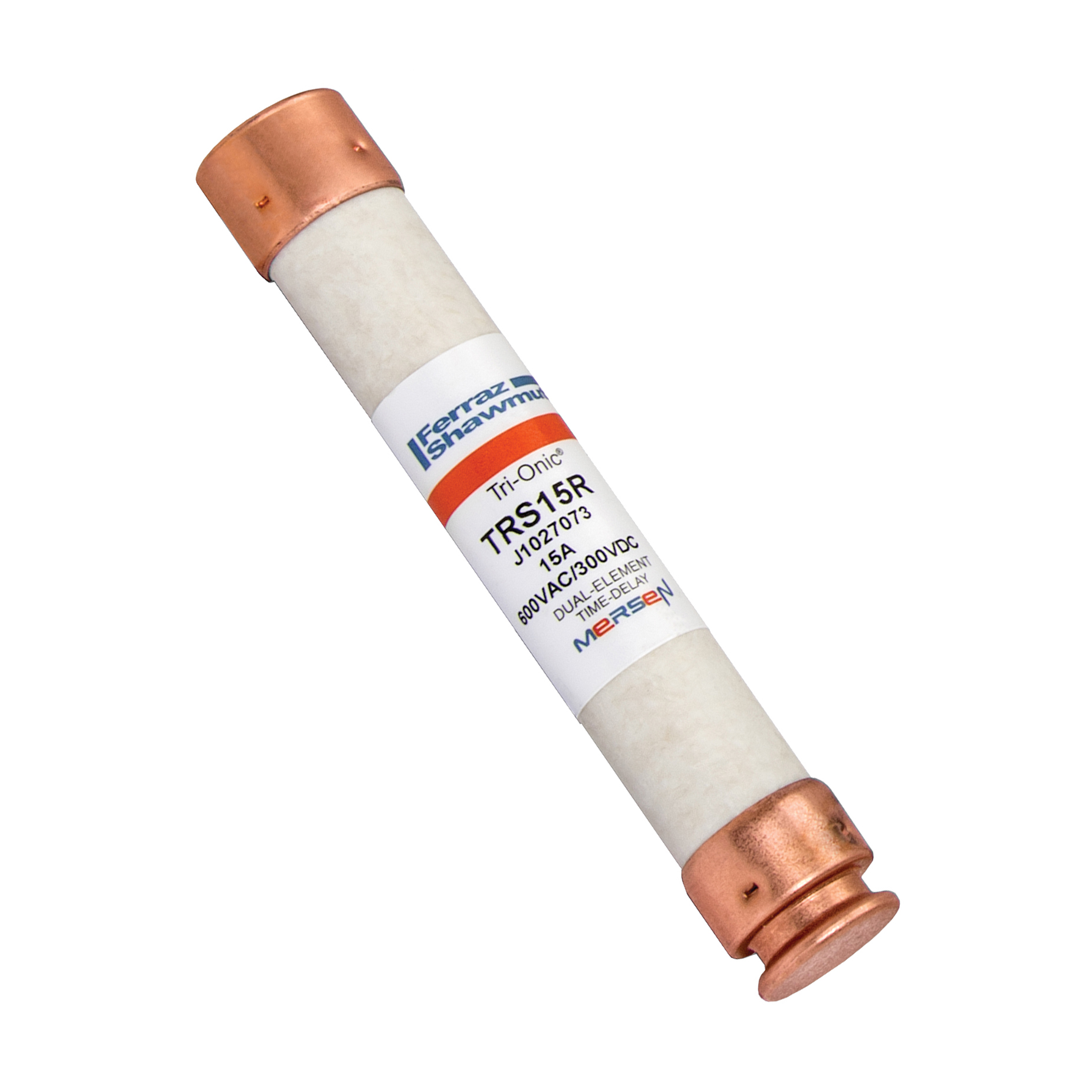

Ferraz Shawmut TRS15R Tri-Onic® TRS-R Time Delay Fuse, 15 A, 600 VAC/300 VDC, 200 kA at 600 VAC/20 kA at 300 VDC Interrupt
Class RK5 Fuses
19961
MFG #: TRS15R
Ferraz Shawmut
25.42000
/ ea
Ferraz Shawmut Tri-Onic® Time Delay Fuse, Series: TRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 15 A, 600 VAC/300 VDC, 200 kA at 600 VAC/20 kA at 300 VDC Interrupt, Class: RK5, Ferrule Terminal, Cylindrical Body, Dual Element, Polyester Coated, 13/16 in Dia x 2 in L Body Size
- Application GDE 1 URL - Ferraz_Shawmut_TR1_10R_Application_Guide_1.pdf(Application GDE 1 URL)
- Application GDE URL - Ferraz_Shawmut_TR1_10R_Application_Guide.pdf(Application GDE URL)
- http://www.ep-us.mersen.com(Seller Home Page URL)
- Brochure URL - 243(Brochure URL)
- Spec Sheet URL - 11450_DS-TR-R-TRS-R-Class-RK5-Time-Delay-Mersen-B.pdf(Spec Sheet URL)
- Line Drawing URL - 11450_GEA12X0H95ZS6FUP.pdf(Line Drawing URL)
- Spec Sheet URL - DS-TR-R-TRS-R-Class-RK5-Time-Delay-Mersen-B.pdf(Spec Sheet URL)
- Spec Sheet URL - 11450_K6PR4AXLHQ1Y0SZJ.pdf(Spec Sheet URL)
- Spec Sheet URL - 11450_Z7GIND02T8ESARCV.pdf(Spec Sheet URL)
- Applications
- Features
| Motor Circuits Mains Feeders Branch Circuits Transformers Service Entrance Equipment General-Purpose Equipment |
| Optional solid-state SmartSpot indicator Time-delay for motor start-ups and transformer inrush currents without nuisance opening Current-limiting for low peak let-thru current Rejection-style design prevents replacement errors (when used with recommended fuse block) |
| DC rated for mine duty and other long time-constant applications |
| Time-delay for motor start-ups and high inrush loads without nuisance opening |
| Direct Replacement For Mars 81134, Bussmann ECSR15/FRS-R15, Mersen TRS15R |
