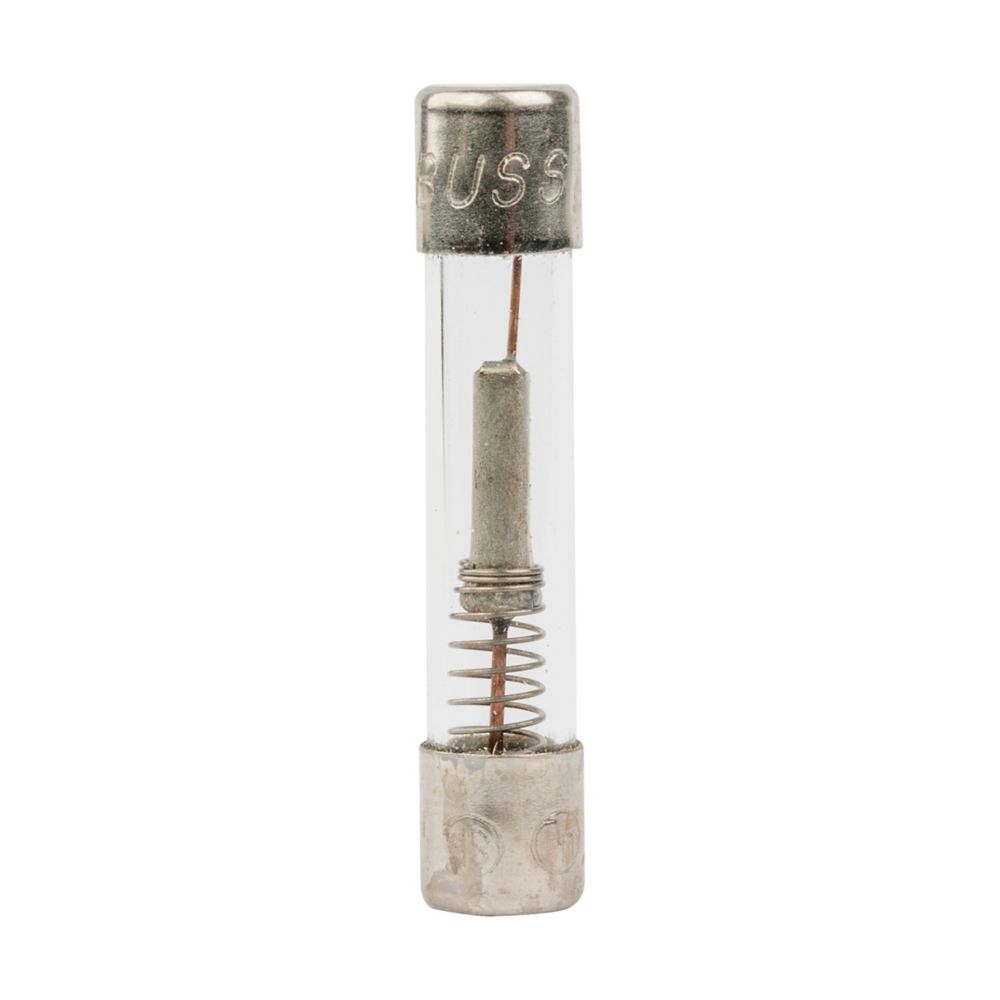

Edison MDL-30 MDL Time Delay Electronic Fuse, 30 A, 32 VAC, 1 kA, Cylindrical Body
Custom_Product_Images_Illustration
Edison MDL-30 MDL Time Delay Electronic Fuse, 30 A, 32 VAC, 1 kA, Cylindrical Body
SKU5540
MFGR #MDL-30
Your Cost: $15.03/ea
List: World's leading supplier of fuses and fusible protection systems, Bussmann continues its 88-year history of blazing new trails of innovative technologies. Maker of the industry's first truly global product line, each item is backed by an efficient worldwide network of distribution, customer service and technical support. Bussmann products include the most extensive circuit protection solutions approved for use in a variety of major standards: UL, CSA, IEC. . . Not to mention both European (DIN, British Standard) and North American styled fuses for a wide range of applications: industrial motor protection, power conversion, medium voltage, power distribution, telecommunications network equipment, electronics, and automotive.
World's leading supplier of fuses and fusible protection systems, Bussmann continues its 88-year history of blazing new trails of innovative technologies. Maker of the industry's first truly global product line, each item is backed by an efficient worldwide network of distribution, customer service and technical support. Bussmann products include the most extensive circuit protection solutions approved for use in a variety of major standards: UL, CSA, IEC. . . Not to mention both European (DIN, British Standard) and North American styled fuses for a wide range of applications: industrial motor protection, power conversion, medium voltage, power distribution, telecommunications network equipment, electronics, and automotive.
Alternate Catalog Number MDL-30 Application Ind Facilities & Factories - Facility: Safety and Security Systems ARRA Compliant C Body Size 1/4 in Dia x 1-1/4 in L Buy American Compliant C Catalog Number MDL-30 Connection Ferrule end x ferrule end Country of Origin MX Currency USD Element Single EU RoHS Indicator C Gross Weight Per Pack 0.0200 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100020 Height 0.19 in Height [Metric] 0.4775 cm Indicating|Non~Indicating Non-Indicating Length 1.44 in Length [Metric] 3.6525 cm Material Glass tubeNickel-plated brass end cap construction Mounting Type Holder Rejection|Non~Rejection Non-Rejection Response Time 60 min at 135%, 120 sec at 200%, 5 sec at 200% s Series MDL Size 1/4 In Diameter X 1-1/4 In Length Standard CE Marked Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 248-14Guide JDYX2UL File No. E19180CSA CertifiedCSA Class 1422-30 Sub Brand Bussmann Series Terminal Type Ferrule Type Time-delay fuse UNSPSC 39121607 UPC 11 05171272461 UPC 12 051712724616 Width 1.25 in Width [Metric] 3.1750 cm Stock Status NONSTOCK Brand Bussmann Manufacturer Eaton Amperage Rating 30 A Body Type Cylindrical Interrupt Rating 1 kAIC at 32 Vac kA Voltage Rating 32 Vac, 32 Vdc (self certified) VAC Ind Facilities & Factories - Facility: Safety and Security Systems Interrupt Rating 1000 Amp at 32 Vac, Material Glass Tube, Nickel Plated Brass Endcap Time delay allows close sizing on inductive circuits 1000 A at 32 VAC interrupt rating 60 min maximum at 135%, 120 sec maximum at 200% response time Broad amp size range allows improved compatibility between fuse and circuit operating characteristics Glass tube, nickel-plated brass endcap construction
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | MDL-30 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| ARRA Compliant | C |
| Body Size | 1/4 in Dia x 1-1/4 in L |
| Buy American Compliant | C |
| Catalog Number | MDL-30 |
| Connection | Ferrule end x ferrule end |
| Country of Origin | MX |
| Currency | USD |
| Element | Single |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0200 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100020 |
| Height | 0.19 in |
| Height [Metric] | 0.4775 cm |
| Indicating|Non~Indicating | Non-Indicating |
| Length | 1.44 in |
| Length [Metric] | 3.6525 cm |
| Material | Glass tubeNickel-plated brass end cap construction |
| Mounting Type | Holder |
| Rejection|Non~Rejection | Non-Rejection |
| Response Time | 60 min at 135%, 120 sec at 200%, 5 sec at 200% s |
| Series | MDL |
| Size | 1/4 In Diameter X 1-1/4 In Length |
| Standard | CE Marked |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 248-14Guide JDYX2UL File No. E19180CSA CertifiedCSA Class 1422-30 |
| Sub Brand | Bussmann Series |
| Terminal Type | Ferrule |
| Type | Time-delay fuse |
| UNSPSC | 39121607 |
| UPC 11 | 05171272461 |
| UPC 12 | 051712724616 |
| Width | 1.25 in |
| Width [Metric] | 3.1750 cm |
| Stock Status | NONSTOCK |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 30 A |
| Body Type | Cylindrical |
| Interrupt Rating | 1 kAIC at 32 Vac kA |
| Voltage Rating | 32 Vac, 32 Vdc (self certified) VAC |
| Ind Facilities & Factories - Facility: Safety and Security Systems |
| Interrupt Rating 1000 Amp at 32 Vac, Material Glass Tube, Nickel Plated Brass Endcap |
| Time delay allows close sizing on inductive circuits |
| 1000 A at 32 VAC interrupt rating |
| 60 min maximum at 135%, 120 sec maximum at 200% response time |
| Broad amp size range allows improved compatibility between fuse and circuit operating characteristics |
| Glass tube, nickel-plated brass endcap construction |
