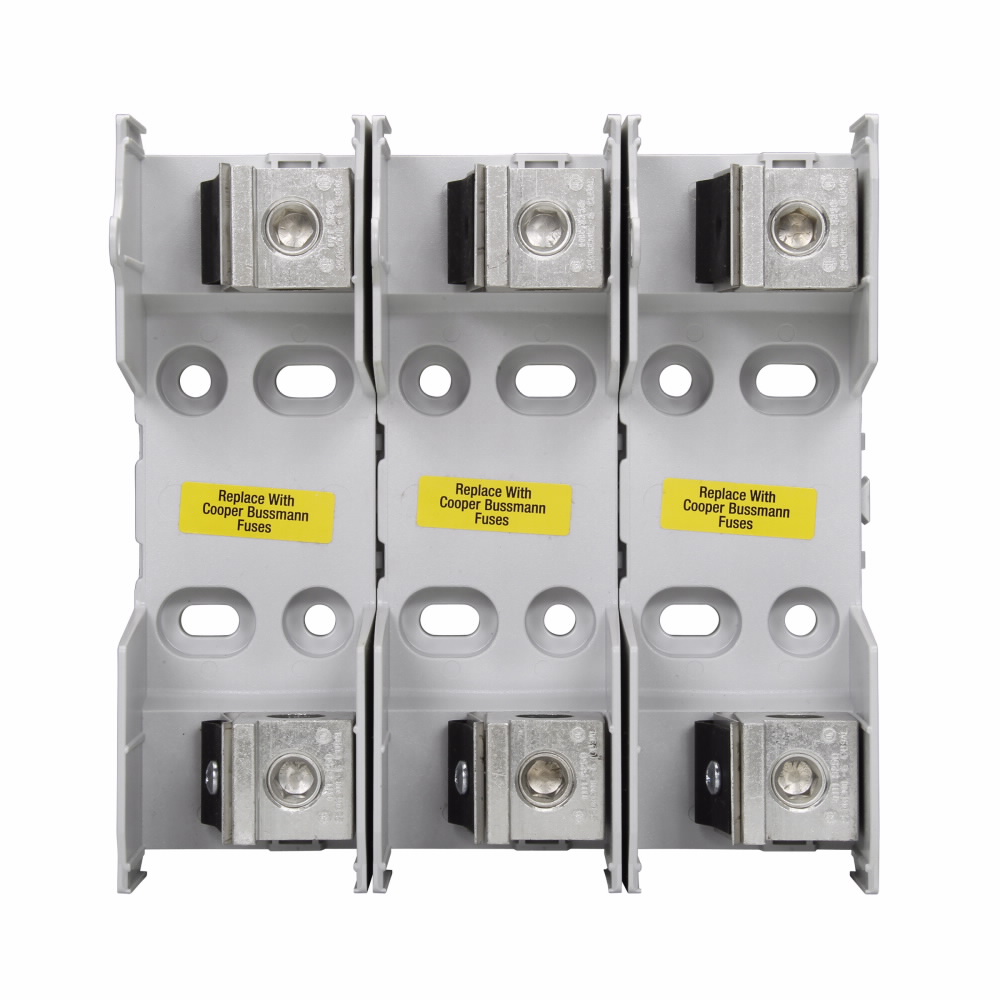

Edison HM25200-3CR HM25 Knife Blade Non-Illuminated Fuse Block, 250 VAC, 200 A, 250 kcmil to 6 AWG Wire, 3 Poles
Power Fuse Blocks
749673
MFG #: HM25200-3CR
Bussmann
722.97000
/ ea
- Catalog 1 URL - Bussmann_HM25200_1CR_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - Bussmann_KTS_R_75_Catalog.pdf(Catalog URL)
- http://www.bussmann.com(Seller Home Page URL)
- Spec Sheet 1 URL - Bussmann_HM25200_1CR_Specification_Sheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10973_THBS3VMC6WFI7XNP.pdf(Spec Sheet URL)
- Spec Sheet URL - skuPage.HM25200-3CR.pdf(Spec Sheet URL)
- Tech Drawing URL - Bussmann_HM25200_1CR_Technical_Drawing.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/hzynNYRnhm0(Video)
- Applications
- Features
| Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| CR |
| Integral dovetails allow snapping together multiple poles at point of use for greater application flexibility |
| Up to four mounting holes per pole increase installation flexibility |
| Standard phase barriers between poles for additional safety |
| Design meets UL creep and clearance requirements for industrial control circuits (UL 508 and UL 845) |
| 200 to 600 A blocks meet the higher UL creep and clearance requirements for industrial power distribution standards (UL 98, UL 69, UL 489, UL 891 and UL 869A) |
| Lockout/tagout feature improves safety |
| Blocks dovetail together to assemble required number of poles |
| Multiple mounting holes for each pole provide flexible, secure mounting |
| Standard phase barriers for additional safety |
| Finger grips on cover for easy removal |
| Optional seethrough, snap-on cover for easy visual inspection |
| Covered style |
| 250 kcmil - 6 AWG Cu/Al, 6 - 2 AWG Cu/Al, (2) 6 - 2 AWG Cu, 3/0 - 1 AWG Cu, 6 - 2 AWG Cu wire size |
