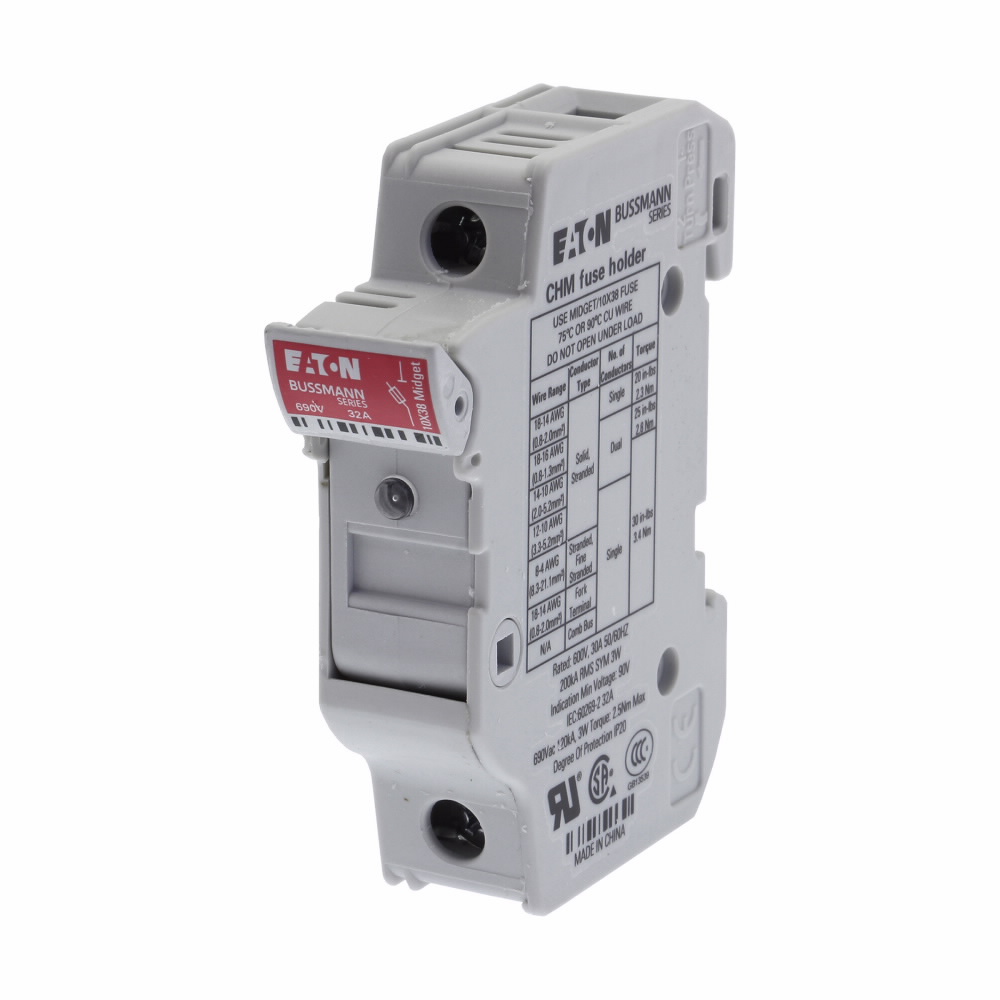

Edison CHM1DIU CH Series Modular Fuse Holder With Indicator, 600/690 VAC, 30/32 A, 18 to 4 AWG Wire, 1 Pole
Custom_Product_Images_Illustration
Edison CHM1DIU CH Series Modular Fuse Holder With Indicator, 600/690 VAC, 30/32 A, 18 to 4 AWG Wire, 1 Pole
SKU615847
MFGR #CHM1DIU
Your Cost: $52.98/ea
List: Eaton?s Bussmann series CH DIN-Rail fuse holders are for UL Class CC and midget fuses, and IEC 10x38 fuses. They are available with and without indication in 1-, 2- and 3-pole IP20 finger-safe versions. A variety of accessories extends their application flexibility and they may be ganged together to meet specific application requirements.
Eaton?s Bussmann series CH DIN-Rail fuse holders are for UL Class CC and midget fuses, and IEC 10x38 fuses. They are available with and without indication in 1-, 2- and 3-pole IP20 finger-safe versions. A variety of accessories extends their application flexibility and they may be ganged together to meet specific application requirements.
Alternate Catalog Number CHM1DIU Application Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs ARRA Compliant C Buy American Compliant C Catalog Number CHM1DIU Country of Origin MUL Currency USD Dimensions 2.909 in H x 0.689 in W x 3.275 in D EU RoHS Indicator C Fuse Diameter 10 Fuse Length 38 Gross Weight Per Pack 0.1150 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536308000 Height 2.91 in Height [Metric] 7.3914 cm Length 0.69 in Length [Metric] 1.7526 cm Mounting Type DIN Rail Number Of Poles 1 Operating Temperature -20 To 90 Deg C Series CH Series Size 0.689 Width X 3.275 In Depth X 2.909 In Height Standard Contact Manufacturer,RoHS Compliant,Contact factory Standards UL E14853, UR ListedCSA 47235Class 6225-30, IEC 60269-2, CCC CertifiedRoHS CompliantARRA CompliantBuy American Act Compliant Sub Brand Bussmann Series Suitable For Use With AGU, C10G, C10M, BAF, BAN, FNM, FNQ, FWA, FWC, KLM, KTK, CHM Fuse Temperature Rating -20 to 90 UNSPSC 39121624 UPC 11 05171236275 UPC 12 051712362757 Wattage -20 CEL Width 3.28 in Width [Metric] 8.3312 cm Stock Status NORMALLY STOCKED Brand Bussmann Manufacturer Eaton Amperage Rating 30A (UL), 32A (IEC) A;A Class Midget Type Modular fuse holder Voltage Rating 600/690 V Wire Size 18 to 4 Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs 1 Pole, For Use With 10 mm X 38 mm Fuse, With Indicating Enhanced safety with IP20 finger safe construction Wiring flexibility with terminals rated for use with 75 or 90 deg C solid, stranded and fine stranded wire and spade terminals and comb-bus bars Complete range of UL Listed and high SCCR rated 1 and 3-phase finger safe comb-bus bars and power feed lugs 30 A, 600 VAC UL and 32 A, 690 VAC IEC rated NO 18 - 4 AWG Cu wire size 600 VAC (UL), 690 VDC (IEC) 30 A (UL), 32 A (IEC)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | CHM1DIU |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | CHM1DIU |
| Country of Origin | MUL |
| Currency | USD |
| Dimensions | 2.909 in H x 0.689 in W x 3.275 in D |
| EU RoHS Indicator | C |
| Fuse Diameter | 10 |
| Fuse Length | 38 |
| Gross Weight Per Pack | 0.1150 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536308000 |
| Height | 2.91 in |
| Height [Metric] | 7.3914 cm |
| Length | 0.69 in |
| Length [Metric] | 1.7526 cm |
| Mounting Type | DIN Rail |
| Number Of Poles | 1 |
| Operating Temperature | -20 To 90 Deg C |
| Series | CH Series |
| Size | 0.689 Width X 3.275 In Depth X 2.909 In Height |
| Standard | Contact Manufacturer,RoHS Compliant,Contact factory |
| Standards | UL E14853, UR ListedCSA 47235Class 6225-30, IEC 60269-2, CCC CertifiedRoHS CompliantARRA CompliantBuy American Act Compliant |
| Sub Brand | Bussmann Series |
| Suitable For Use With | AGU, C10G, C10M, BAF, BAN, FNM, FNQ, FWA, FWC, KLM, KTK, CHM Fuse |
| Temperature Rating | -20 to 90 |
| UNSPSC | 39121624 |
| UPC 11 | 05171236275 |
| UPC 12 | 051712362757 |
| Wattage | -20 CEL |
| Width | 3.28 in |
| Width [Metric] | 8.3312 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 30A (UL), 32A (IEC) A;A |
| Class | Midget |
| Type | Modular fuse holder |
| Voltage Rating | 600/690 V |
| Wire Size | 18 to 4 |
| Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| 1 Pole, For Use With 10 mm X 38 mm Fuse, With Indicating |
| Enhanced safety with IP20 finger safe construction |
| Wiring flexibility with terminals rated for use with 75 or 90 deg C solid, stranded and fine stranded wire and spade terminals and comb-bus bars |
| Complete range of UL Listed and high SCCR rated 1 and 3-phase finger safe comb-bus bars and power feed lugs |
| 30 A, 600 VAC UL and 32 A, 690 VAC IEC rated |
| NO 18 - 4 AWG Cu wire size |
| 600 VAC (UL), 690 VDC (IEC) |
| 30 A (UL), 32 A (IEC) |
