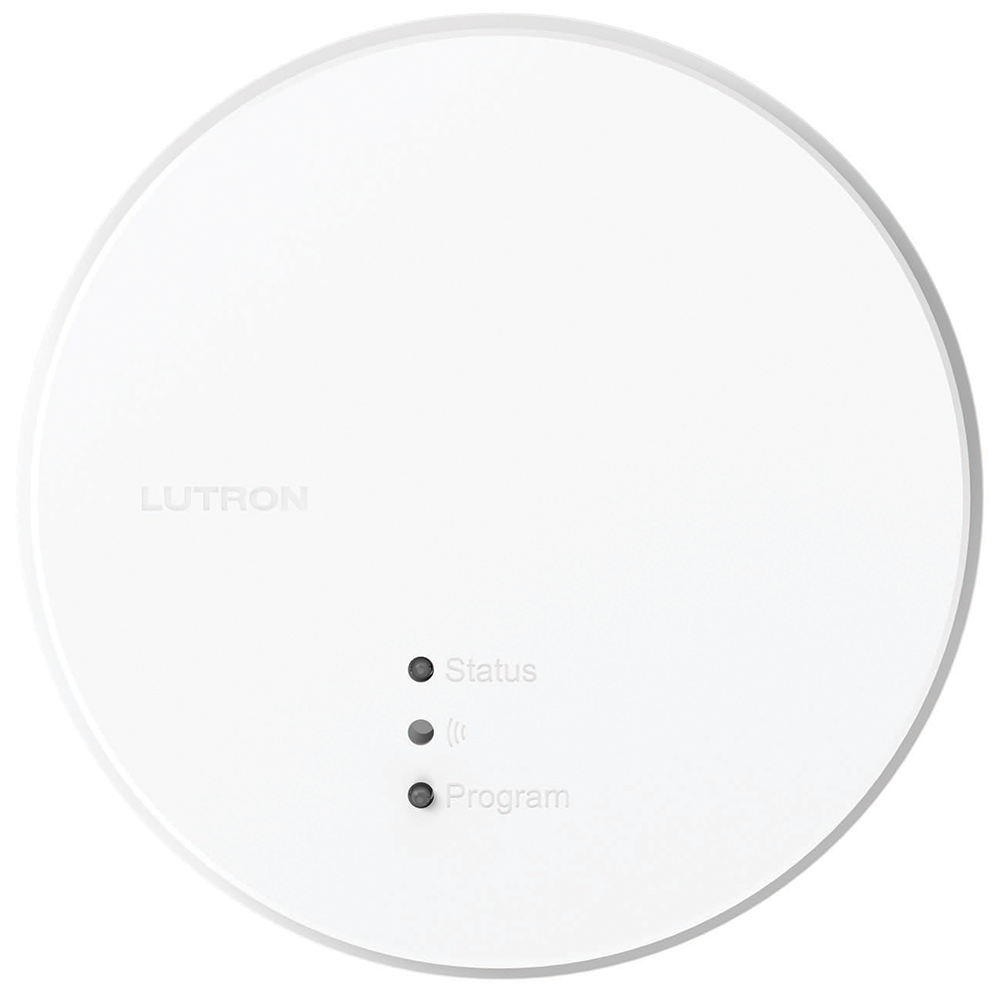

EcoSystem® QSM2-4W-C QSM 4-Wire QS Sensor Module, 24 to 36 VDC, Infrared Receiver/Daylight Sensor, Ceiling Mount
Ceiling Mount Occupancy Sensors
680629
MFG #: QSM2-4W-C
Lutron®
204.24000
/ ea
- Computer~Aided [CAD|BIM] Model URL - Sensor-Lutron-Interface-QSM24WC.rfa(Computer~Aided [CAD|BIM] Model URL)
- http://www.lutron.com(Seller Home Page URL)
- Install Instructions 1 URL - 10977_8XHUBWEA56CTNZ0M.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 10977_TIV25U1PFQ7W8KJL.pdf(Spec Sheet URL)
- Warranty URL - 10977_W85ERUZCVKMJXSAD.pdf(Warranty URL)
- Features
| Ceiling-mounted device that integrates Lutron wireless and wired sensors and controls through the QS communication link to Energi Savr Node (ESN) units, GRAFIK Eye QS control units (models starting with QSGR), Quantum systems, Sivoia QS shades/draperies, and myRoom control modules. Uses Clear Connect RF Technology for communication with Radio Powr Savr occupancy and daylight sensors, and Pico wireless controllers. QSM connects to four Lutron wired sensors or controls - occupancy sensors, daylight sensors, EcoSystem infrared (IR) receivers, or EcoSystem wallstations. Does not apply to wireless only models. Powered by the QS link - no line voltage connections are required. |
| Uses Clear Connect® RF technology for communication with radio Powr Savr™ occupancy sensors, radio Powr Savr™ daylight sensors and Pico® wireless controllers |
| QSM connects to four Lutron® wired sensors or controls occupancy sensors, daylight sensors, EcoSystem® infrared (IR) receivers or EcoSystem® wall stations |
| Powered by the QS link no line voltage connections are required |
| Allows Lutron® wired occupancy sensors, daylight sensors, EcoSystem® wall stations, EcoSystem® IR receivers, Pico® wireless controllers, radio Powr Savr™ wireless occupancy sensors and daylight sensors to control ESN units |
| Compatible with GRAFIK Eye® QS control units, Sivoia® QS shades/draperies, myRoom™ power modules |
| Has an RF range of 60 ft (18 m) line of sight or 30 ft (9 m) through walls |
| Contains 10 year power failure memory, restores settings and programming after power interruption |
| Connect to and power up to 4 wired sensors and controls |
| Injection molded plastic |
