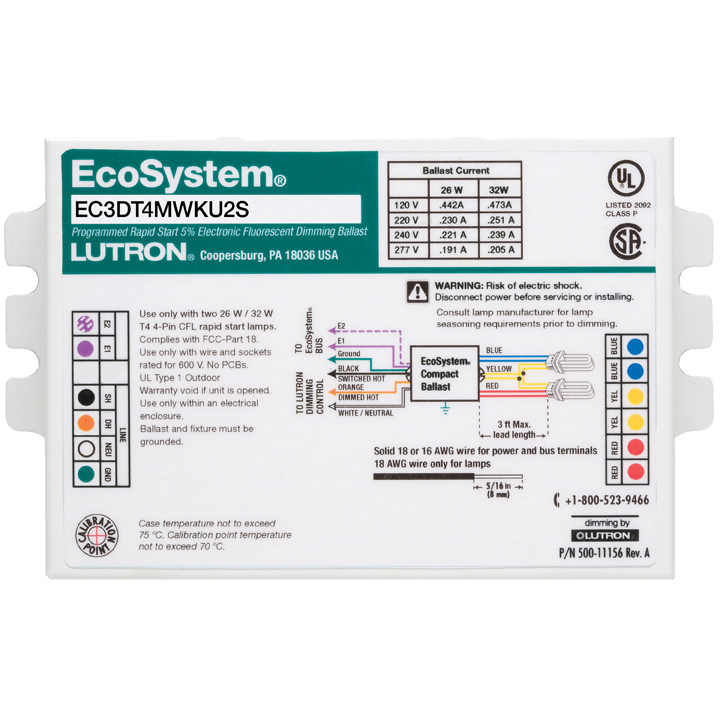

EcoSystem® EC3DT4MWKU2S Dimming Studded Digital Ballasts, T4/CFL Lamp, 32 W, 120 VAC, Programmed Rapid
Dimming Fluorescent Ballasts
572610
MFG #: EC3DT4MWKU2S
Lutron®
214.58000
/ ea
- Computer~Aided [CAD|BIM] Model URL - Dimming-Lutron-Ballast-Digital_EcoSystem-EC3D.zip(Computer~Aided [CAD|BIM] Model URL)
- http://www.lutron.com(Seller Home Page URL)
- Install Instructions 1 URL - 10977_6ZFEBNMUW0TJ42PO.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 10977_ETSBX8QAJ5ZY3DP1.pdf(Spec Sheet URL)
- Spec Sheet URL - EcoSystem_CompactFluorescentBallasts.pdf(Spec Sheet URL)
- Warranty URL - 10977_K92FMPQ6TX7ELS0V.pdf(Warranty URL)
- Applications
- Features
| Lighting Control |
| Provides high-performance dimming for any compact fluorescent application. Offers continuous flicker-free dimming from 100% to 5 %, providing both energy savings and lighting flexibility. Compatible with Energi Savr Node with EcoSystem devices, GRAFIK Eye QS with EcoSystem connection, PowPak dimming module with EcoSystem connection, and Quantum systems, allowing for integration into an existing/planned EcoSystem lighting control system. Supports standard 3-wire line-voltage phase control technology. Programmed rapid start design ensures full-rated lamp life while dimming and cycling. Lamps turn on to any dimmed level without flashing to full brightness. Low harmonic distortion throughout the entire dimming range. Frequency of operation ensures that ballast does not interfere with infrared devices. Inrush current limiting circuitry eliminates circuit breaker tripping, switch arcing, and relay failure. Ultr-quiet operation. Protected from miswires of any input power to control lead, or from lamp leads to each other and/or ground. End-of-lamp-life protection circuitry ensures safe operation throughout entire lamp life. Nonvolatile memory restores all ballast settings after power failure. 100% compatible with all Lutron 3-wire fluorescent controls and EcoSystem digital controls. 100% performance tested at factory. Custom ballast factors available. Design tool and specifications can be found at www.lutron.com/ballasttool |
| Continuous, flicker free dimming from 100% to 5% |
| Compatible with EcoSystem® energy saver Node unit, GRAFIK Eye® QS with EcoSystem® unit, PowPak™ dimming module with EcoSystem® unit, and Quantum systems, allowing for integration into an existing/planned EcoSystem® lighting control system |
| Supports standard 3-wire line-voltage phase control technology |
| Programmed rapid start design ensures full rated lamp life while dimming and cycling |
| Lamps turn on to any dimmed level without flashing to full brightness |
| Low harmonic distortion throughout the entire dimming range |
| Frequency of operation ensures that ballast does not interfere with infrared devices |
| Inrush current limiting circuitry eliminates circuit breaker tripping, switch arcing, and relay failure |
| Ultra-quiet operation |
| Protected from miswires of any input power to control lead, or from lamp leads to each other and/or ground |
| End-of-lamp-life protection circuitry ensures safe operation throughout entire lamp life |
| Nonvolatile memory restores all ballast settings after power failure |
| 100% compatible with all Lutron 3-wire fluorescent controls and EcoSystem® digital controls |
| 100% performance tested at factory |
| Ballast is grounded by the specified terminal or by a mounting screw to the fixture |
| Ballast mounts using two mounting tabs or studs within a fluorescent fixture |
| Within a fluorescent fixture mounting, K case size |
| 4560 lumens |
| 69.1 lm/W system efficacy |
| 1.44 ballast efficacy factor |
