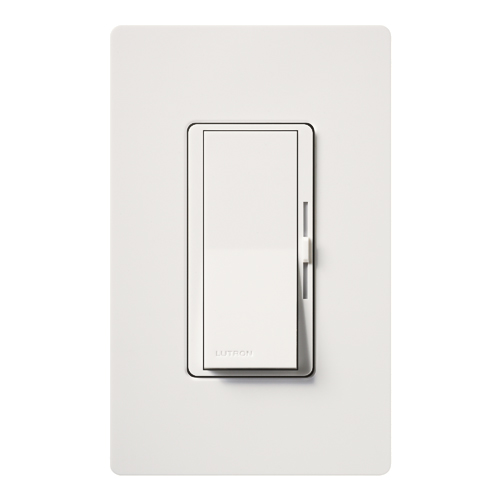

Diva® DV-603P-WH Designer Style Dimmer Switch With Locator Light, 120 VAC, 1 Pole, White
Dimmers
705
MFG #: DV-603P-WH
Lutron®
33.00000
/ ea
- http://www.lutron.com(Seller Home Page URL)
- Install Instructions 1 URL - 0301689.pdf(Install Instructions 1 URL)
- Install Instructions URL - 0301103A.pdf(Install Instructions URL)
- Line Drawing URL - Diva_Typical.pdf(Line Drawing URL)
- Spec Sheet URL - DivaSatinColors.pdf(Spec Sheet URL)
- Spec Sheet URL - specSubmittal_Diva.pdf(Spec Sheet URL)
- Tech Drawing URL - 368-4493_Page_5.pdf(Tech Drawing URL)
- Tech Drawing URL - wallbox_wiring_6_7.pdf(Tech Drawing URL)
- Video - http://www.lutron.com/Education-Training/Tools/Pages/InstallDimmer.aspx?syst=Dimmers+%26+...(Video)
- Video - https://www.lutron.com/Education-Training/Tools/Pages/InstallDimmer.aspx?syst=Dimmers+%26...(Video)
- Warranty URL - 369-119_Wallbox_Warranty.pdf(Warranty URL)
- Applications
- Features
Lighting Control |
Controls 600 W incandescent or halogen loads. Paddle turns on/off. Slide up to brighten, down to dim. |
Large paddle switch with a captive linear slide dimmer for a standard designer wallplate opening |
Full family of products for most lighting sources |
Dimmers feature built-in soft-glow nightlight |
Uses standard single-pole and 3-way wiring for easy installation in any home |
Locator light shines through paddle on select lighter colored models |
Slide up to brighten; down to dim |
Square Law Dimming |
Power failure memory |
Electrostatic discharge tested |
RFI suppression |
Captive linear slider |
Mechanical air-gap switch to disconnect load power |
Gloss finish |
Wall Box mounting |
