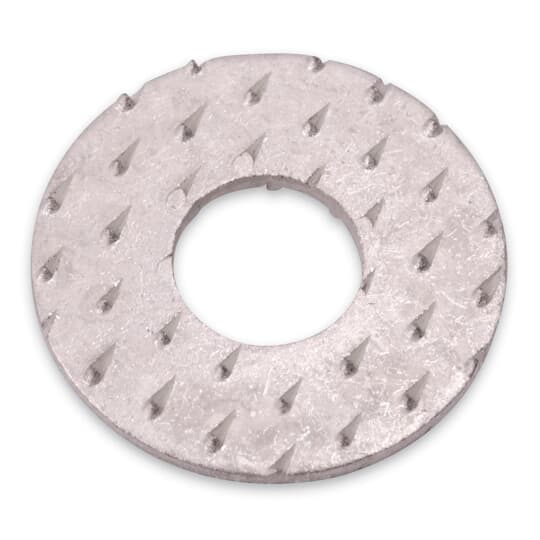

Color-Keyed® DTW12 Thomas & Betts TRANSITION WASHER
Flat Washers
102040
MFG #: DTW12
Color-Keyed®
502.24000
/ ea
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
- Compliance Cert URL - Color_Keyed_DTW12_RoHS_Sheet.pdf(Compliance Cert URL)
- http://www.TNB.com(Seller Home Page URL)
- ROHS Compliance URL - Color_Keyed_DTW12_RoHS_Sheet.pdf(ROHS Compliance URL)
- Install Instructions 1 URL - TA00381-TB2.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 12055_1KBOPLHFWG84RNJA.pdf(Spec Sheet URL)

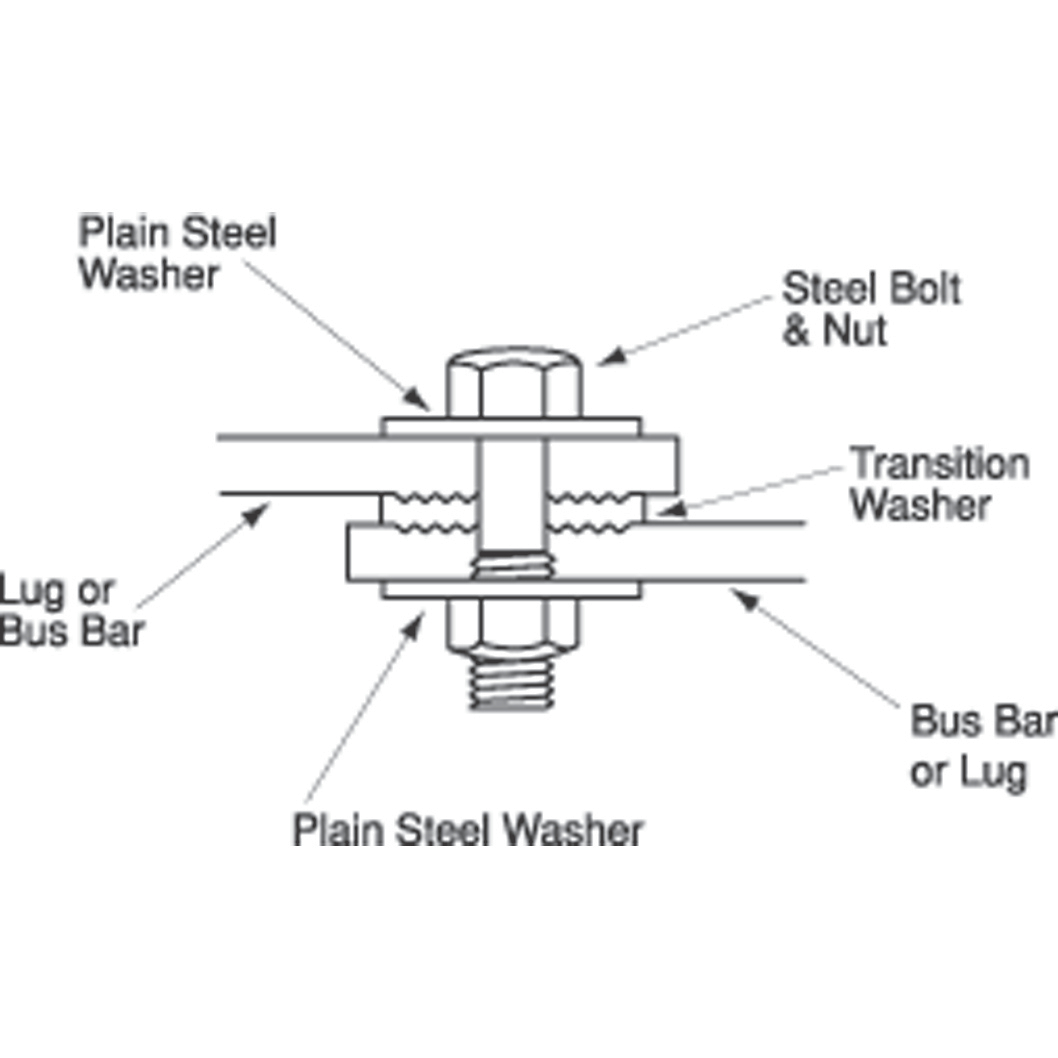

- Line Drawing URL - fpw14_dt1ld_0(Line Drawing URL)
- Spec Sheet URL - WSD-000471.pdf(Spec Sheet URL)
- Tech Drawing URL - dtw14_ck1.JPG(Tech Drawing URL)
- Applications
- Features
| Teeth on the transition washers penetrate aluminum and copper oxides, enabling copper to aluminum connections to be made in a bolted joint without the use of inhibiting compounds. |
| Connect copper to aluminum, copper to copper or aluminum to aluminum component |
| Lower installed cost - no need to grind aluminum surfaces, apply compounds or use spring-type washers |
| 390 to 540 in-lb bolt torque |
