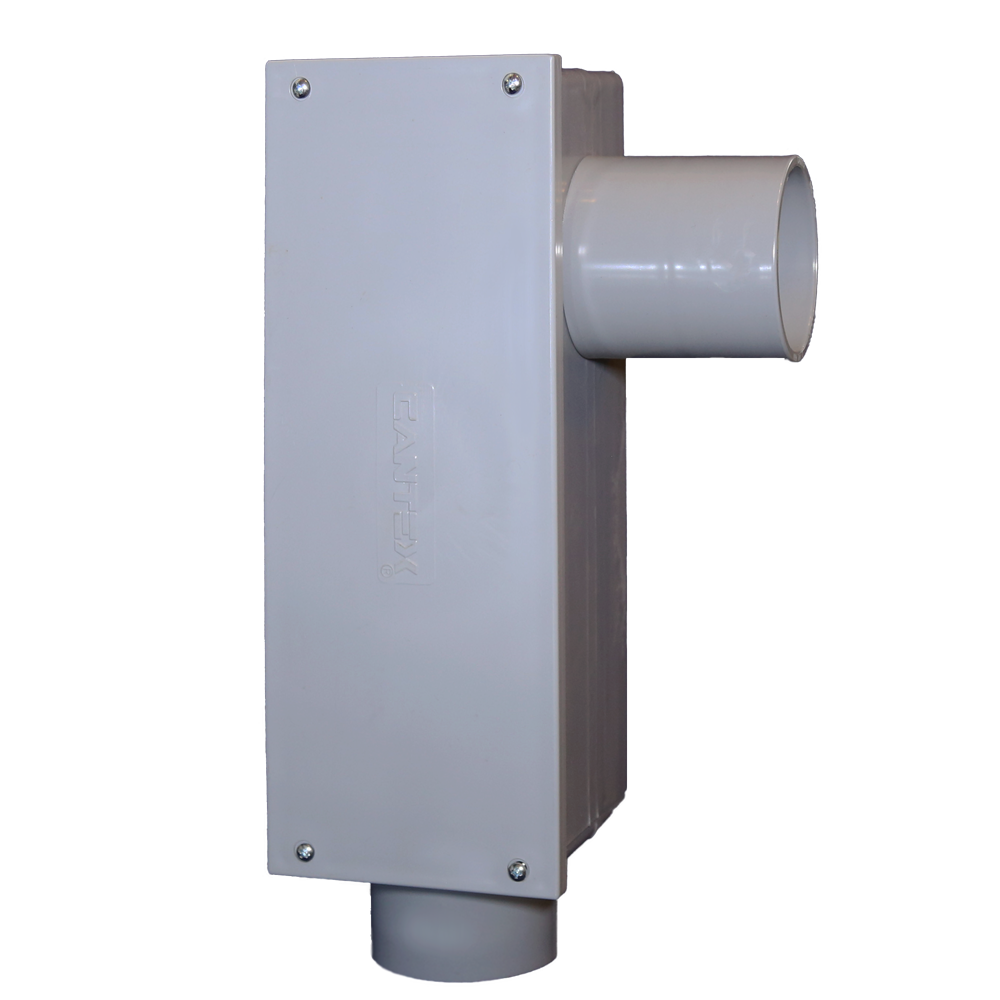

Cantex® 5133646 3IN UL CONDUIT BODY ACCESS FITTING - TYPE LL
Type LL Conduit Fitting Body
826628
MFG #: 5133646
CANTEX®
10020.40000
/ ea
- http://www.cantexinc.com(Seller Home Page URL)
- http://www.cantexinc.com/(Seller Home Page URL)
- Material Composition - RoHS_Statement.pdf(Material Composition)
- Safety Data Sheet URL - PVC_Products.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 11541_TQ3X8DUCOM0FKPNZ.pdf(Spec Sheet URL)
- Tech Drawing URL - 11541_ID-SPE-v1-ConduitBody_LL.pdf(Tech Drawing URL)
- Tech Drawing URL - 5133646.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-Type_LL.pdf(Tech Drawing URL)
- Warranty URL - WAR_Terms_and_Conditions_12_2012.PDF(Warranty URL)
- Applications
- Features
| Conduit body used for change of direction of conduit run |
| Square corners |
| Conduit body type LL which provides pull, splice and tap access for conductors in a conduit system along with a change in direction |
| Type LL conduit bodies are used to make a 90 deg turn in a conduit run with one opening on top and one opening exiting the left side of the cover |
| Durable non-conductive PVC will not rust or corrode |
| Facing the cover side with the end wall hub pointing up, the second hub is in the left side wall at the opposite end of the fitting |
| (3) XHHW 500 kcmil maximum number of conductors |
