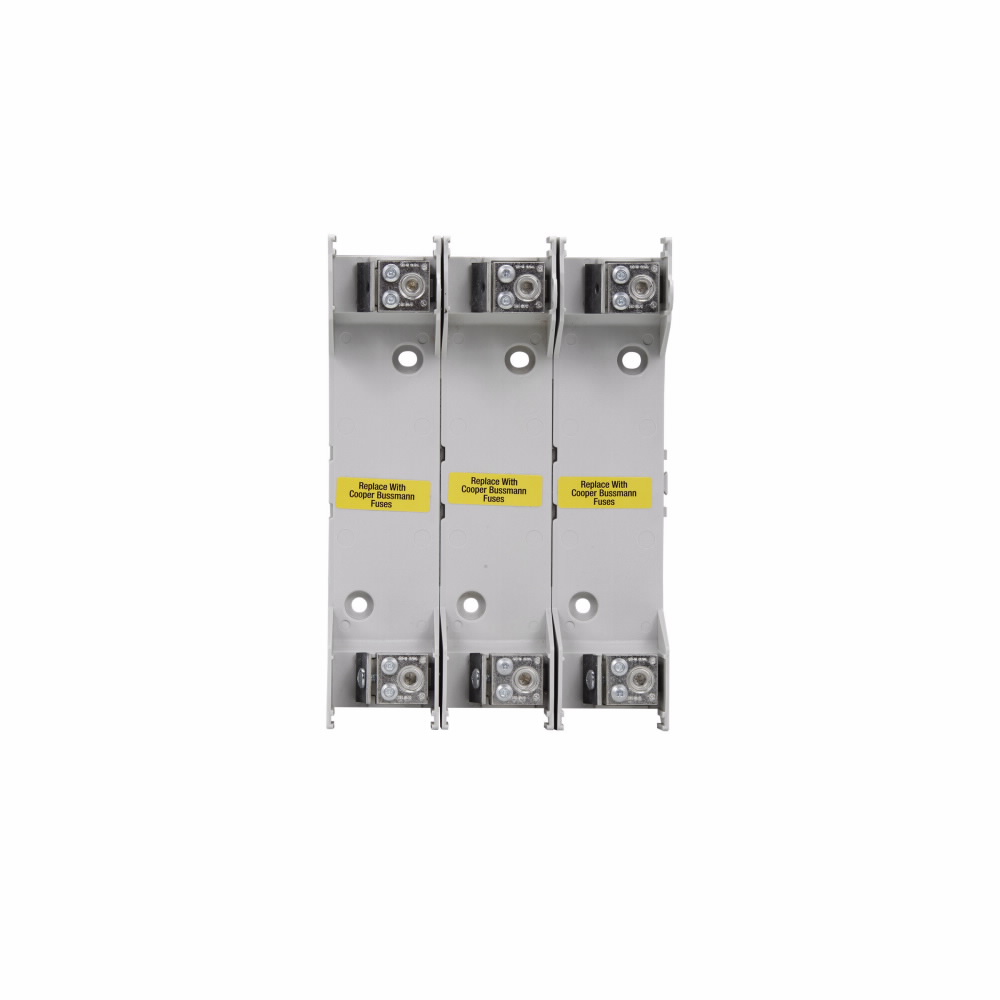

Bussmann® RM60100-2CR 100 amp class R fu
SKU761707
MFGR #RM60100-2CR
Your Cost: $133.71/ea
List: Increase flexibility and electrical safety with Bussmann?s snap together Class H(K), J, and R knifeblade fuse blocks. As the only company with a complete portfolio of circuit protection solutions to meet every application need, Eaton and Bussmann offer unmatched leadership in circuit protection.
Increase flexibility and electrical safety with Bussmann?s snap together Class H(K), J, and R knifeblade fuse blocks. As the only company with a complete portfolio of circuit protection solutions to meet every application need, Eaton and Bussmann offer unmatched leadership in circuit protection.
Alternate Catalog Number RM60100-2CR Application Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs ARRA Compliant C Buy American Compliant C Catalog Number RM60100-2CR Connection Knife blade end x knife blade end Connection Type Box Lug Country of Origin MX Currency USD Dimensions 6 in L x 4 in W x 2.8 in H EU RoHS Indicator C Fuse Diameter 1.34/1.16 Fuse Holder Code R Fuse Length 7.88 Gross Weight Per Pack 0.0010 lb Gross Weight per Pack Metric 1.63 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536908585 Height 5.45 in Height [Metric] 13.8430 cm Length 7.00 in Length [Metric] 17.7800 cm Material Thermoplastic Mounting Type Hole Number Of Poles 2 Series RM600 Standard CSA Certified ,UL Listed ,Contact Manufacturer,RoHS Compliant,CE Marked Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedcULus File No. E14853CSA CertifiedUL94 V-0 Flammability Rating Sub Brand Bussmann Series Suitable For Use With Knife Blade Cartridge Fuse Temperature Rating -40 to 120 °C UNSPSC 39121629 UPC 11 05171239122 UPC 12 051712391221 Width 5.50 in Width [Metric] 13.9700 cm Stock Status NONSTOCK Brand Bussmann Manufacturer Eaton Amperage Rating 70-100 A Class R Type Modular fuse block Voltage Rating 600 VAC Wire Size 1 to 3 AWG, 4 to 6 AWG, 8 AWG Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs CR Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility Factory assembled two and three pole configurations available Up to four mounting holes per pole increase installation flexibility Design meets UL creep and clearance requirements for industrial power circuits (UL 508 and UL 845) 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards (UL 98, UL 67, UL 489, UL 891 and UL 869A) Optional IP20 finger-safe covers available on entire knifeblade fuse block product line 1/0 to 3 AWG, (2) 4 to 6 AWG copper, 4 to 6 AWG, (2) 8 AWG copper, 8 AWG, (2) 10 to 14 AWG copper, 10 to 14 AWG copper, 10 to 12 AWG aluminum solid and stranded wire 1.34 in dia for Fusetron® and Limitron®, 1.16 in dia for Low-Peak® fuses Built-in lockout/tagout feature improves safety Standard fuse clip reinforcing springs enhance electrical contact 200 kA short circuit current rating Flammability ratings of UL 94V0, self-extinguishing Tin-plated aluminum box lug terminals
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | RM60100-2CR |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | RM60100-2CR |
| Connection | Knife blade end x knife blade end |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6 in L x 4 in W x 2.8 in H |
| EU RoHS Indicator | C |
| Fuse Diameter | 1.34/1.16 |
| Fuse Holder Code | R |
| Fuse Length | 7.88 |
| Gross Weight Per Pack | 0.0010 lb |
| Gross Weight per Pack Metric | 1.63 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536908585 |
| Height | 5.45 in |
| Height [Metric] | 13.8430 cm |
| Length | 7.00 in |
| Length [Metric] | 17.7800 cm |
| Material | Thermoplastic |
| Mounting Type | Hole |
| Number Of Poles | 2 |
| Series | RM600 |
| Standard | CSA Certified ,UL Listed ,Contact Manufacturer,RoHS Compliant,CE Marked |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedcULus File No. E14853CSA CertifiedUL94 V-0 Flammability Rating |
| Sub Brand | Bussmann Series |
| Suitable For Use With | Knife Blade Cartridge Fuse |
| Temperature Rating | -40 to 120 °C |
| UNSPSC | 39121629 |
| UPC 11 | 05171239122 |
| UPC 12 | 051712391221 |
| Width | 5.50 in |
| Width [Metric] | 13.9700 cm |
| Stock Status | NONSTOCK |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 70-100 A |
| Class | R |
| Type | Modular fuse block |
| Voltage Rating | 600 VAC |
| Wire Size | 1 to 3 AWG, 4 to 6 AWG, 8 AWG |
| Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| CR |
| Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility |
| Factory assembled two and three pole configurations available |
| Up to four mounting holes per pole increase installation flexibility |
| Design meets UL creep and clearance requirements for industrial power circuits (UL 508 and UL 845) |
| 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards (UL 98, UL 67, UL 489, UL 891 and UL 869A) |
| Optional IP20 finger-safe covers available on entire knifeblade fuse block product line |
| 1/0 to 3 AWG, (2) 4 to 6 AWG copper, 4 to 6 AWG, (2) 8 AWG copper, 8 AWG, (2) 10 to 14 AWG copper, 10 to 14 AWG copper, 10 to 12 AWG aluminum solid and stranded wire |
| 1.34 in dia for Fusetron® and Limitron®, 1.16 in dia for Low-Peak® fuses |
| Built-in lockout/tagout feature improves safety |
| Standard fuse clip reinforcing springs enhance electrical contact |
| 200 kA short circuit current rating |
| Flammability ratings of UL 94V0, self-extinguishing |
| Tin-plated aluminum box lug terminals |
