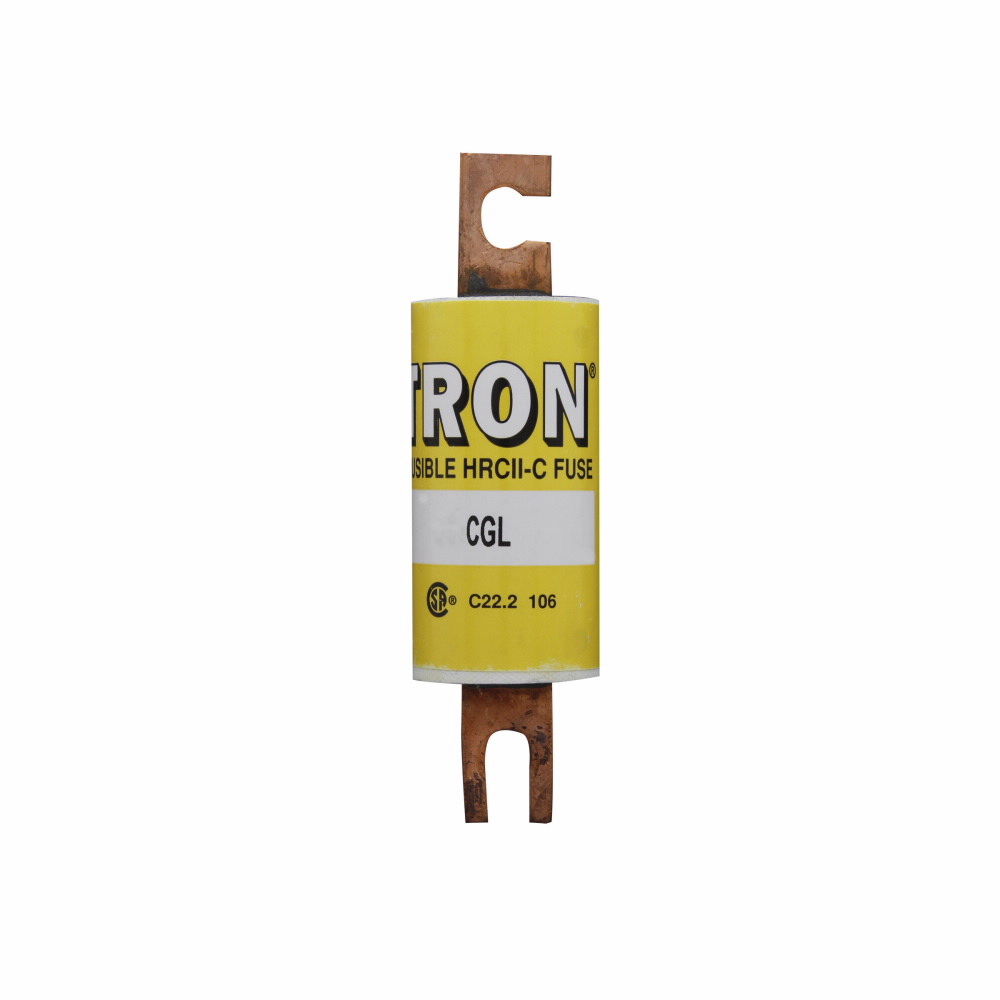

Bussmann® CGL-125 LIMITRON FAST ACTING F
SKU898858
MFGR #CGL-125
Your Cost: $486.26/ea
List: 125AMP 600V C CURRENT LMTG FUSE
125AMP 600V C CURRENT LMTG FUSE
Alternate Catalog Number CGL-125 Application Ind Facilities & Factories - Facility: Safety and Security Systems ARRA Compliant C Body Size 1.5 in Dia x 5.31 in L Buy American Compliant C Catalog Number CGL-125 Connection Blade end x blade end Country of Origin MX Currency USD Element Dual EU RoHS Indicator C Gross Weight Per Pack 0.7800 lb Gross Weight per Pack Metric 0.34 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Height 1.75 in Height [Metric] 4.4450 cm Length 1.75 in Length [Metric] 4.4450 cm Material Fiberglass Mounting Type Stud Series CGL Size 1.50 In Diameter X 5.31 In Length Standard Not Applicable Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 106CE Certified Sub Brand Bussmann Series Terminal Type Blade Type Fuse UNSPSC 39121626 UPC 11 05171210046 UPC 12 051712100465 Width 6.00 in Width [Metric] 15.2400 cm Stock Status NONSTOCK Brand Bussmann Manufacturer Eaton Amperage Rating 125 A Body Type Cartridge Class Class C Interrupt Rating 40 kAIC at 250 Vdc200 kAIC at 600 Vac kA Voltage Rating 600 VAC Ind Facilities & Factories - Facility: Safety and Security Systems Current limiting HRCII-C fuses designed to withstand inrush currents on typical motor start-ups while offering high current limitation in the short circuit region Close sizing to loads allows using smaller and less costly switches Provides a higher degree of short circuit protection Helps protect motors against burnout from overloads 200 kA at 600 VAC, 40 kA at 250 VDC interrupt rating Close sizing to loads allows using smaller and less costly switches Provides a higher degree of short circuit protection Helps protect motors against burnout from overloads 200 kA (RMS symmetrical) interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | CGL-125 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| ARRA Compliant | C |
| Body Size | 1.5 in Dia x 5.31 in L |
| Buy American Compliant | C |
| Catalog Number | CGL-125 |
| Connection | Blade end x blade end |
| Country of Origin | MX |
| Currency | USD |
| Element | Dual |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.7800 lb |
| Gross Weight per Pack Metric | 0.34 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Height | 1.75 in |
| Height [Metric] | 4.4450 cm |
| Length | 1.75 in |
| Length [Metric] | 4.4450 cm |
| Material | Fiberglass |
| Mounting Type | Stud |
| Series | CGL |
| Size | 1.50 In Diameter X 5.31 In Length |
| Standard | Not Applicable |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 106CE Certified |
| Sub Brand | Bussmann Series |
| Terminal Type | Blade |
| Type | Fuse |
| UNSPSC | 39121626 |
| UPC 11 | 05171210046 |
| UPC 12 | 051712100465 |
| Width | 6.00 in |
| Width [Metric] | 15.2400 cm |
| Stock Status | NONSTOCK |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 125 A |
| Body Type | Cartridge |
| Class | Class C |
| Interrupt Rating | 40 kAIC at 250 Vdc200 kAIC at 600 Vac kA |
| Voltage Rating | 600 VAC |
| Ind Facilities & Factories - Facility: Safety and Security Systems |
| Current limiting HRCII-C fuses designed to withstand inrush currents on typical motor start-ups while offering high current limitation in the short circuit region |
| Close sizing to loads allows using smaller and less costly switches |
| Provides a higher degree of short circuit protection |
| Helps protect motors against burnout from overloads |
| 200 kA at 600 VAC, 40 kA at 250 VDC interrupt rating |
| Close sizing to loads allows using smaller and less costly switches |
| Provides a higher degree of short circuit protection |
| Helps protect motors against burnout from overloads |
| 200 kA (RMS symmetrical) interrupt rating |
