Bussmann

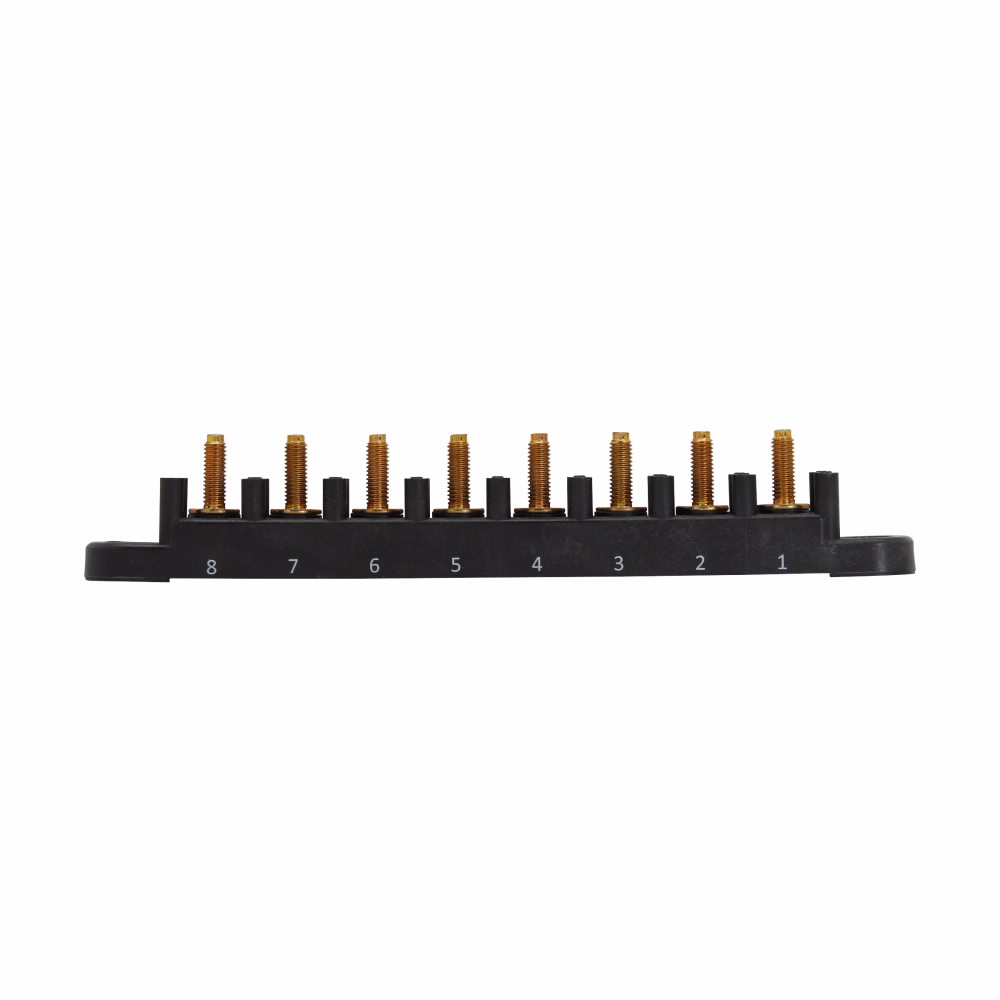

Bussmann® C1938 Feed-Thru Stud Junction Block, 250 A, 1 Poles, Thermoplastic
Custom_Product_Images_Illustration
Bussmann
Bussmann® C1938 Feed-Thru Stud Junction Block, 250 A, 1 Poles, Thermoplastic
SKUPDW~3429799
MFGR #C1938
Your Cost: $8.35/ea
List: Bussmann Junction Block, Feed-Thru Stud, 250 A, 1 Pole, Thermoplastic, Black, 2.06 in L x 0.75 in W
Bussmann Junction Block, Feed-Thru Stud, 250 A, 1 Pole, Thermoplastic, Black, 2.06 in L x 0.75 in W
Application Transformers, Communication, Computer Power Sections, Vehicle Electrical Systems ARRA Compliant C Buy American Compliant C Catalog Number C1938 Color Black Connection 3/8 In-16 TPI Stud, Feed Through Country of Origin US Currency USD Dimensions 2.06 in L x 0.75 in W EU RoHS Indicator C Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Height 2.60 in Height [Metric] 6.6040 cm Length 2.25 in Length [Metric] 5.7150 cm Number Of Poles 1 Size 2.06 In Width X 0.75 In Height Standard Contact factory,RoHS Compliant Standards RoHS Compliant Type Feed-Through Stud UNSPSC 39121624 UPC 11 05171284703 UPC 12 051712847032 Width 0.75 in Width [Metric] 1.9050 cm Stock Status NONSTOCK Brand Bussmann Manufacturer Eaton Amperage Rating 250 A Material Thermoplastic Transformers, Communication, Computer Power Sections, Vehicle Electrical Systems Torque Rating 150 Lb-In Modular design offers design and manufacturing flexibility Feed-through junction blocks are copper alloy Feed thru or stand alone mount options for transformers, communication and computer power sections along with various vehicle electrical systems 150 in-lb maximum torque 3/8-16 thread/stud size 2 mounting holes 0.22 in diameter with 0.41 in diameter, 0.69 in bore x 0.14 in deep mounting hole Zinc-plated brass contact
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Transformers, Communication, Computer Power Sections, Vehicle Electrical Systems |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | C1938 |
| Color | Black |
| Connection | 3/8 In-16 TPI Stud, Feed Through |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 2.06 in L x 0.75 in W |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Height | 2.60 in |
| Height [Metric] | 6.6040 cm |
| Length | 2.25 in |
| Length [Metric] | 5.7150 cm |
| Number Of Poles | 1 |
| Size | 2.06 In Width X 0.75 In Height |
| Standard | Contact factory,RoHS Compliant |
| Standards | RoHS Compliant |
| Type | Feed-Through Stud |
| UNSPSC | 39121624 |
| UPC 11 | 05171284703 |
| UPC 12 | 051712847032 |
| Width | 0.75 in |
| Width [Metric] | 1.9050 cm |
| Stock Status | NONSTOCK |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 250 A |
| Material | Thermoplastic |
| Transformers, Communication, Computer Power Sections, Vehicle Electrical Systems |
| Torque Rating 150 Lb-In |
| Modular design offers design and manufacturing flexibility |
| Feed-through junction blocks are copper alloy |
| Feed thru or stand alone mount options for transformers, communication and computer power sections along with various vehicle electrical systems |
| 150 in-lb maximum torque |
| 3/8-16 thread/stud size |
| 2 mounting holes |
| 0.22 in diameter with 0.41 in diameter, 0.69 in bore x 0.14 in deep mounting hole |
| Zinc-plated brass contact |
