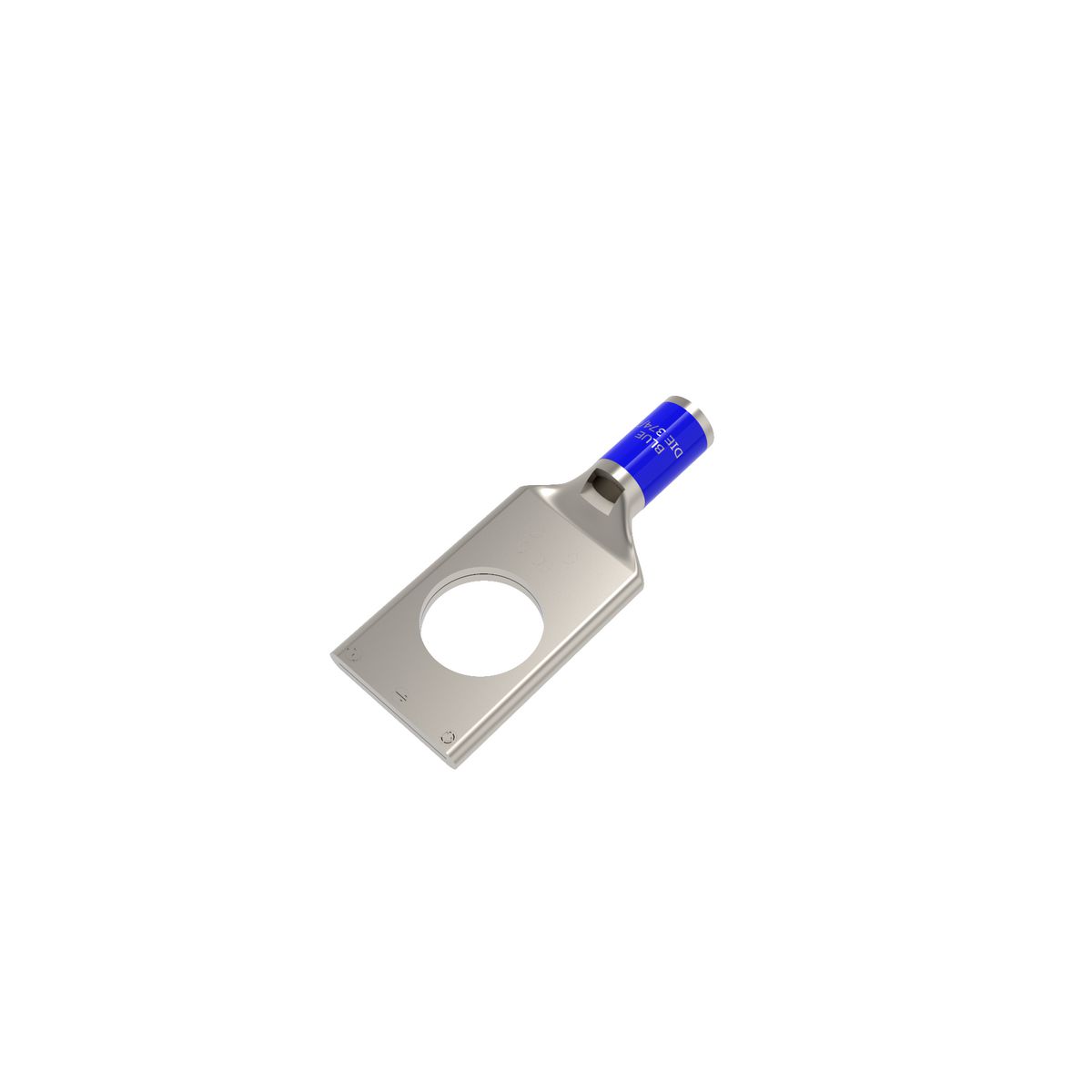

Burndy® YA6CL6 HYLUG™ YA-L 1-Hole Compression Lug With Inspection Window, 6 AWG Stranded Copper Conductor, 1/2 in Stud
Lug Compression Connectors
85530
MFG #: YA6CL6
BURNDY®
5.70000
/ ea
BURNDY'™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
- Brochure URL - 10969_39LTY87P2W5NVGQI.pdf(Brochure URL)
- Brochure URL - BURNDY_YA6CL6_Specsheet.pdf(Brochure URL)
- http://www.burndy.com(Seller Home Page URL)
- Install Instructions 1 URL - 10969_RE0TL53U196VKGYW.pdf(Install Instructions 1 URL)
- http://www.burndy.com/(Seller Home Page URL)
- Catalog URL - IDW_DOCUMENT_e0571f61ee5945a93fdd93ccddf1c5512dcba4a624be023356e8f45f8ef4a537.pdf(Catalog URL)
- Tech Drawing URL - 10969_ID-DRW-v1-SD_079848-01.pdf(Tech Drawing URL)
- Line Drawing URL(Line Drawing URL)
- Tech Drawing URL - SD..079848-01.pdf(Tech Drawing URL)
- Spec Sheet URL - YA6CL6.pdf(Spec Sheet URL)
- Spec Sheet URL - 10969_IJ2RSFQ6B78TD45X.pdf(Spec Sheet URL)
- Line Drawing URL - 10969_1C7NADL9FR8IV0MX.pdf(Line Drawing URL)
- Install Instructions 1 URL - Copper_Code_Standard_Barrel_Terminal_Tooling_Instructions.pdf(Install Instructions 1 URL)
- Tech Drawing URL - ID-DRW-v1-SD_079848-01.pdf(Tech Drawing URL)
- Applications
- Features
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 7/16 IN, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Die Index: 7, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W5CVT, W5CRT, X5CRT, X8CART Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W5CVT,W5CRT, X5CRT, X8CART Die, (1), Y35, Y39, Y750, PAT750 Tool, U5CRT, UBCABT Die, (1), Y46 Tool, U5CRT, UBCABT Die With PUADP-1 Adapter, (1), Color Code: Blue, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, Y1MRTC, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1) |
| Standard, short barrel |
| 0.53 in hole center to end |
