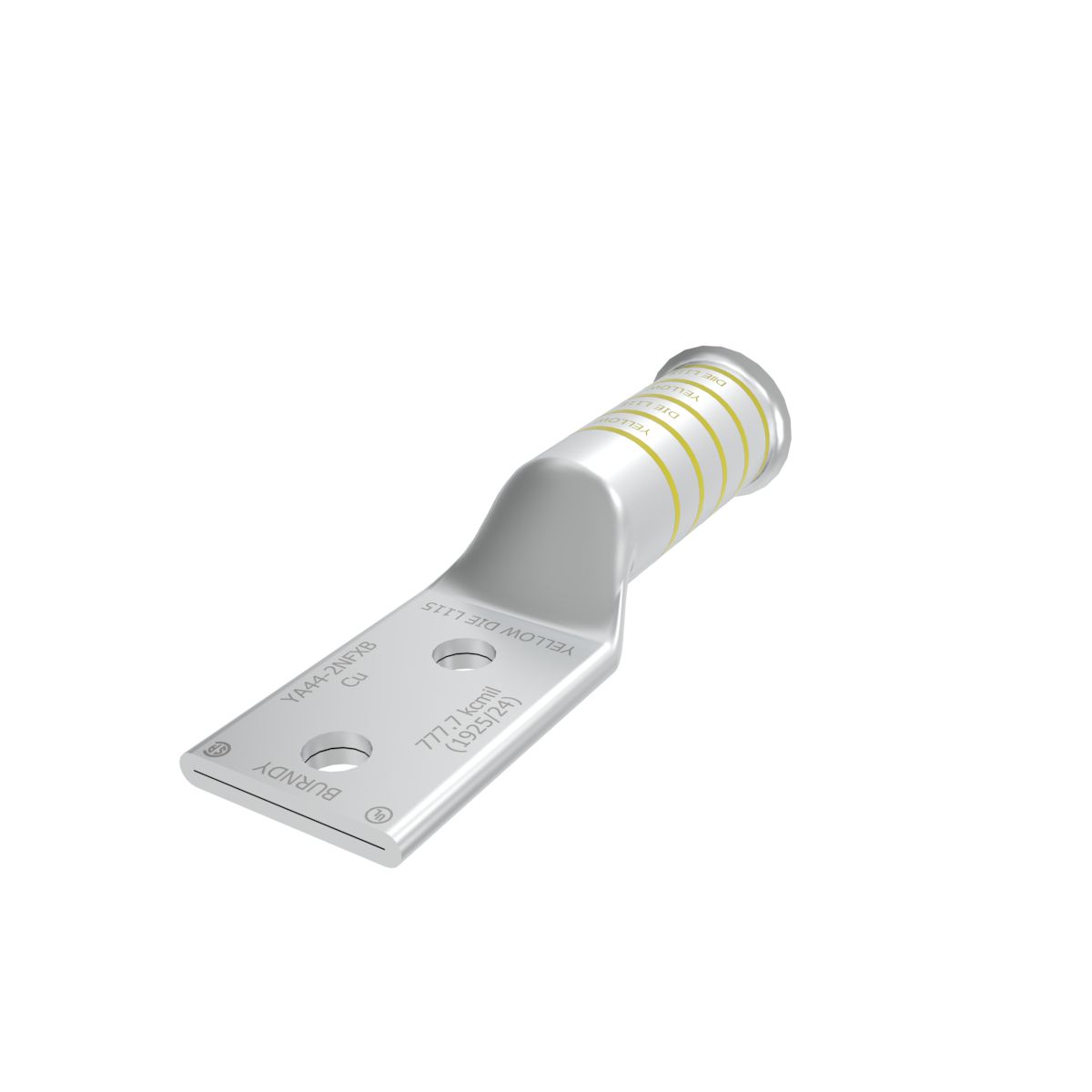

Burndy® YA442NFXB HYLUG™ YA Series 2-Hole Compression Lug Without Inspection Window, 646 kcmil, 1/2 in Stud, L115, Copper
Lug Compression Connectors
194081
MFG #: YA442NFXB
BURNDY®
294.85000
/ ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.
- Brochure URL - 10969_ID-SPE-v1-YA442NFXB.pdf(Brochure URL)
- Brochure URL - BURNDY_YA442NFXB_Specsheet.pdf(Brochure URL)
- Install Instructions 1 URL - 10969_W2H9ZU7NOTYXS0CE.pdf(Install Instructions 1 URL)
- http://www.burndy.com/(Seller Home Page URL)
- http://www.burndy.com(Seller Home Page URL)
- Catalog URL - IDW_DOCUMENT_b84d14c82d8e4d4344c0e02f3b6d63b92ff562945e2c57166ef036e276bd3865.pdf(Catalog URL)
- Tech Drawing 1 URL - BURNDY_YA312NFXB_Technical Drawing.pdf(Tech Drawing 1 URL)
- Tech Drawing URL - 10969_ID-DRW-v1-SE_208074-01.pdf(Tech Drawing URL)
- Spec Sheet URL - YA442NFXB.pdf(Spec Sheet URL)
- Tech Drawing URL - ID-DRW-v1-SE_208074-01.pdf(Tech Drawing URL)
- Spec Sheet URL - 10969_1F5JI9PZA6B8TE4Q.pdf(Spec Sheet URL)
- Line Drawing URL(Line Drawing URL)
- Install Instructions 1 URL - Copper_Flex_Long_Barrel_Terminal_Tool_Tables_Instructions.pdf(Install Instructions 1 URL)
- Line Drawing URL - 10969_ID-DRW-v1-SE_208074-01.pdf(Line Drawing URL)
- Tech Drawing URL - SE208074.pdf(Tech Drawing URL)
- Applications
- Features
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 3-7/16 IN, Tongue Angle: Straight, Die Index: L115, Temperature Rating: 90 DEG C, Color Code: Yellow, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U44XRT Die, (4), Y46 Tool, U44XRT Die With PUADP-1 Adapter, (4), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (3), Conductor Type: Flexible Copper |
| Used for U44XRT U-die |
| 646 flex, 646.4 (1600/NO 24) DLO size conductor size |
| Flex conductor |
| 3-5/16 in L Strip, 1.75 in Stud Hole Spacing |
| Electro Tin Plated Copper |
