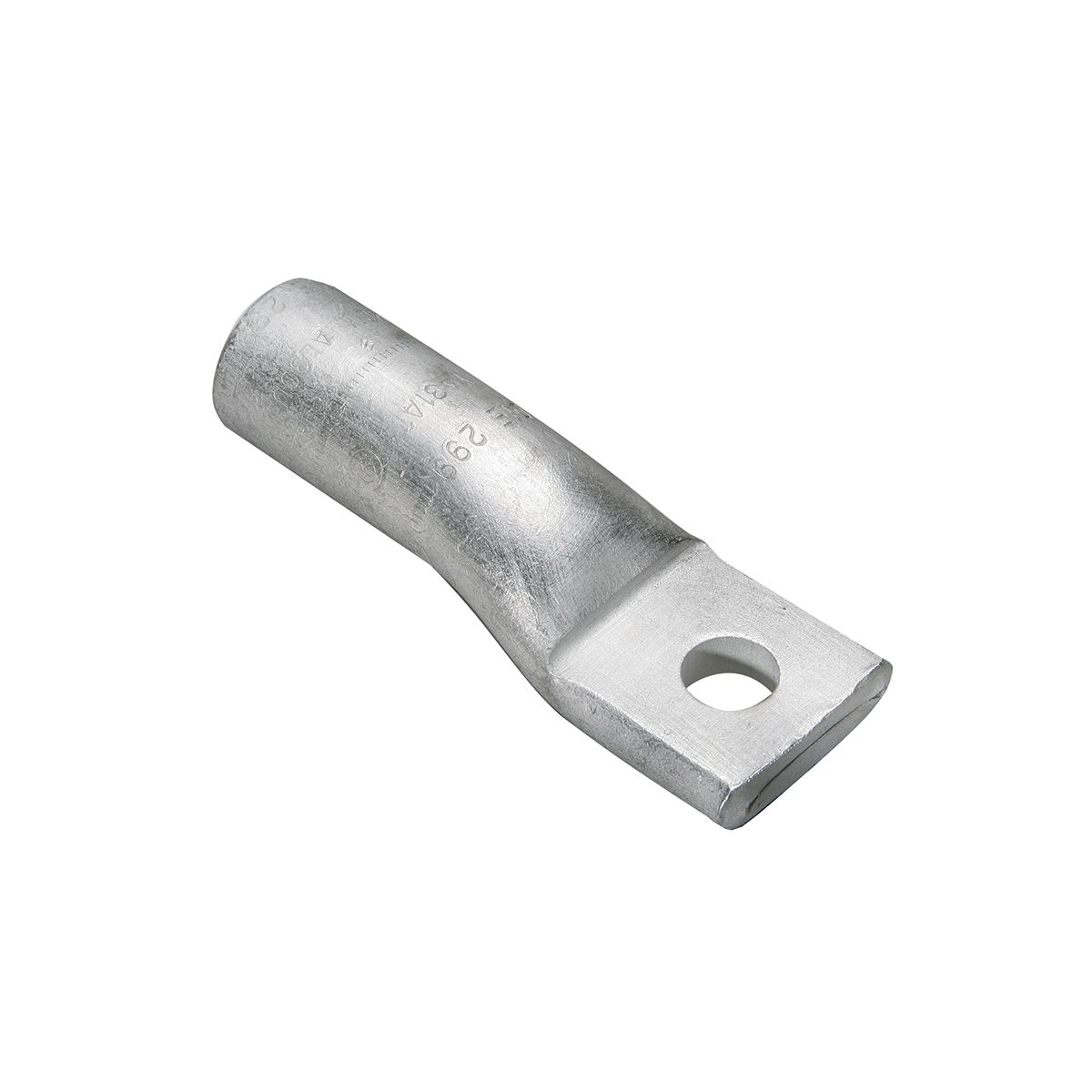

Burndy® YA31A1 HYLUG™ YA-A 1-Hole Non-Insulated Compression Lug Without Inspection Window, 350 kcmil Aluminum/Copper Conductor
Lugs
19639
MFG #: YA31A1
BURNDY®
21.16000
/ ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance. Aluminum compression connectors are manufactured from high conductivity, high purity wrought aluminum. They are designed with sufficient mass and are electro-tin plated to minimize corrosion due to galvanic action between dissimilar metals. The connector barrels are pre-filled with PENETROX®, BURNDY's oxide inhibiting compound.
- Brochure URL - 10969_HS78PXM3DKOVCNGR.pdf(Brochure URL)
- Brochure URL - BURNDY_YA31A1_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_e35dc91794ff82f603a23fb5a4951164d4a0f054857654108271e96c4240a267.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Install Instructions 1 URL - 10969_XZMWISK35NQ1TEHO.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - Aluminum Installation Instructions.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_JCGH6Z7DKRB38ONU.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_1XYNUA20B9ZRCK43.pdf(Spec Sheet URL)
- Spec Sheet URL - YA31A1.pdf(Spec Sheet URL)
- Tech Drawing URL - SD..073935-01.pdf(Tech Drawing URL)
- Tech Drawing URL - SD.073935-01.pdf(Tech Drawing URL)
- Applications
- Features
Wire Termination |
Features: Type YA-A Aluminum Tin-Plated Compression HYLUG Terminals Are Dual-Rated And Designed For Use On Both Aluminum And Copper Conductors From #12 Solid Through 2000 KCMIL, They Are Designed For Heavy Duty Applications To 35 KV, YA-A Terminals Are Prefilled With PENETROX, And Assembled With Color-Coded End Caps, Available With One, Two, And Four-Hole NEMA Tongues, The Aluminum HYLUG Terminals Are Designed For A Permanent Trouble-Free Electrical Termination, Manufactured From High Conductivity, Wrought Aluminum With Heavy Duty Wall Thickness: Provides Maximum Conductivity, Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Corrosion Resistance, Internally Bevelled Barrel: Provides Easy Cable Insertion, Meets UL486B 90 DEG C Requirements: Provides A Quality Electrical Dual Connection, Connector Is Clearly Marked With Wire Size, Die Index, Color-Code And The Proper Number And Location Of Crimps: Provides Easy Identification And Tooling Recommendation For A Proper Compression Which Forms A Homogeneous Mass Resulting In An Excellent Electrical Connection, Factory Prefilled With PENETROX Oxide Inhibiting Compound: Oxide Inhibiting Compound Contains Homogeneously Suspended Metallic Particles To Penetrate The Wires Oxides, Establish Electrical Continuity And Forms An Airtight Connection, Color-Coded End Caps Inserted In Barrel End: Prevents Foreign Materials From Entering And Contaminating The Connector Prior To Usage Plus Identifies The Proper Color-Coded Die For A Reliable Connection, UL Listed 90 DEG C, 600 V - 35 KV, Finish: Electro-Tin Plated, Wire Strip Length: 2-1/8 IN, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750, Tool, U31ART Die, (2), Y46 Tool, U31ART Die With PUADP-1 Adapter, (2), Color Code: Brown, Die Index: 299, Dieless Tools (number Of Crimps): Hydraulic HYPRESS: Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (3) |
Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness |
Provides maximum conductivity, low resistance and ductility for an excellent combination of electrical and crimp forming properties |
Electro tin plated provides durable long lasting corrosion resistance |
Internally beveled barrel |
Provides easy cable insertion |
Provides a quality electrical dual connection |
Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps |
Provides easy identification and tooling recommendation for a proper compression which forms a homogeneous mass resulting in an excellent electrical connection |
Factory prefilled with PENETROX® oxide inhibiting compound |
Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection |
Color coded end caps inserted in barrel end |
Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color coded die for a reliable connection |
Type YA-A aluminum tin plated compression HYLUG017 terminals are dual rated and designed for use on both aluminum and copper conductors from #12 solid through 2000 kcmil |
They are designed for heavy duty applications to 35 kV |
YA-A terminals are prefilled with PENETROX® and assembled with color coded end caps |
Used for Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V crimpers |
Straight tongue angle |
350 kcmil stranded conductor |
0.63 in hole center to end, 0.74 in hole center to barrel |
Without inspection window |
