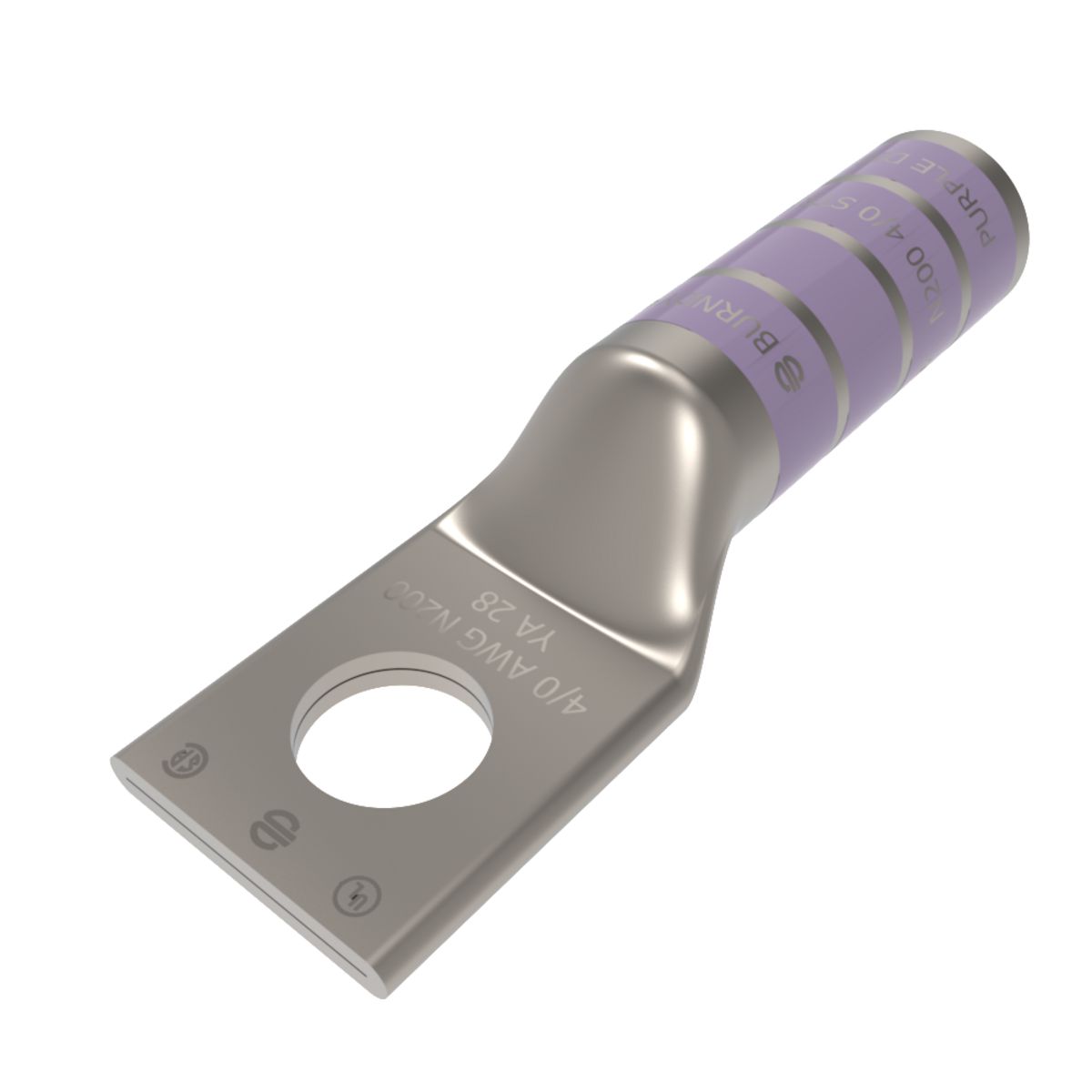

Burndy® YA28TC38 HYLUG™ YA-TC 1-Hole Compression Lug Without Inspection Window, 4/0 AWG Stranded Copper Conductor, 3/8 in Stud
Lugs
303632
MFG #: YA28TC38
BURNDY®
10.05000
/ ea
BURNDY'™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
- Brochure URL - 10969_JIURFMGO4L6N37ZH.pdf(Brochure URL)
- Brochure URL - BURNDY_YA28TC38_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_bd4cf23828e8a52856167549b8690a186c529cdbdc60700c7d051c7591e6ad25.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Install Instructions 1 URL - 10969_M6IT3GNVDBYQ1JEX.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - Copper_Code_Long_Barrel_Terminal_Tool_Tables_Instructions.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_ID-DRW-v1-SD_079849-04.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_GNLS4V36F2A75ZJD.pdf(Spec Sheet URL)
- Tech Drawing URL - ID-DRW-v1-SD_079849-04.pdf(Tech Drawing URL)
- Spec Sheet URL - YA28TC38.pdf(Spec Sheet URL)
- Tech Drawing URL - SD..079849-04.pdf(Tech Drawing URL)
- Tech Drawing URL - 10969_ID-DRW-v1-SD_079849-04.pdf(Tech Drawing URL)
- Applications
- Features
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 15, Tongue Angle: Straight, Wire Strip Length: 1-11/16 IN, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT Die, (4), X28RT Die, (6), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (4), X28RT Die, (6), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (2), Y46 Tool, U28RT Die With PUADP-1 Adapter, (2), Color Code: Purple, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), MRC840 Tool, (4), Conductor Type: Commercial Stranded Copper |
| Die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, W28VT, W28RT die, (4), X28RT die, (6), hydraulic: BCT500HS, Y500CTHS tool, W28VT, W28RT die, (4), X28RT die, (6), Y35, Y39, Y750, PAT750 tool, U28RT die, (2), Y46 tool, U28RT die with PUADP-1 adapter, (2), color code: purple, dieless tools (number of crimps): Y644HS tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 tool, (2), MRC840 tool, (4), conductor type: commercial stranded copper |
| Without inspection window |
| 0.41 in hole center to end |
