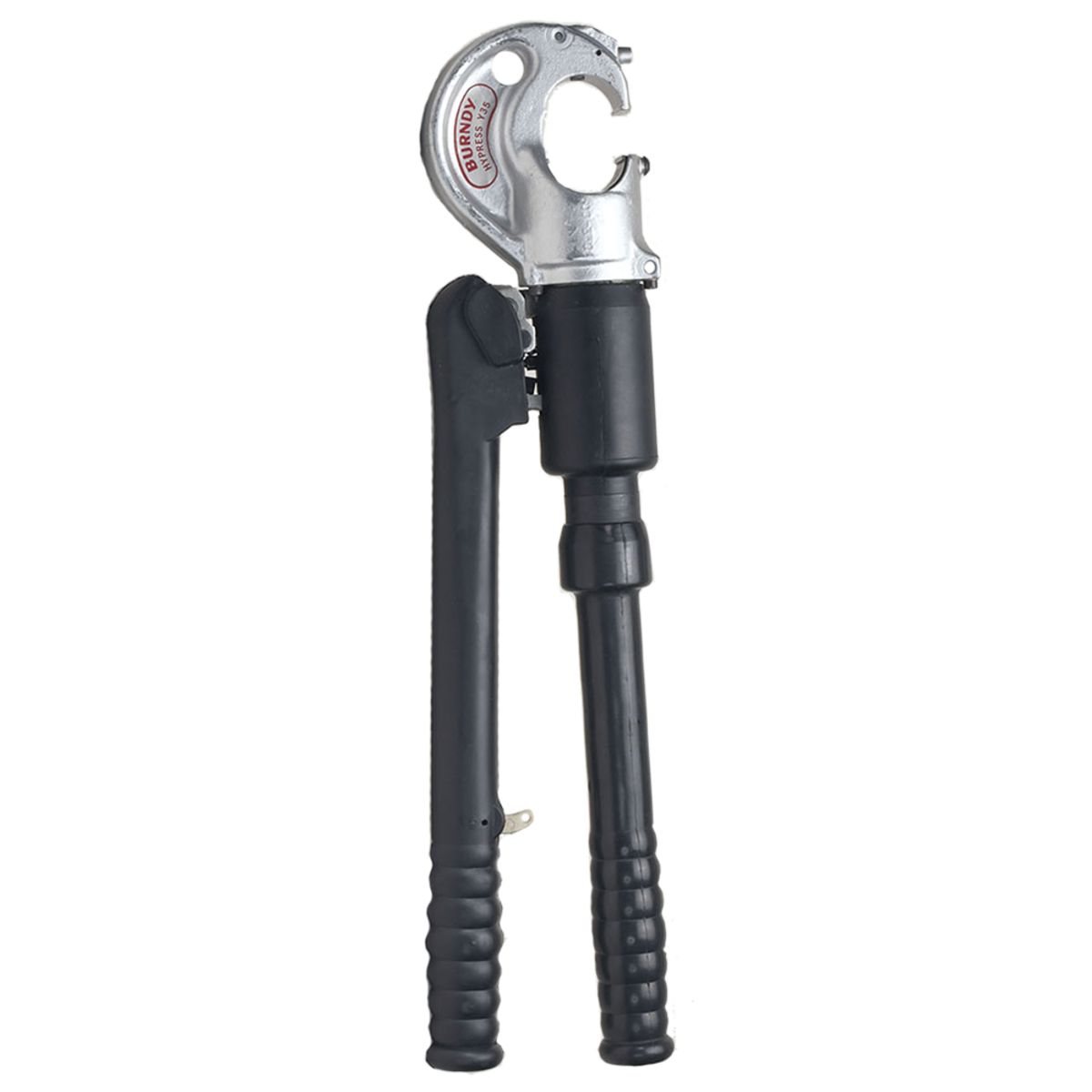

Burndy® Y35 Hypress™ Self-Contained Hydraulic Crimping Tool, 8 AWG to 750 kcmil Aluminum Crimping, 12 ton
Hydraulic Crimping Tools
268122
MFG #: Y35
BURNDY®
3874.62000
/ ea
The Y35 HYPRESS™ Tool incorporates a C-shaped, rotatable head for overhead line work and compression grounding applications. The hook style head with extensive ram travel provides for easy tapping and splicing of overhead lines as well as HYGROUND® compression grounding systems.
- Brochure URL - 10969_J5CRM71V4KDIAL9G.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_d2c3f37ead307d03c381575d08c8d6268c676f0f3a861a9c75c8ea4a06afd93b.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- Spec Sheet URL - 10969_Z8CF5LUI61YRD3G2.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-SD_032005-01.pdf(Tech Drawing URL)
- Applications
- Features
| Crimping |
| Compact C shaped head allows easy placement and removal from continuous conductor lengths, Easy to position tool for work with 180° head rotation, Body and handles covered with 3/16 molded rubber for tool impact protection, Easy die change accomplished with push button die locks |
| Compact "C" shaped head allows easy placement and removal from continuous conductor lengths |
| Easy to position tool for work with 180 deg head rotation |
| Versatile and economical-tool works with all commonly used copper, aluminum and ACSR conductors from 6 to 556.5 26/7 AWG stranding |
| Body and handles covered with 3/16 in molded rubber for tool impact protection |
| Easy die change accomplished with push button die locks |
| Quality assurance is provided with automatic 10000 psi blow off pressure release valve for positive crimping |
| Rapid ram advance reduces installation time by eliminating need to pump handles to advance ram to connector |
| Saves installation time with trigger controlled return release which returns ram to its preset starting point |
| Long continuous usage is aided with comfort grip handles |
| Upto 3/4 in ground rod |
| 0.95 in jaw opening |
| Body and handles molded covering |
| For copper 8 AWG stranded to 500 kcmil code cables (YGH, YGHA, YGF grounding terminals, YGS, YGHS splices-grounding), copper 8 AWG stranded to kcmil and up to 3/4 in ground rod (YGHC-C, YGHP-C YGHR-C grounding taps), copper 8 AWG stranded to 750 kcmil code cables, N30 to N500 navy cables, flexible and extra flex up to 400 kcmil, aluminum 8 AWG stranded to 750 kcmil code cables (YA-A, AYP, AYPO terminals, up to 350 kcmil splices) |
| 8 AWG to 750 kcmil/8 AWG to 750 kcmil aluminum connection crimping capacity |
