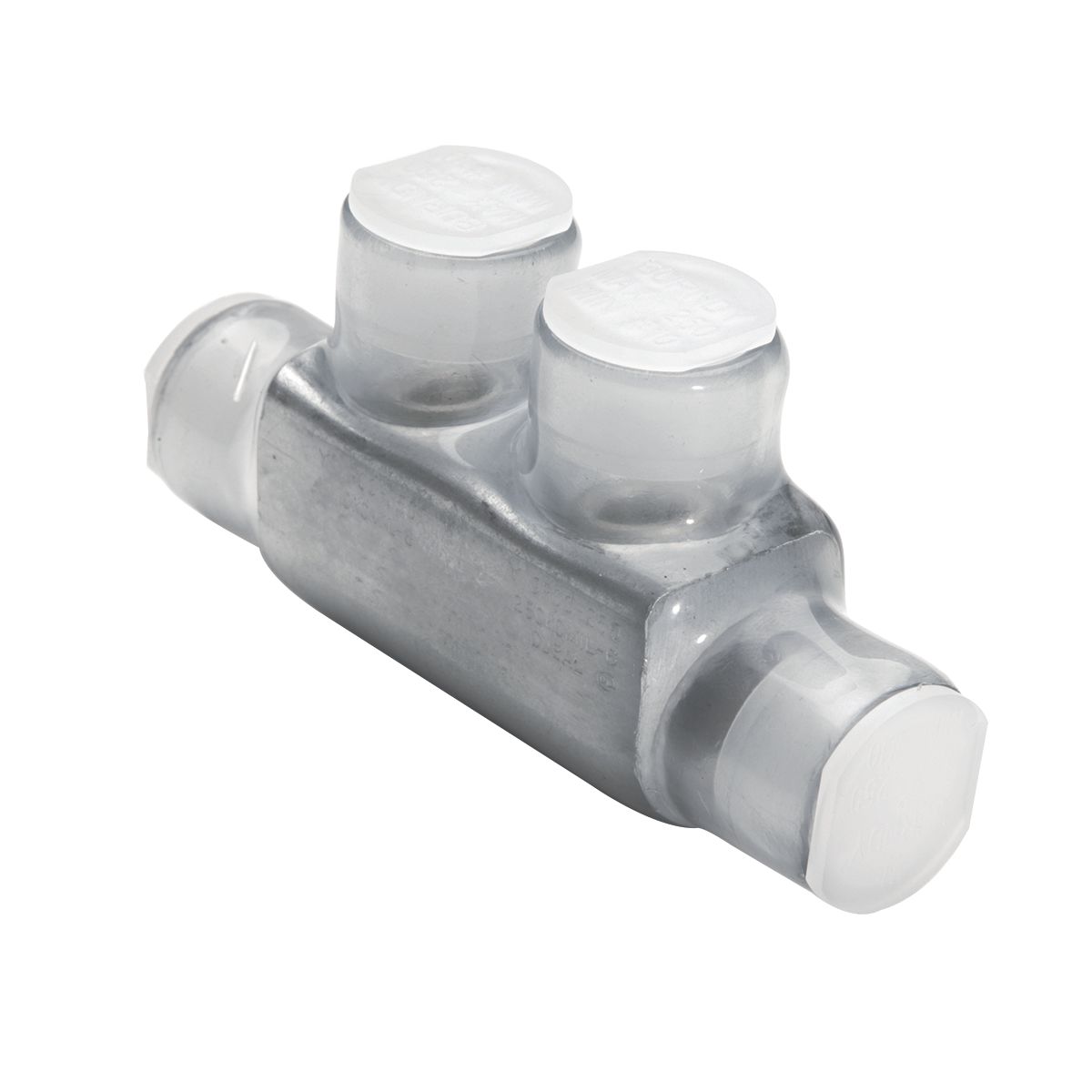

Burndy® UNITAP™ BISR500 In-Line Splice Reducer, 6 AWG to 500 kcmil Aluminum/Copper Conductor, 2 Screws, Aluminum Alloy
Mechanical Cable Splices
19445
MFG #: BISR500
BURNDY®
60.54000
/ ea
- Brochure URL - 10969_R8VQ6U9SAO4DCXYF.pdf(Brochure URL)
- Brochure URL - BURNDY_BISR500_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_01850ea7cab3b32e69167dada0b5cc048e7c9c1ef27503eef43cd5ae8e52aa6e.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_ID-DRW-v1-sc210991-03.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_LGS4W59P1ID836MQ.pdf(Spec Sheet URL)
- Spec Sheet URL - BISR500.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-sc210991-03.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-sc210991-03.pdf(Tech Drawing URL)
- Tech Drawing URL - sc210991-03.pdf(Tech Drawing URL)
- Applications
- Features
| For Indoor Use Only |
| Features: Clear Plastisol Covered Al6061-T6 Aluminum Body: Saves Time, Lowers Installation Costs, Eliminates Taping, Clear Plastisol: Allows Visual Confirmation That Conductor Is Properly Inserted, Oxide Inhibitor Pre-Installed: Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking: Reduces Number Of Connectors Carried In Inventory, In-Line Splice/Reductions Are Made Quickly And Easily With The Unitap Line Of Connectors, UL486B Listed, Dual-Rated AL9CU For Any Stranded Copper Or Stranded Aluminum Applications, 600 Volt, 90 DEG C, Conductor Type: Run: Stranded Copper Or Stranded Aluminum, Conductor Size (run - Range): 6 AWG - 500 KCMIL, Wire Strip Length: 1-1/2 IN, Hex Size (key): 1/2 IN, Number Of Ports: 2, Type Of Insulation: Clear Plastisol, Torque: 375 IN-LB |
| Clear plastisol covered AL6061-T6 aluminum body saves time, lowers installation costs |
| Eliminates taping, clear plastisol allows visual confirmation that conductor is properly inserted |
| Oxide inhibitor pre-installed:inhibits moisture and contaminants from entering the contact area, range-taking |
| Reduces number of connectors carried in inventory |
| In-line splice/reductions are made quickly and easily with the unitap line of connectors |
