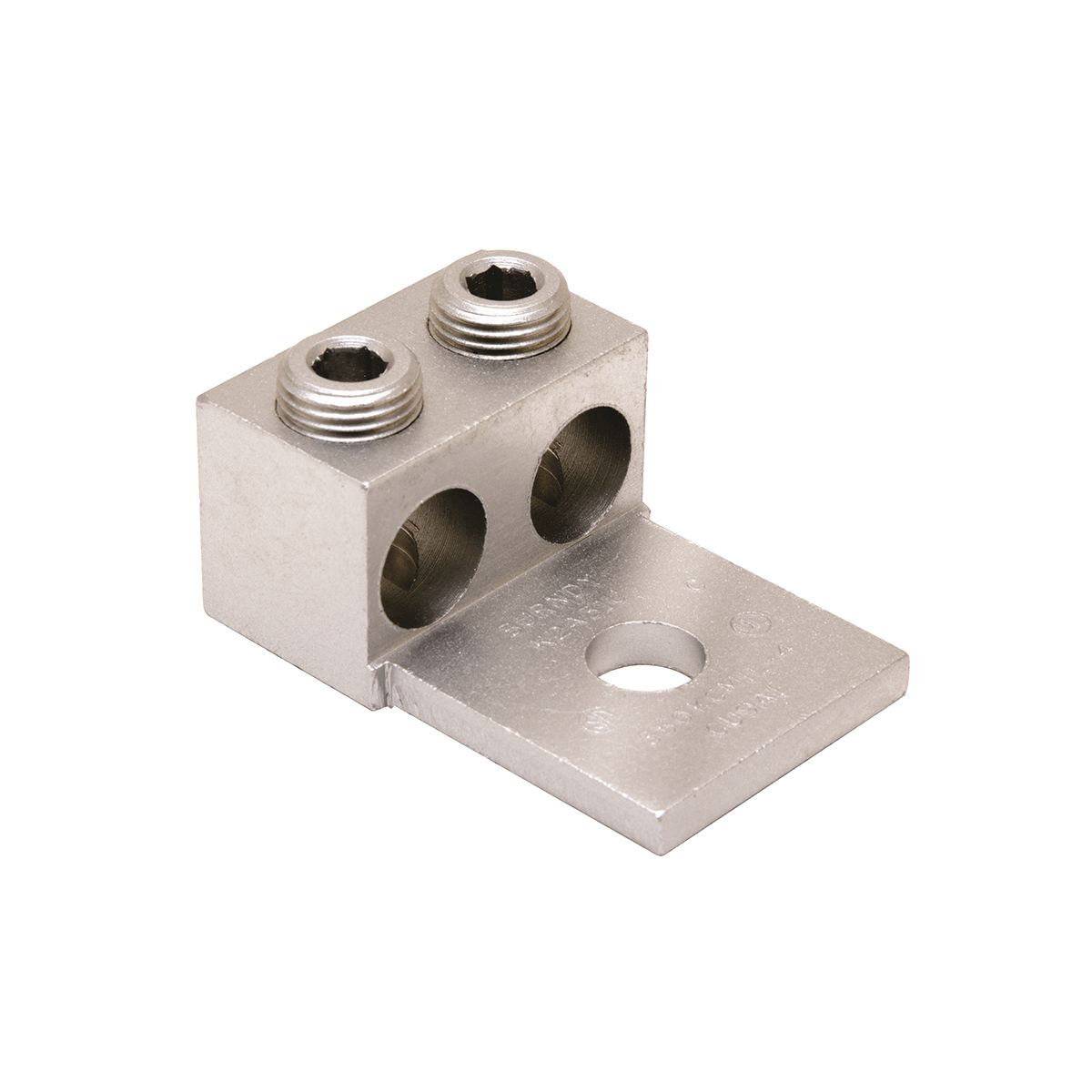

Burndy® K2A29U K2A-U Dual Rated Universal Terminal Lug, 6 AWG to 250 kcmil Aluminum/Stranded Copper Conductor, 3/8 in Stud
Lugs
19616
MFG #: K2A29U
BURNDY®
8.28000
/ ea
- Brochure URL - 10969_X39AWH15PUCKVJLO.pdf(Brochure URL)
- Brochure URL - BURNDY_K2A29U_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_65385c5cee5e43b41d80cd0ee28284f63de22b66c388e95d7d1953d50fd484cf.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_8JUDOT9GQ7RVIKMF.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_X4TQDU9R5CFB2AOK.pdf(Spec Sheet URL)
- Spec Sheet URL - K2A29U.pdf(Spec Sheet URL)
- Tech Drawing URL - SE210997-01.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-SE210997-01.pdf(Tech Drawing URL)
- Tech Drawing URL - 10969_8JUDOT9GQ7RVIKMF.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/DzVhxrg0TQY(Video)
- Applications
- Features
| For Aluminum And Copper Conductors |
| Features: These Dual-Rated Two-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Number Of Screws: 1, Dimension T: 0.25 IN, Stud/bolt Hole Size: 3/8 IN, Dimension D: 1.5 IN, Dimension N: 0.5 IN, Set Screw Type: Allen Key, Installation Torque: 275 IN-LB, Width: 1.66 IN, Length: 2.56 IN, Height: 1.2 IN |
| Dual-rated panelboard lugs are constructed from high strength extruded aluminum alloy and electro tin-plated to provide low contact resistance |
