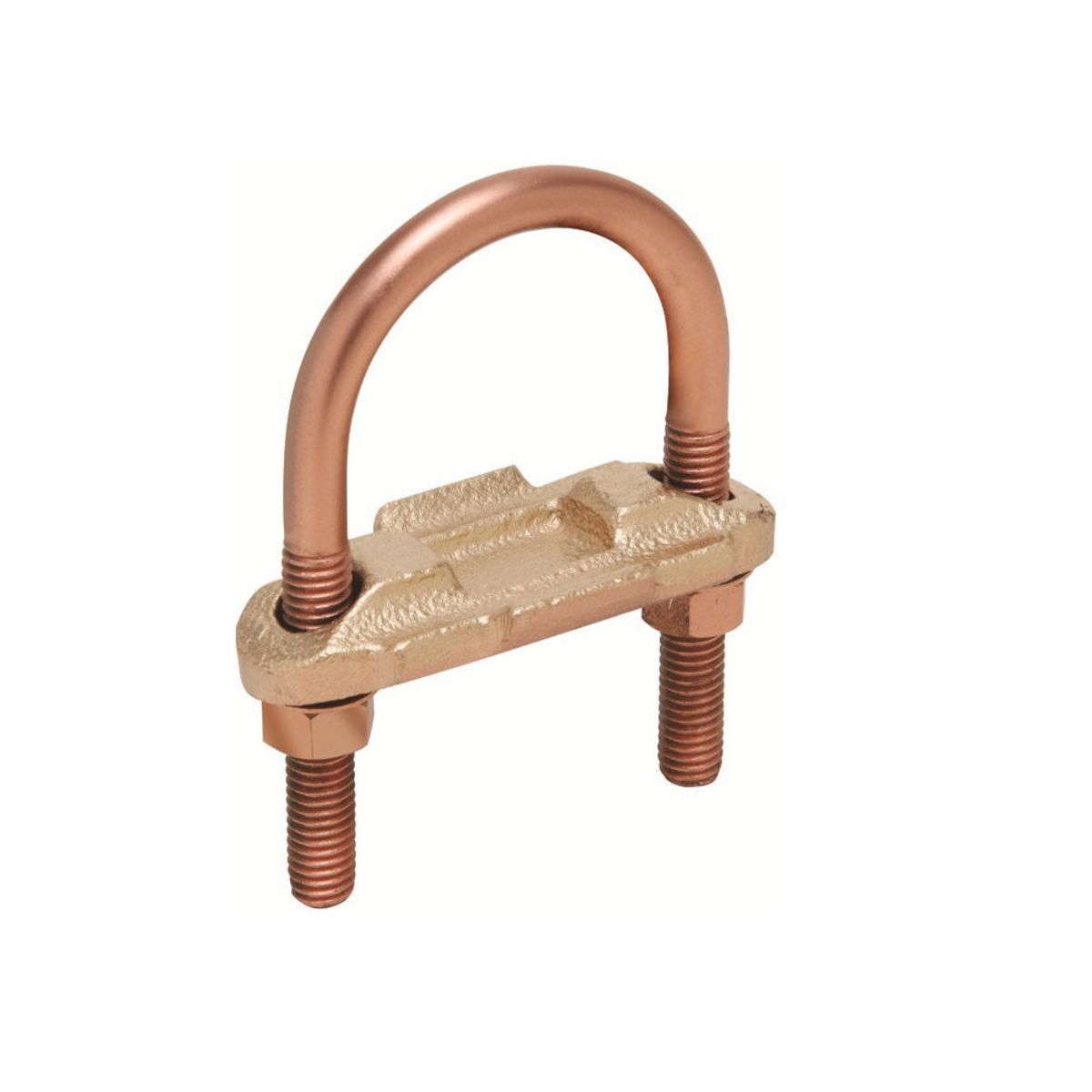

Burndy® GP654CG1 Raised Floor Ground Clamp, 8 to 4 AWG Conductor, Copper
Grounding-Bonding Clamps
216425
MFG #: GP654CG1
BURNDY®
57.42000
/ ea
BURNDY® Ground Clamp, Raised Floor, Solid/Stranded Copper Conductor, 8 to 4 AWG Conductor, Copper, Unplated, 1.31 in L x 2.38 in W
- Brochure URL - 10969_I6U375CY1WDOEJBG.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_88245ba6c442543a9419fccd8889accb80207a2ef5160eb8e3e41711c5267e37.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- Spec Sheet URL - 10969_H6IKJVOZTN5BSMLD.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-sd201549-01.pdf(Tech Drawing URL)
- Applications
- Features
| For Raised Floor Computer Grounding Applications |
| Features: Accepts 1 Or 2 Ground Conductors, Requires Less Connectors To Install Signal Reference Grid, Made Of Copper Alloy, DURIUM U-Bolts, Nuts And Lockwashers, Provides A Low Impedance Ground Path For Maximum Performance, Grounds All Pedestals (Round Or Square), Will Handle From 3/4 IN To 1 IN Round Or Square, Ease Of Installation, Serves 3 Needs, 1. Signal Reference Grid, 2. Static Ground, 3. Fault Current Ground, Connectors Solves All Possible Grounding Problems Found In Computer Applications Today, UL467 Listed, Dimension B: 1.5 IN, Raised Floor: Yes, Pedestal Type: Round, Square, Ground Rod Size: 3/4 - 7/8 IN, Tube (ips) Size: 3/4 - 1 IN, Installation Torque: 240 IN-LB, Width: 2.38 IN, Length: 1.31 IN |
| 240 in-lb installation torque |
| 3-gang/8 in hex/bolt/stud size |
| 8 to 4 AWG (main/primary) conductor size |
| Accepts 1 or 2 ground conductors |
| Requires less connectors to install signal reference grid |
| Provides a low impedance ground path for maximum performance |
| Will handle from 3-gang/4 in to 1 in round or square |
