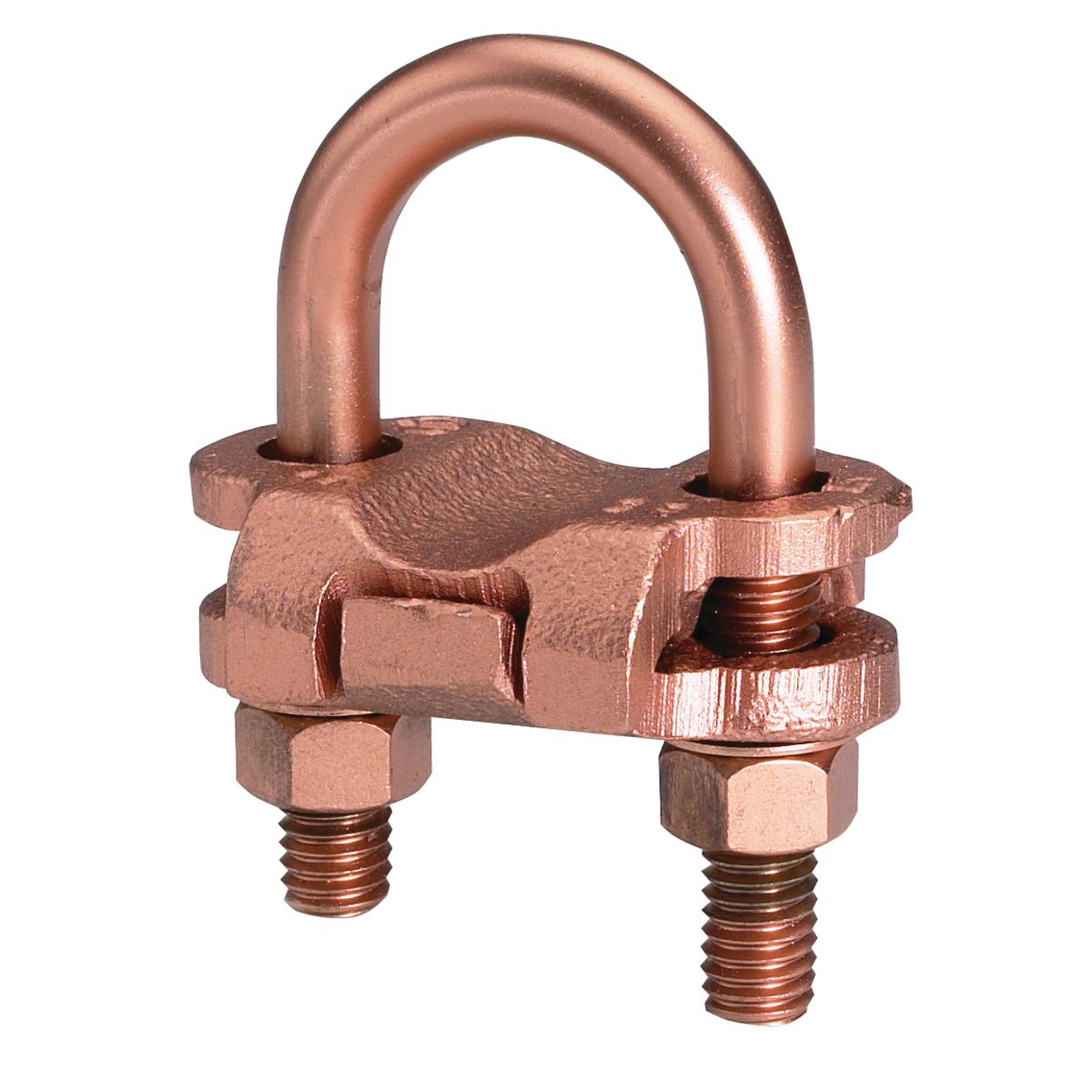

Burndy® GP64526G1 Raised Floor Ground Clamp, 4 AWG, 2/0 AWG Conductor, Copper
Grounding-Bonding Clamps
216424
MFG #: GP64526G1
BURNDY®
62.15000
/ ea
BURNDY® Ground Clamp, Raised Floor, Solid/Stranded Copper Conductor, 4 AWG, 2/0 AWG Conductor, Copper, Unplated, 1.69 in L x 2.38 in W
- Brochure URL - 10969_OJ0G23ACMF7P18T5.pdf(Brochure URL)
- Brochure URL - BURNDY_GP64526G1_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_051a6eabddfdead0c4cd6d9cbfd00147872b8941cbd3fcc55b1efef89de9cb15.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_ID-DRW-v1-sd201549-01.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_PJ97N8O4A3QK1BGH.pdf(Spec Sheet URL)
- Spec Sheet URL - GP64526G1.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-sd201549-01.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-sd201549-01.pdf(Tech Drawing URL)
- Tech Drawing URL - sd201549-01.pdf(Tech Drawing URL)
- Applications
- Features
| For Raised Floor Systems |
| Features: Accepts 1 Or 2 Ground Conductors, Requires Less Connectors To Install Signal Reference Grid, Made Of Copper Alloy, DURIUM U-Bolts, Nuts And Lockwashers, Provides A Low Impedance Ground Path For Maximum Performance, Grounds All Pedestals (Round Or Square), Will Handle From 3/4 IN To 1 IN Round Or Square, Ease Of Installation, Serves 3 Needs, 1, Signal Reference Grid, 2, Static Ground, 3, Fault Current Ground, Connectors Solves All Possible Grounding Problems Found In Computer Applications Today, UL467 Listed, Width: 2.38 IN, Length: 1.69 IN, Pedestal Type: 3/4 - 1 IN Round, 3/4 - 7/8 IN Square, Dimension B: 1.5 IN |
| 240 in-lb installation torque |
| 3-gang/8 in hex/bolt/stud size |
| 4 AWG solid to 2/0 AWG stranded (main/primary) conductor size |
| Accepts 1 or 2 ground conductors |
| Requires less connectors to install signal reference grid |
| Provides a low impedance ground path for maximum performance |
| Will handle from 3-gang/4 in to 1 in round or square |
