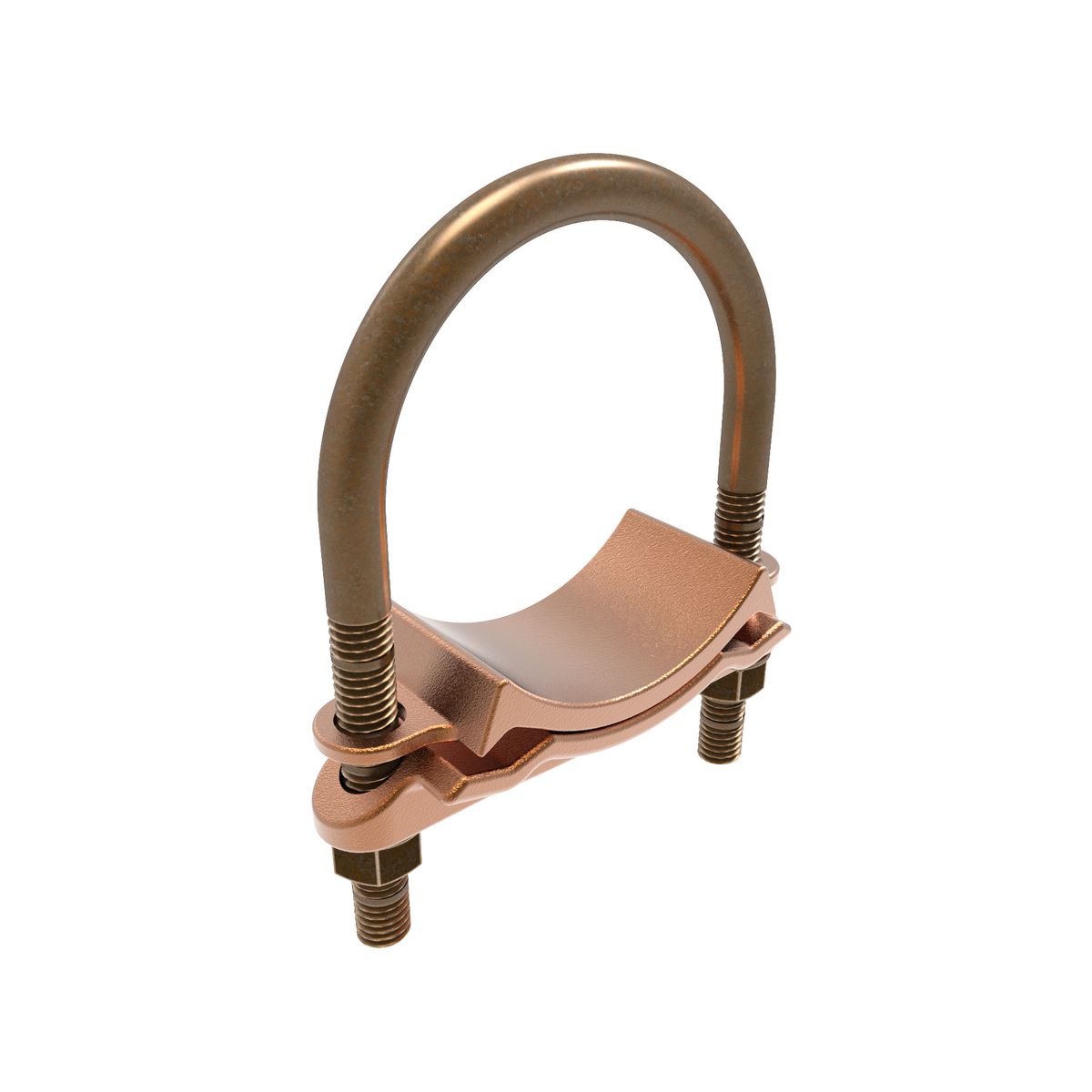

Burndy® GD1926 GD Series Mechanical Grounding Connector, 2-1/2 to 2-7/8 in Rod, 4 to 2/0 AWG Conductor, Copper
Grounding-Bonding Clamps
366649
MFG #: GD1926
BURNDY®
369.98000
/ ea
- Brochure URL - 10969_U8ZVRIO7JDEYM0BP.pdf(Brochure URL)
- Brochure URL - BURNDY_GD1926_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_435211ed4455eb6f3a11574e7a61f349ec5bbf113e9c9502850ce5d84727399a.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_9UIG4MZYHL2P7W5T.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_K7WC3HZDYM0IT64B.pdf(Spec Sheet URL)
- Spec Sheet URL - GD1926.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_9UIG4MZYHL2P7W5T.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-sd013775-01.pdf(Tech Drawing URL)
- Tech Drawing URL - sd013775-01.pdf(Tech Drawing URL)
- Applications
- Features
| For Joining A Range Of Two Parallel Copper Cables To Rod Or Pipe And Burial In Ground Or Concrete |
| Features: High Copper Alloy Ground Connector For Joining A Range Of Two Parallel Cables To Rod Or Pipe, Especially Good For Grounding Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts, And Lockwashers Make The GD Suitable For Burial In Ground Or Concrete, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, Raised Floor: No, Tube (ips) Size: 2-1/2 IN, Ground Rod Size: 2-1/2 - 2-7/8 IN, Height: 5 IN, Width: 4-1/4 IN, Installation Torque: 240 IN-LB |
| High copper alloy ground connector for joining a range of two parallel cables to rod or pipe |
| Especially good for grounding fence posts |
| High copper alloy cast body with durium U-bolts, nuts, and lock washers make the gd suitable for burial in ground or concrete |
| Acceptable for direct burial in earth or concrete |
| 240 in-lb installation torque |
| 3/8 in bolt |
| 4 - 2/0 AWG solid - 4 - 2/0 AWG stranded (main/primary) conductor range |
| 2-1/2 in IPS pipe |
| Made of High Copper Alloy |
