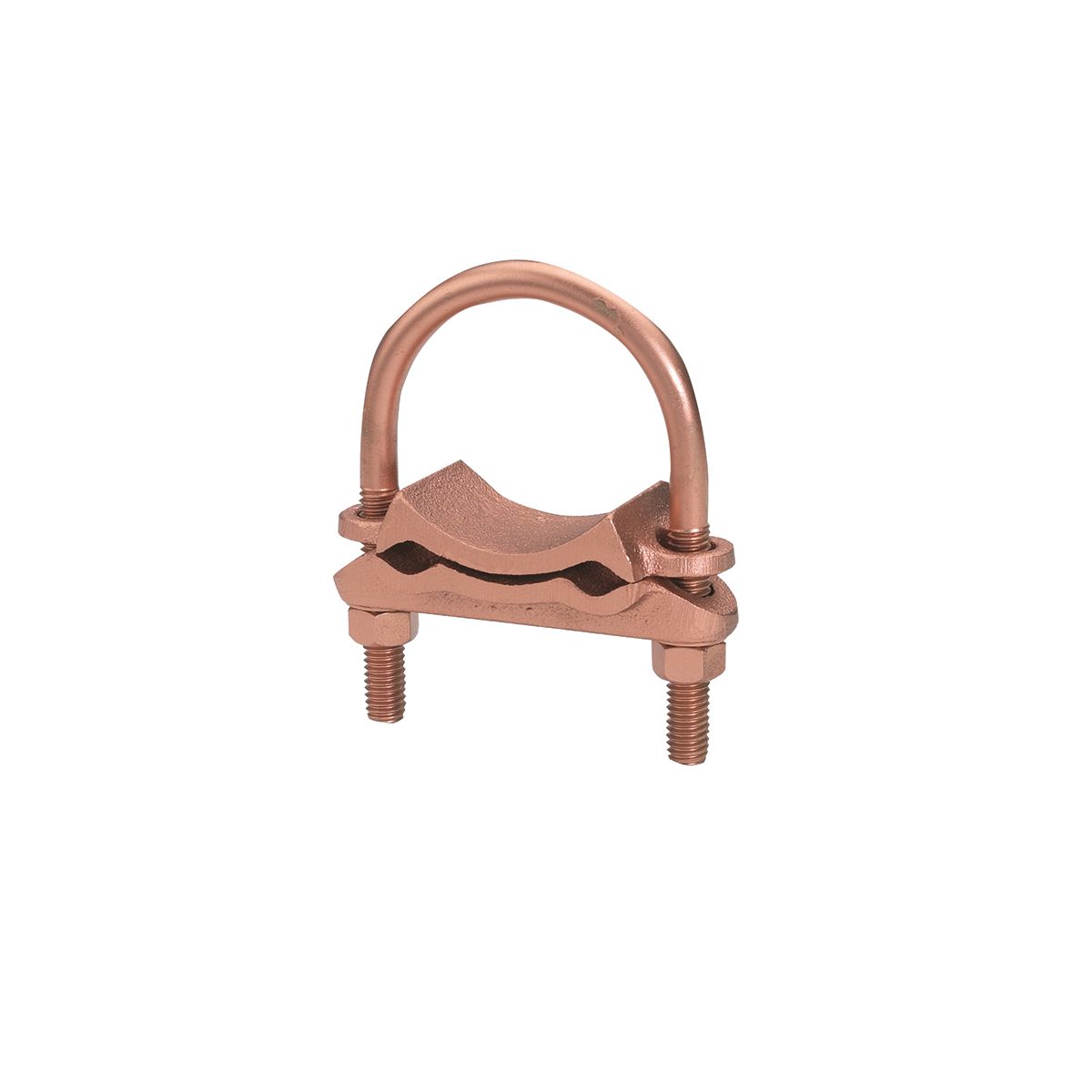

Burndy® GD1526 GD Series Mechanical Grounding Connector, 1-1/8 to 1-1/4 in Rod, 4 to 2/0 AWG Conductor, Copper
Grounding-Bonding Clamps
350676
MFG #: GD1526
BURNDY®
248.20000
/ ea
All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL467 Listed for direct burial applications in earth or concrete.
- Brochure URL - 10969_ID-SPE-v1-GD1526.pdf(Brochure URL)
- Brochure URL - BURNDY_GD1526_Specsheet.pdf(Brochure URL)
- Line Drawing URL(Line Drawing URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Catalog URL - IDW_DOCUMENT_95d150be654339a0e7acfc4129b3fbf422fe2afa2fe7fe41c7d5dabecf44b1c1.pdf(Catalog URL)
- Spec Sheet URL - GD1526.pdf(Spec Sheet URL)
- Spec Sheet URL - ID-SPE-v1-GD1526.pdf(Spec Sheet URL)
- Line Drawing URL - 10969_9UIG4MZYHL2P7W5T.pdf(Line Drawing URL)
- Tech Drawing URL - ID-DRW-v1-sd013775-01.pdf(Tech Drawing URL)
- Tech Drawing URL - sd013775-01.pdf(Tech Drawing URL)
- Spec Sheet URL - 10969_U9SCHJLFY3BDQK1O.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_9UIG4MZYHL2P7W5T.pdf(Tech Drawing URL)
- Applications
- Features
| For Joining A Range Of Two Parallel Cables To Rod Or Tube, Grounding Fence Posts, Direct Burial Applications In Earth Or Concrete |
| Features: High Copper Alloy Ground Connector For Joining A Range Of Two Parallel Cables To Rod Or Tube, Especially Good For Grounding Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts, And Lockwashers Make The GD Suitable For Burial In Ground Or Concrete, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, Ground Rod Size: 1-1/8 - 1-1/4 IN Outer-Diameter, Tube (ips) Size: 1 IN Outer-Diameter, Installation Torque: 240 IN-LB, Stud/bolt Size: 3/8 IN, Width: 2-5/8 IN, Height: 3-3/8 IN, Raised Floor: No |
| High copper alloy ground connector for joining a range of two parallel cables to rod or tube |
| Especially good for grounding fence posts |
| High copper alloy cast body with durium U-bolts, nuts, and lock washers make the gd suitable for burial in ground or concrete |
| Acceptable for direct burial in earth or concrete |
| 240 in-lb installation torque |
| 3/8 in bolt |
| 4 - 2/0 AWG solid - 4 - 2/0 AWG stranded (main/primary) conductor range |
| 1 in IPS pipe |
| Made of High Copper Alloy |
