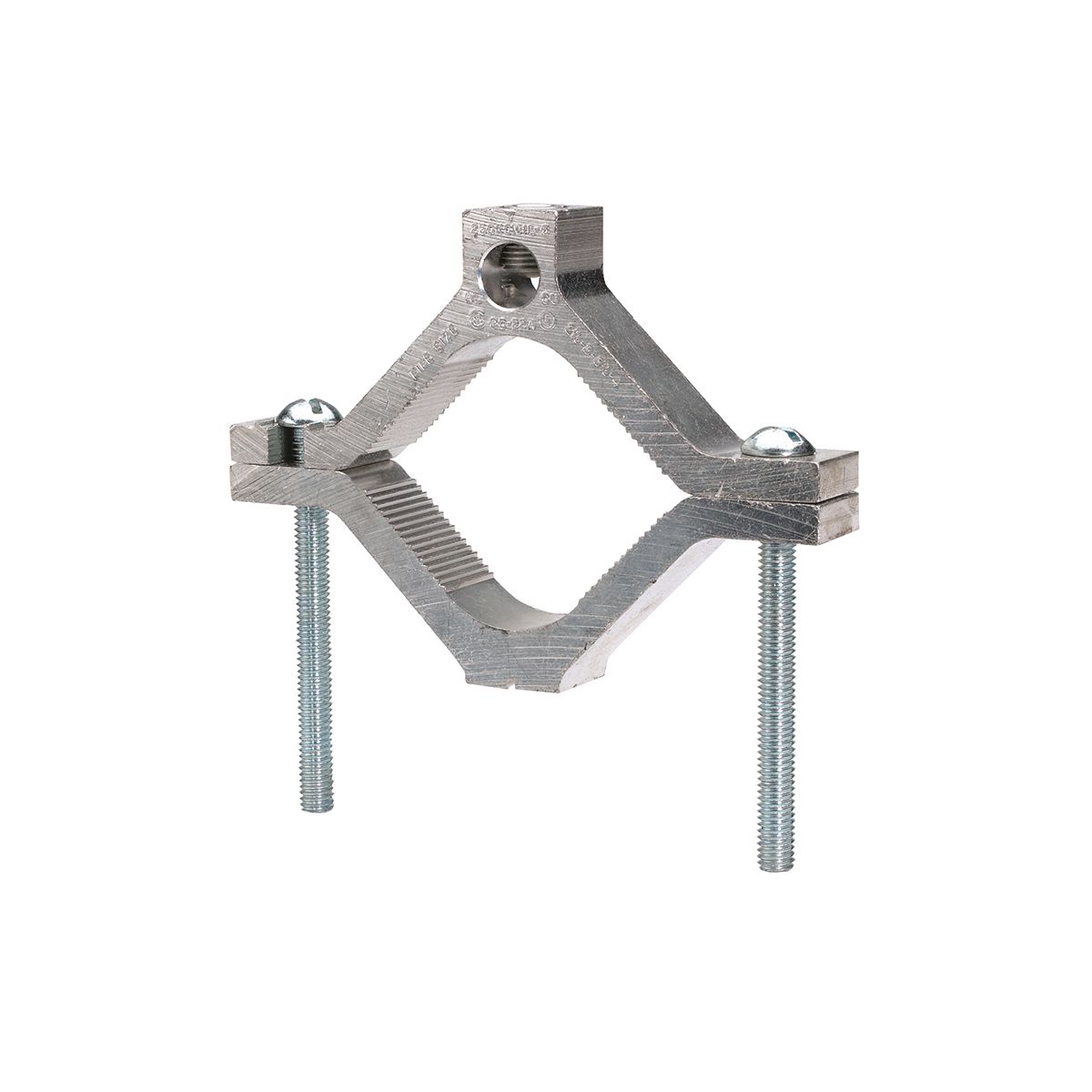

Burndy® GC22A GC-A Dual Rated Mechanical Grounding Connector, 6 AWG to 250 kcmil Conductor, Aluminum
Grounding
85821
MFG #: GC22A
BURNDY®
30.35000
/ ea
- Brochure URL - 10969_FM9GJBVIPN5RUH6O.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_6392dbef406c7046e996be88464d8a5b8880557765b624b99fe32829d7a38b39.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- Spec Sheet URL - 10969_8TVRKQ4IALYOU25N.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_M6AKPEWR0JCL3YXO.pdf(Tech Drawing URL)
- Applications
- Features
| For Use With Either Copper Or Aluminum Conductors To Copper Water Pipe, Galvanized Pipe Or Steel Conduit |
| Features: Ground Clamps Are UL Listed For Use With Either Copper Or Aluminum Conductors To Copper Water Pipe, Galvanized Pipe Or Steel Conduit, All Clamps Are Constructed From Tin-Plated High Strength Extruded Aluminum Alloy, PENETROX Oxide Inhibiting Compounds Are Recommended For All Aluminum, Clamps Are Dual Rated For Both Copper And Aluminum Conductors: Maximum Flexibility Of Application, All Connectors Are Tin Plated: Provide Low Contact Resistance And Prevents Galvanic Corrosion, All Clamps Are Range Taking: Only 3 Catalog Numbers Covers Complete Range Of Applications From 1/2 4 IN, Set Screw Type: Hex Socket, Length: 6-5/16 IN, Hex Size: 5/16 IN, Width: 1 IN |
| Ground clamps are UL listed for use with either copper or aluminum conductors to copper water pipe, galvanized pipe or steel conduit |
| All clamps are constructed from tin plated high strength extruded aluminum alloy |
| Penetrox oxide inhibiting compounds are recommended for all aluminum |
| Clamps are dual-rated for both copper and aluminum conductors |
| Maximum flexibility of application |
| All connectors are tin plated |
| Provide low contact resistance and prevents galvanic corrosion |
| All clamps are range taking |
| Only 3 catalog numbers covers complete range of applications from 1/2 4 in |
| 240 in-lb installation torque |
| 5/16 in hex |
| 6 AWG - 250 kcmil aluminum, 6 - 4/0 AWG solid - 6 AWG - 250 kcmil stranded copper conductor range |
| Made of High Strength Extruded Aluminum Alloy |
