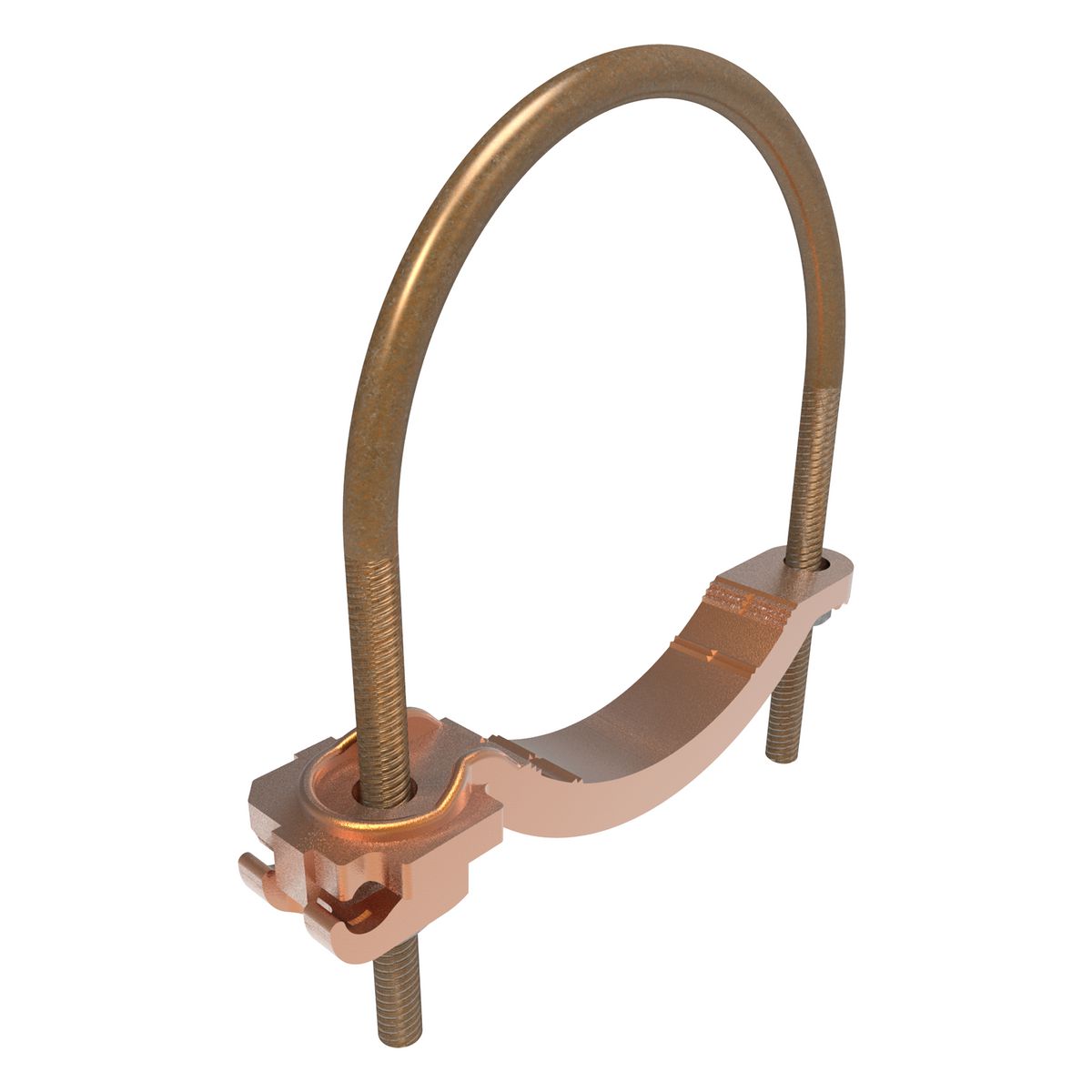

Burndy® GAR3906BU GAR-BU Mechanical Grounding Connector, 6 in Rod, 4 to 4/0 AWG Conductor, Copper
Grounding-Bonding Clamps
292840
MFG #: GAR3906BU
BURNDY®
343.06000
/ ea
- Brochure URL - 10969_LTSOWVGJ7BD3H4CA.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_9f2cfc073fca504bd4b3e727bb486246b0a6c9f0f73fd8f0c7c01c73657b3cf5.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- Line Drawing URL - 10969_ID-DRW-v1-sd206396.pdf(Line Drawing URL)
- Spec Sheet URL - BRDY-GAR3906BU-SPEC-EN.pdf(Spec Sheet URL)
- Spec Sheet URL - BURNDY_GAR3906BU_Specsheet.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-sd206396.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-sd206396.pdf(Tech Drawing URL)
- Applications
- Features
| For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes |
| Features: Type GAR-BU Is A High-Conductivity Copper Ground Connector For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes, Cable Clamp Swivels At 90 DEG, Permits Parallel Grounding Of One Pipe Or A 90 DEG Cable Run For Grounding Several Parallel Pipes, One-Wrench Installation, Simplified Installation, DURIUM Silicon Bronze Hardware (-BU Series), Long Lasting Corrosion Resistance And Acceptable For Direct Burial In Earth Or Concrete, UL467 Listed, Provides Quality Assurance To Recognized Industry NEC Standards From An Independent Party, Ground Rod Size: 6 IN, Tube (ips) Size: 6 IN, Installation Torque: 240 IN-LB, Height: 8.5 IN, Width: 8.62 IN |
| Type GAR-BU is a high conductivity copper ground connector for connecting a small to medium range copper ground conductor to water pipe as well as structural and reinforcing rod shapes |
| Cable clamp swivels at 90 deg |
| Permits parallel grounding of one pipe or a 90 deg cable run for grounding several parallel pipes |
| Simplified installation |
| DURIUM silicon bronze hardware (-BU Series) |
| Long lasting corrosion-resistance and acceptable for direct burial in earth or concrete |
| Provides quality assurance to recognized industry NEC standards from an independent party |
| Silicon bronze screw |
| 200 in-lb installation torque |
| 3/8 in bolt |
| 4 - 4/0 AWG stranded (main/primary) conductor range |
| 6 in IPS pipe |
| Made of High-Conductivity Copper |
