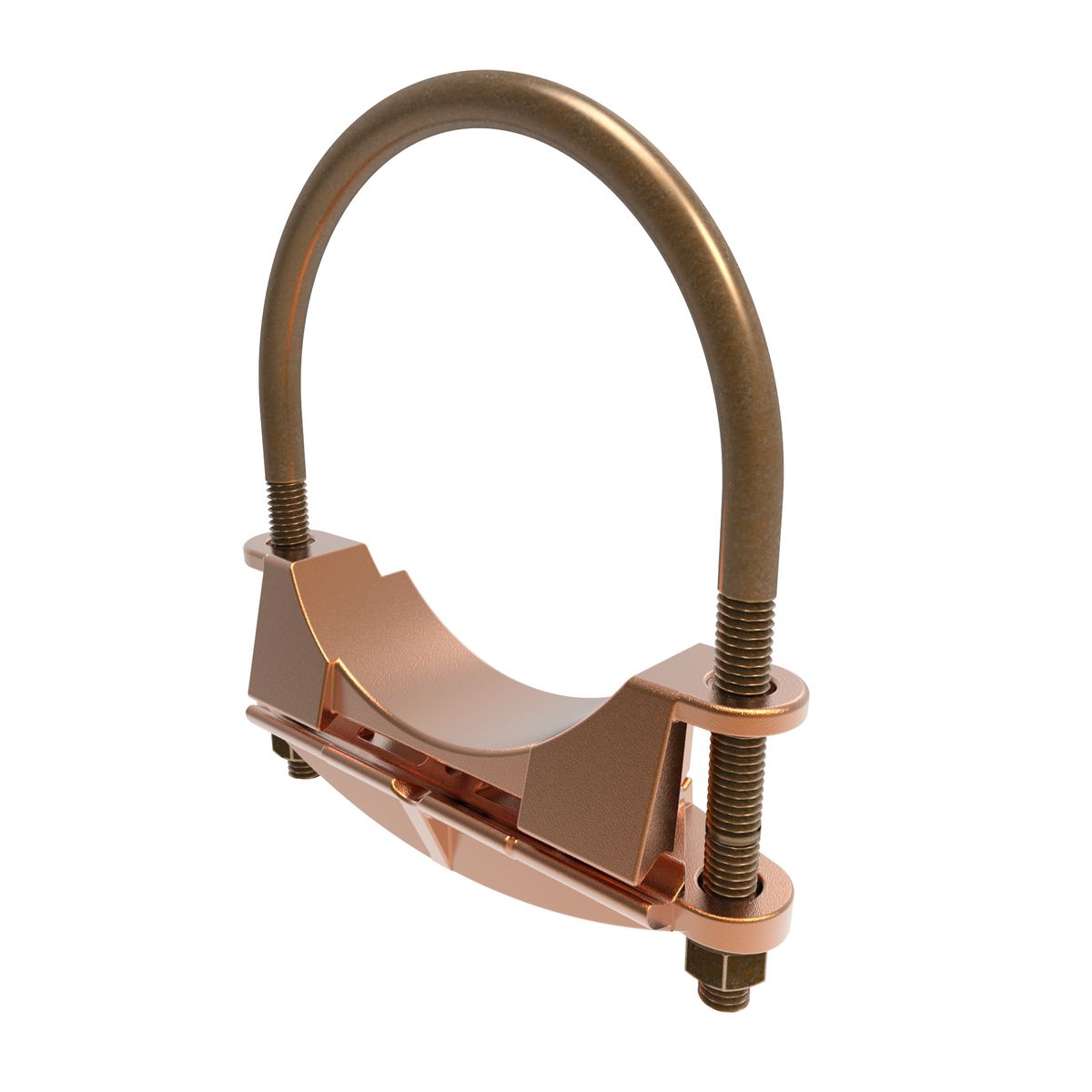

Burndy® GAR2226 Mechanical Grounding Connector, 4 to 4-1/2 in Rod, 4 to 2/0 AWG Conductor, Copper
Grounding-Bonding Clamps
204547
MFG #: GAR2226
BURNDY®
133.08000
/ ea
- Brochure URL - 10969_1SVM87HATB3QDXRF.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_552da81ef2091335935566c1fd4809f27cd6740355c5fa2ac46f94d8be856140.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- Spec Sheet URL - BRDY-GAR2226-SPEC-EN.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_0B1UM5XYTOJIZ9WK.pdf(Tech Drawing URL)
- Applications
- Features
| For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post |
| Features: High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be Buried In Ground Or Concrete Without Danger Of Corrosion, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial, Ground Rod Size: 4 - 4-1/2 IN, Tube (ips) Size: 4 IN, Installation Torque: 240 IN-LB, Height: 6-3/8 IN, Width: 5-7/8 IN |
| High copper alloy ground connector for joining a range of cable, parallel or at right angles to rod or tube |
| Especially good for fence posts |
| High copper alloy cast body with DURIUM U-bolts, nuts and lock washers |
| Permit entire connection to be buried in ground or concrete without danger of corrosion |
| Acceptable for direct burial |
| 240 in-lb installation torque |
| 3/8 in bolt |
| 4 -3/0 AWG solid - 5 - 2/0 AWG stranded (main/primary) conductor range |
| Silicon bronze hardware |
| 4 in IPS pipe |
| Made of High Copper Alloy |
