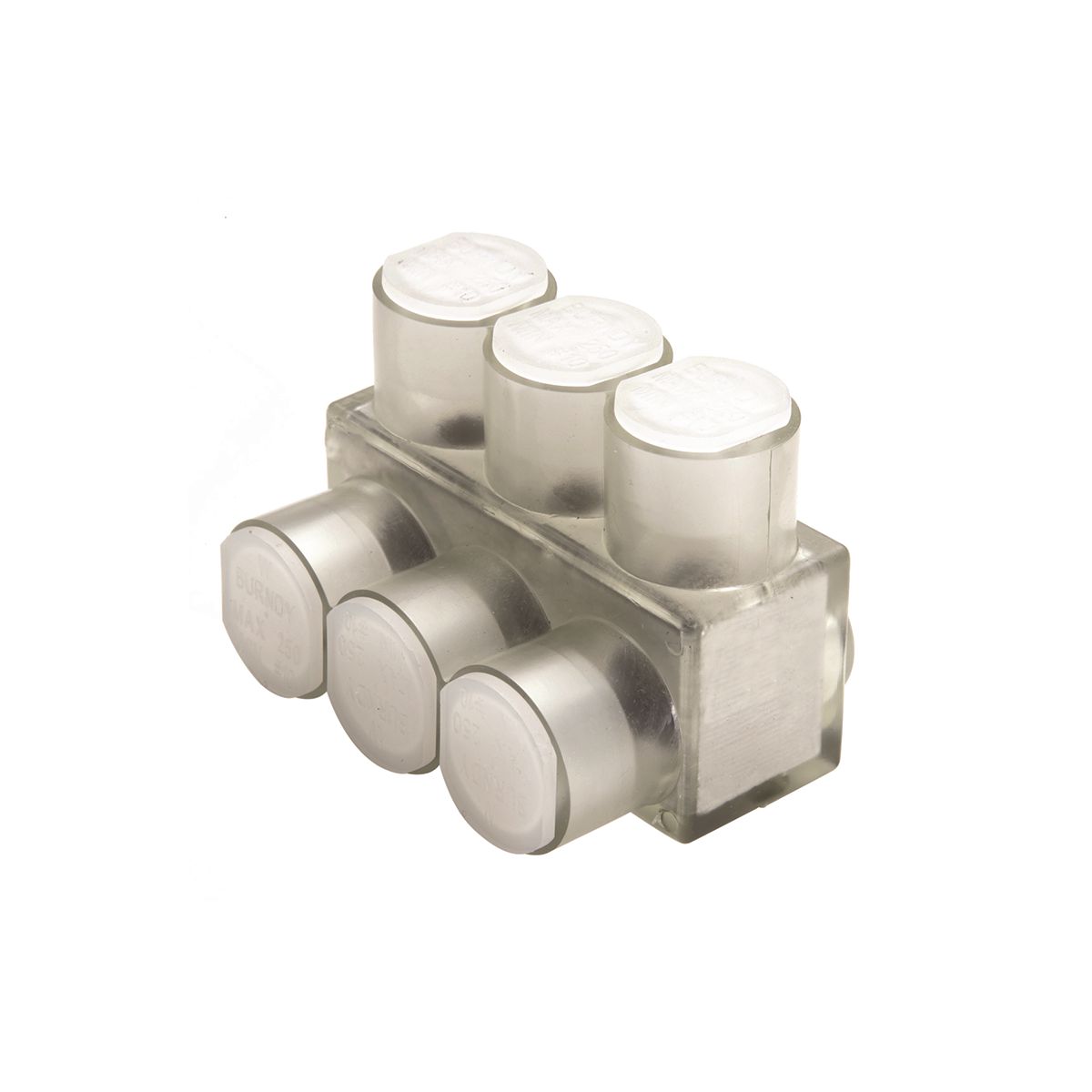

Burndy® BIBS3503 UNITAP™ BIBS 1-Sided Entry Multi-Tap Connector With Mounting Holes, 10 AWG to 350 kcmil
Custom_Product_Images_Illustration
Burndy® BIBS3503 UNITAP™ BIBS 1-Sided Entry Multi-Tap Connector With Mounting Holes, 10 AWG to 350 kcmil
SKU19422
MFGR #BIBS3503
Your Cost: $41.23/ea
List: UNITAP™ Clear Insulated Multi-Tap is UL Listed to the UL Wire Connector Standard UL486A-486B and CSA Certified for use with flexible (fine stranded) conductor - with no ferrules required! Featuring color coordinated conductor port and screw port caps making it easy to identify the maximum conductor size accommodated by the connector.
UNITAP™ Clear Insulated Multi-Tap is UL Listed to the UL Wire Connector Standard UL486A-486B and CSA Certified for use with flexible (fine stranded) conductor - with no ferrules required! Featuring color coordinated conductor port and screw port caps making it easy to identify the maximum conductor size accommodated by the connector.
Application For Indoor Use Only, Copper Or Stranded Aluminum ARRA Compliant C Buy American Compliant C Catalog Number BIBS3503 Country of Origin US Dimensions 3.13 in L x 2.32 in W x 2.5 in H EU RoHS Indicator Y Gross Weight Per Pack 0.4700 lb Gross Weight per Pack Metric 0.23 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 2.50 in Height [Metric] 6.3500 cm Length 3.13 in Length [Metric] 7.9502 cm Returnable Y Series BIBS Specifications 5/16 in Hex Key, 275 in-lb Torque Multi-Port, 1-1/8 in Stripe Standard UL 486A-486B Sub Brand UNITAP Temperature Rating 194 °C Type BIBS, Multi-Port UNSPSC 39121427 UPC 11 78181013177 UPC 12 781810131770 Voltage Rating 600 VAC Width 2.32 in Width [Metric] 5.8928 cm Stock Status NORMALLY STOCKED Brand BURNDY® Manufacturer BURNDY® Conductor Size 10 AWG-350 KCMIL Conductor Type Copper/Stranded Aluminum Material Aluminum For Indoor Use Only, Copper Or Stranded Aluminum Features: UNITAP Rated For Code Conductor Only, Torque: 275 IN-LB, Wire Entry: Single, Hex Size (key): 5/16 IN, Conductor Size (run - Range): 10 AWG - 350 KCMIL, Type Of Insulation: Plastisol, Wire Strip Length: 1-1/8 IN, Number Of Ports: 3 Clear plastisol insulation allows visual confirmation that conductor is properly inserted Clear plastisol covered AL6061-T6 aluminum body saves time, lowers installation costs, eliminates taping Oxide inhibitor pre-installed which inhibits moisture and contaminants from entering the contact area Range taking reduces number of connectors carried in inventory 3-Ports, 10 screw Unplated, inspectable 4/0, 2/0, 3/0, 2, 1, 4, 1/0, 8, 10, 6 AWG to 250, 350 kcmil stranded copper, 8 AWG to 350 kcmil aluminum
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Indoor Use Only, Copper Or Stranded Aluminum |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | BIBS3503 |
| Country of Origin | US |
| Dimensions | 3.13 in L x 2.32 in W x 2.5 in H |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.4700 lb |
| Gross Weight per Pack Metric | 0.23 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 2.50 in |
| Height [Metric] | 6.3500 cm |
| Length | 3.13 in |
| Length [Metric] | 7.9502 cm |
| Returnable | Y |
| Series | BIBS |
| Specifications | 5/16 in Hex Key, 275 in-lb Torque Multi-Port, 1-1/8 in Stripe |
| Standard | UL 486A-486B |
| Sub Brand | UNITAP |
| Temperature Rating | 194 °C |
| Type | BIBS, Multi-Port |
| UNSPSC | 39121427 |
| UPC 11 | 78181013177 |
| UPC 12 | 781810131770 |
| Voltage Rating | 600 VAC |
| Width | 2.32 in |
| Width [Metric] | 5.8928 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 10 AWG-350 KCMIL |
| Conductor Type | Copper/Stranded Aluminum |
| Material | Aluminum |
| For Indoor Use Only, Copper Or Stranded Aluminum |
| Features: UNITAP Rated For Code Conductor Only, Torque: 275 IN-LB, Wire Entry: Single, Hex Size (key): 5/16 IN, Conductor Size (run - Range): 10 AWG - 350 KCMIL, Type Of Insulation: Plastisol, Wire Strip Length: 1-1/8 IN, Number Of Ports: 3 |
| Clear plastisol insulation allows visual confirmation that conductor is properly inserted |
| Clear plastisol covered AL6061-T6 aluminum body saves time, lowers installation costs, eliminates taping |
| Oxide inhibitor pre-installed which inhibits moisture and contaminants from entering the contact area |
| Range taking reduces number of connectors carried in inventory |
| 3-Ports, 10 screw |
| Unplated, inspectable |
| 4/0, 2/0, 3/0, 2, 1, 4, 1/0, 8, 10, 6 AWG to 250, 350 kcmil stranded copper, 8 AWG to 350 kcmil aluminum |
