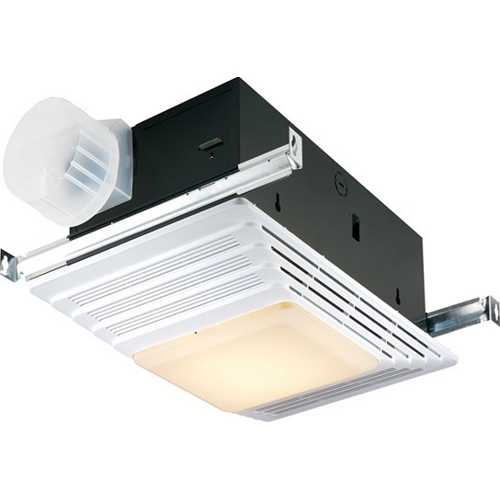

Broan® 657 Fan/Light, 70 cfm, 4 in Duct, 100 W, 120 VAC, 2 A, Import
Bathroom Exhaust Fans
490
MFG #: 657
Broan®
137.03000
/ ea
Broan features classic ventilation fan/light combinations which easily fit any d?cor. Why stop at just powerful ventilation when you can add extra lighting to help brighten any room.
- Brochure URL - BRO_IDEA_1203.pdf(Brochure URL)
- Catalog 1 URL - Broan-NuTone_696_Catalog.pdf(Catalog 1 URL)
- http://www.broan.com(Seller Home Page URL)
- Data Sheet 1 URL - IDW_DOCUMENT_1520611739392.pdf(Data Sheet 1 URL)
- Catalog URL - IDW_DOCUMENT_a156c5360b76e0a0ed78200c009bbeba1853d2c39b846964d8cade392b923659.pdf(Catalog URL)
- Install Instructions URL - Broan-NuTone_657_Instruction_Installation.pdf(Install Instructions URL)
- Warranty URL - warranty(Warranty URL)
- Spec Sheet URL - SPE_0168d655-2a6e-4208-9a0f-a11817786c73.pdf(Spec Sheet URL)
- Applications
- Features
| For Bathrooms Up To 65 SQ-FT |
| Plug-in, permanently lubricated motor with resilient anti-vibration mounts; Low sound, high performance blower wheel; Directional vanes in grille with snap-in light diffusing lens; Adjustable mounting brackets span up to 24 IN; Polymeric damper/duct connector with 2 IN long tapered sleeve and no metallic clatter; Compact 23 GA steel housing finished with electrically bonded epoxy paint; For installation in ceilings up to 12/12 pitch; Suitable for use in insulated ceilings (Type IC); Use supply wiring rated for at least 90 ° C; Accessories (Purchase separately): Model 68V (ivory)/68W (white) two function control; 1 YR warranty |
| Designer styled white polymeric grille complements virtually any decor |
| Bright 100 W light capacity |
| 15 A circuit acceptable |
| Use with model 68W or 68V 2-function control |
| UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit |
| Does not include heater |
| Permanently lubricated plug-in motor quietly deliver high efficiency performance |
| Built-in damper prevents backdrafts and eliminates metallic clatter |
| Adjustable, slotted mounting brackets span upto 24 in for easy installation |
| Polymeric 4 in round duct features a 2 in long tapered sleeve for easy, positive ducting |
| 16-3/4 in L x 10-5/8 in W white polymeric grille |
| 2 x 6 in minimum construction space required |
| Plug-in, permanently lubricated motor with resilient anti-vibration mounts |
| Low sound, high performance blower wheel |
| Polymeric damper/duct connector with 2 in L tapered sleeve and no metallic clatter |
| Compact 23 ga steel housing finished with electrically bonded epoxy paint |
| For installation in ceilings upto 12/12 pitch |
| Suitable for use in insulated ceilings (Type IC) |
| Use supply wiring rated for at least 90 deg C |
