Banner®

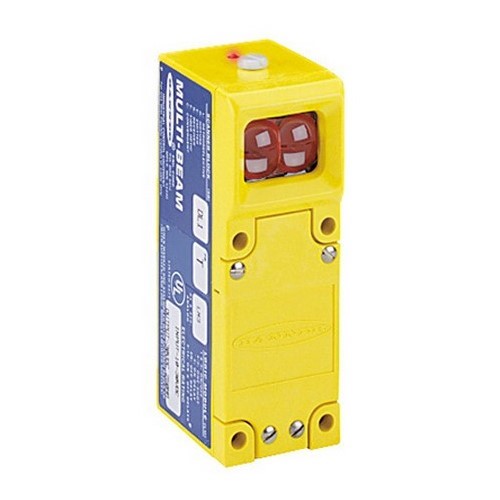

Banner Engineering SBEX SCANNER BLOCK,10 - 30 V
Banner®
Banner Engineering SBEX SCANNER BLOCK,10 - 30 V
SKU13314
MFGR #SBEX
Your Cost: $261.00/ea
Multi-Beam High-Power Long-Range Opposed Mode Emitter Scanner Block, Voltage Rating: 10 - 30 VDC, Amperage Rating: Less Than 60 MILAMP, Sensing Range: 700 FT, Sensing Beam: 940 NMTR Infrared LED, Output: One Open-Collector NPN Transistor, Enclosure: Nema 1, 3, 12, 13, Reinforced Valox Housing With Components, Totally Encapsulated Stainless Steel Hardware, Response Time: 10 MS, Leakage Current: Off-State Output: Less Than 10 MICAMP, Connection: 3/4 Wire, Size: 114 MM Height X 40 MM Width X 53 MM Depth, Operating Temperature: -40 To 70 DEG C, UL Listed, CE, CSA Certified, For Use With Banner Multi-Beam Photoelectric Sensors
Multi-Beam High-Power Long-Range Opposed Mode Emitter Scanner Block, Voltage Rating: 10 - 30 VDC, Amperage Rating: Less Than 60 MILAMP, Sensing Range: 700 FT, Sensing Beam: 940 NMTR Infrared LED, Output: One Open-Collector NPN Transistor, Enclosure: Nema 1, 3, 12, 13, Reinforced Valox Housing With Components, Totally Encapsulated Stainless Steel Hardware, Response Time: 10 MS, Leakage Current: Off-State Output: Less Than 10 MICAMP, Connection: 3/4 Wire, Size: 114 MM Height X 40 MM Width X 53 MM Depth, Operating Temperature: -40 To 70 DEG C, UL Listed, CE, CSA Certified, For Use With Banner Multi-Beam Photoelectric Sensors
Amperage Rating 60m A Application For Use With Banner Multi-Beam Photoelectric Sensors Catalog Number SBEX Connection 3/4 Wire Country of Origin US Enclosure Nema 1, 3, 12, 13, Reinforced Valox Housing With Components, Totally Encapsulated Stainless Steel Hardware Gross Weight Per Pack 0.5210 lb Leakage Current Off-State Output: Less Than 10 MICAMP Operating Temperature -40 To 70 Output One Open-Collector NPN Transistor Sensing Beam 940 NMTR Infrared LED Size 114 MM Height X 40 MM Width X 53 MM Depth Sub Brand Multi-Beam Type High-Power Long-Range Opposed Mode Emitter Scanner Block UNSPSC 39121528 UPC 11 66248816445 UPC 12 66248816445 Stock Status NONSTOCK Brand Banner® Manufacturer Banner Engineering Corp. Response Time 10 Sensing Range 700 Voltage Rating 10 - 30 V For Use With Banner Multi-Beam Photoelectric Sensors Scanner blocks for opposed, retro, diffuse, convergent, and fiber optic sensing modes; Most scanner blocks include Banner's exclusive, patented alignment indicating device system, which lights a top-mounted indicator LED whenever the sensor sees its own modulated light source, and pulses the LED at a rate proportional to the strength of the received light signal; Best choice for opposed sensing in extremely dirty environments; Also useable side-by-side for long-distance mechanical convergent sensing; 3 and 4 wire system
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 60m A |
| Application | For Use With Banner Multi-Beam Photoelectric Sensors |
| Catalog Number | SBEX |
| Connection | 3/4 Wire |
| Country of Origin | US |
| Enclosure | Nema 1, 3, 12, 13, Reinforced Valox Housing With Components, Totally Encapsulated Stainless Steel Hardware |
| Gross Weight Per Pack | 0.5210 lb |
| Leakage Current | Off-State Output: Less Than 10 MICAMP |
| Operating Temperature | -40 To 70 |
| Output | One Open-Collector NPN Transistor |
| Sensing Beam | 940 NMTR Infrared LED |
| Size | 114 MM Height X 40 MM Width X 53 MM Depth |
| Sub Brand | Multi-Beam |
| Type | High-Power Long-Range Opposed Mode Emitter Scanner Block |
| UNSPSC | 39121528 |
| UPC 11 | 66248816445 |
| UPC 12 | 66248816445 |
| Stock Status | NONSTOCK |
| Brand | Banner® |
| Manufacturer | Banner Engineering Corp. |
| Response Time | 10 |
| Sensing Range | 700 |
| Voltage Rating | 10 - 30 V |
| For Use With Banner Multi-Beam Photoelectric Sensors |
| Scanner blocks for opposed, retro, diffuse, convergent, and fiber optic sensing modes; Most scanner blocks include Banner's exclusive, patented alignment indicating device system, which lights a top-mounted indicator LED whenever the sensor sees its own modulated light source, and pulses the LED at a rate proportional to the strength of the received light signal; Best choice for opposed sensing in extremely dirty environments; Also useable side-by-side for long-distance mechanical convergent sensing; 3 and 4 wire system |
