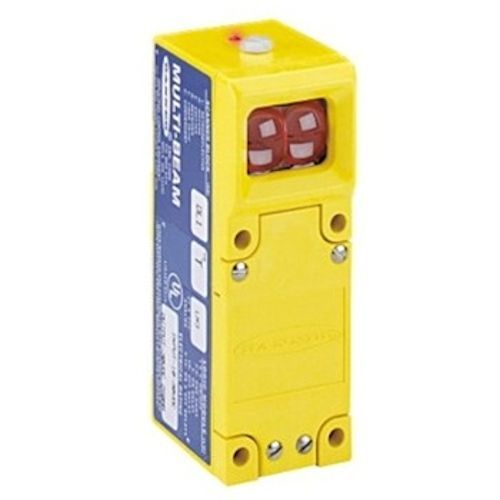

Banner Engineering Multi-Beam® SBLV1 High Speed Scanner Block, Visible Beam 6 in to 30 ft Sensor, 1 ms Response Time
Sensor Heads & Blocks
13361
MFG #: SBLV1
BANNER®
270.97000
/ ea
Banner Engineering Multi-Beam® Scanner Block, High Speed, Visible Beam Sensor, 6 in to 30 ft Sensing Range, 1 ms Response
- Features
| MULTI-BEAM 3 and 4-wire scanner blocks offer a complete complement of sensing modes; input and output depends on power block; includes Alignment indicating Device (AID™); Visible beam makes alignment very easy, and is the first choice for most retroreflective applications; Not for use in dirty environments, do not locate retroreflector closer than 6 in from sensor; Totally encapsulated construction with stainless steel hardware; Control located on top of scanner block beneath o-ring gasketed screw cover |
| High speed, visible beam retro reflective |
| 650 nm sensing beam wavelength |
| 0.3 ms repeatability |
