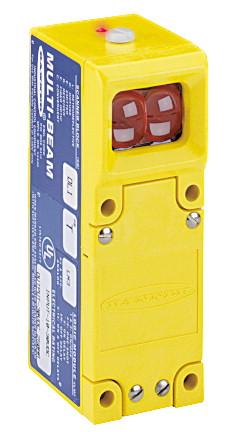

| MULTI-BEAM 3 and 4-wire scanner blocks offer a complete complement of sensing modes; Sensing range depends on fiber used; includes Alignment indicating Device (AID™); input and output depends on power block; Is the first choice for glass fiber optic applications, except in fiber optic retroreflective applications or where faster response speed or visible light are a requirement; Contains both emitter and receiver and thus accepts either one bifurcated fiber optic assembly or two individual fiber optic cables; The excess gain of model SBFX1 is the highest available in the photoelectric industry, as a result opposed individual fibers operate reliably in many very hostile environments; Also, special miniature bifurcated fiber optic assemblies with bundle sizes as small as 0.02 in in diameter may be used successfully with model SBFX1 for diffuse mode sensing; |
