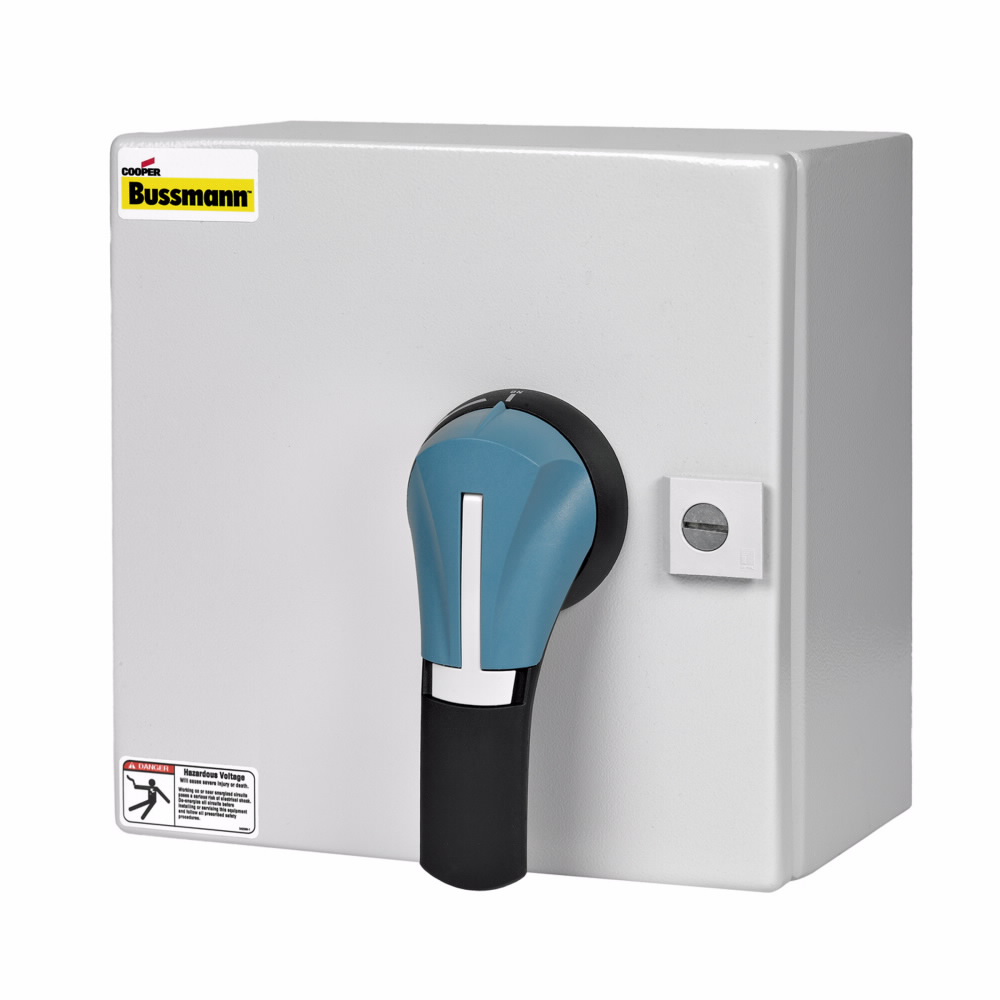

BUSS ER12-30J3PB ENC DISC30J NEMA12
SKU891088
MFGR #ER12-30J3PB
Your Cost: $2,770.70/ea
List: Enclosed Fused Disconnect, 30A, Black, Fuse class J, Pistol handle, 600 Vac, NEMA rating 12
Enclosed Fused Disconnect, 30A, Black, Fuse class J, Pistol handle, 600 Vac, NEMA rating 12
Actuator Type Rotary Pistol Handle Alternate Catalog Number ER12-30J3PB Application Stationary Mach Equip In Factory - Robotics ARRA Compliant C Buy American Compliant C Catalog Number ER12-30J3PB Color Black Country of Origin US Currency USD Depth 13.6000 in Dimensions 13.6 in L x 13.5 in W x 12.3 in H Enclosure Type NEMA 12 EU RoHS Indicator C Gross Weight Per Pack 15.0000 lb Gross Weight per Pack Metric 6.80 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509025 Height 12.30 in Height [Metric] 31.2420 cm Length 13.60 in Length [Metric] 34.5440 cm NEMA Rating NEMA 12 Number Of Poles 3 Series ER Series Short Circuit Current Rating 200 kA Standard CE Marked Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 98UL File No. E182262Guide WIAXGuide WIAX7UL 508 E155129 Guide NLRVGuide NLRV7CE CertifiedCSA Certified Sub Brand Bussmann Series Temperature Rating -20 to 70 °C Terminal Type Lug Type None UNSPSC 39122205 UPC 11 05171241556 UPC 12 051712415569 Width 13.50 in Width [Metric] 34.2900 cm Stock Status NONSTOCK Brand Bussmann Manufacturer Eaton Amperage Rating 30 A Horsepower 20 Voltage Rating 600 V Stationary Mach Equip In Factory - Robotics Fuse class J, Pistol handle Multiple field installed accessories enhance the enclosed disconnect switches to fit the desired application Up to three 1/4 in shank padlocks can be installed ON external handles Black handle 250-600 VDC (some non-fused disconnect switches are not rated for DC applications) 25 - 200 kA short circuit rating Class J Fuse type
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Rotary Pistol Handle |
| Alternate Catalog Number | ER12-30J3PB |
| Application | Stationary Mach Equip In Factory - Robotics |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | ER12-30J3PB |
| Color | Black |
| Country of Origin | US |
| Currency | USD |
| Depth | 13.6000 in |
| Dimensions | 13.6 in L x 13.5 in W x 12.3 in H |
| Enclosure Type | NEMA 12 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 15.0000 lb |
| Gross Weight per Pack Metric | 6.80 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509025 |
| Height | 12.30 in |
| Height [Metric] | 31.2420 cm |
| Length | 13.60 in |
| Length [Metric] | 34.5440 cm |
| NEMA Rating | NEMA 12 |
| Number Of Poles | 3 |
| Series | ER Series |
| Short Circuit Current Rating | 200 kA |
| Standard | CE Marked |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 98UL File No. E182262Guide WIAXGuide WIAX7UL 508 E155129 Guide NLRVGuide NLRV7CE CertifiedCSA Certified |
| Sub Brand | Bussmann Series |
| Temperature Rating | -20 to 70 °C |
| Terminal Type | Lug |
| Type | None |
| UNSPSC | 39122205 |
| UPC 11 | 05171241556 |
| UPC 12 | 051712415569 |
| Width | 13.50 in |
| Width [Metric] | 34.2900 cm |
| Stock Status | NONSTOCK |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 30 A |
| Horsepower | 20 |
| Voltage Rating | 600 V |
| Stationary Mach Equip In Factory - Robotics |
| Fuse class J, Pistol handle |
| Multiple field installed accessories enhance the enclosed disconnect switches to fit the desired application |
| Up to three 1/4 in shank padlocks can be installed ON external handles |
| Black handle |
| 250-600 VDC (some non-fused disconnect switches are not rated for DC applications) |
| 25 - 200 kA short circuit rating |
| Class J Fuse type |
