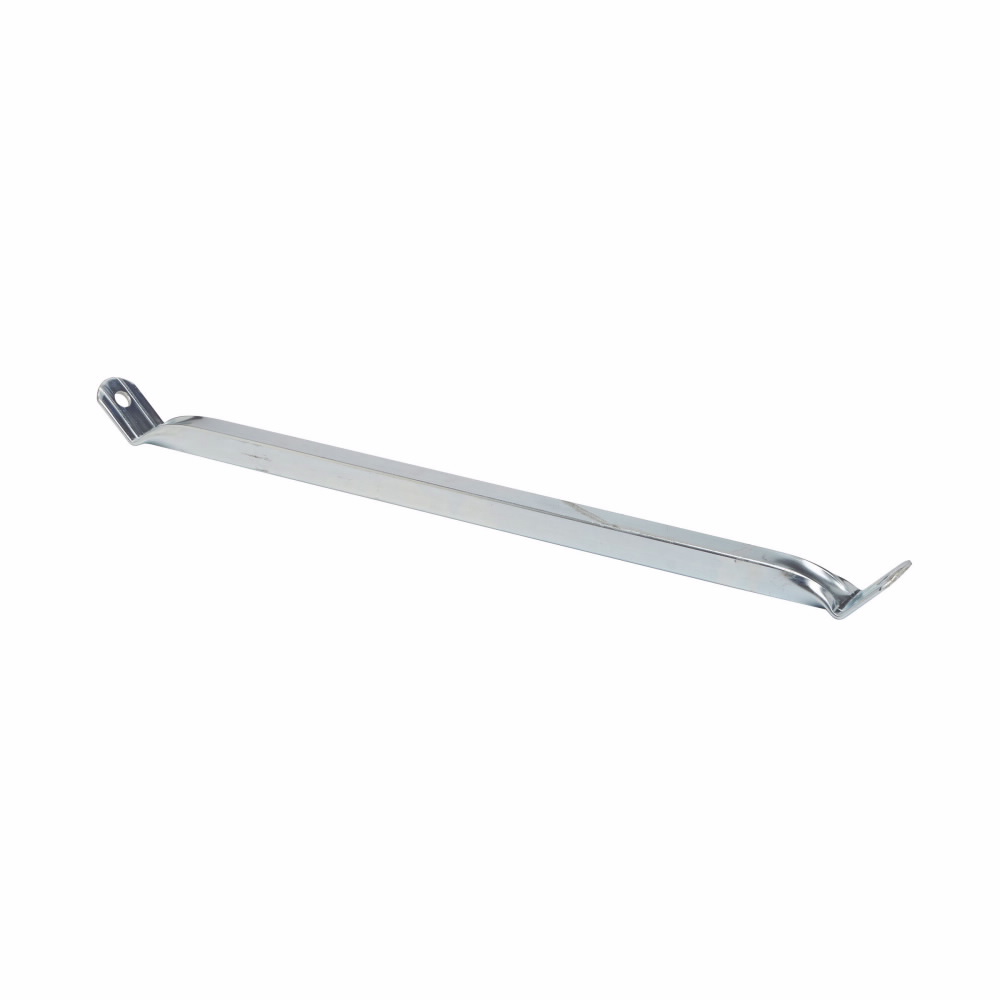

B-Line B631-18ZN 45 deg Tubing Knee Brace, 2 Holes, 18 in L x 1-3/4 in W x 1/4 in THK, Steel Strip
Channel Brackets & Braces
219868
MFG #: B631-18ZN
B-Line
6162.78000
/ ea
- Brochure URL - Bolted_Framing.html(Brochure URL)
- Catalog URL - B_Line_NW528ZN_Brochure.pdf(Catalog URL)
- http://www.bline.com(Seller Home Page URL)
- Spec Sheet URL - 11024_XH8DYSUWOZ1NK5FB.pdf(Spec Sheet URL)
- Spec Sheet URL - fittings-braces.pdf(Spec Sheet URL)
- Spec Sheet URL - skuPage.B631-18ZN.pdf(Spec Sheet URL)
- Warranty URL - 11024_ID-WAR-v1-B-Line_Legal_Statement_and_Terms_and_Conditions.pdf(Warranty URL)
- Warranty URL - b-line-terms-and-conditions.html(Warranty URL)
- Applications
- Features
| Datacenters - Datacenters - OtherOther IT and Datacom - Other InfrastructuresResidential Bldgs & Facilities - Residential Bldgs & Facilities - OtherInd Facilities & Factories - Industrial Facilities/Factories - OtherWater and Wastewater Systems - Water and Wastewater Systems - OtherInd Facilities & Factories - Facility - OtherDatacenters - IT Space: Enterprise / Server Room / Network ClosetCommercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - OtherCommercial / Institutional Buildings / Structures - Commercial/Inst Bldg Strctures - AftermarketGeneration - Renewable Energy - Alternative EnergyUtilityGeneration - Conventional Energy - Conventional Energy |
| Load Capacity 1500 Lb, Weight 145 Lb per 100 |
| 3 safety factor |
| Load ratings are for brace members only |
| Do not exceed allowable beam or column loads for strut channels |
| Design load determined by testing using a B335 hinged corner connection |
| Hot Rolled/Pickled/Oiled Plate/Strip Steel |
