B-Line

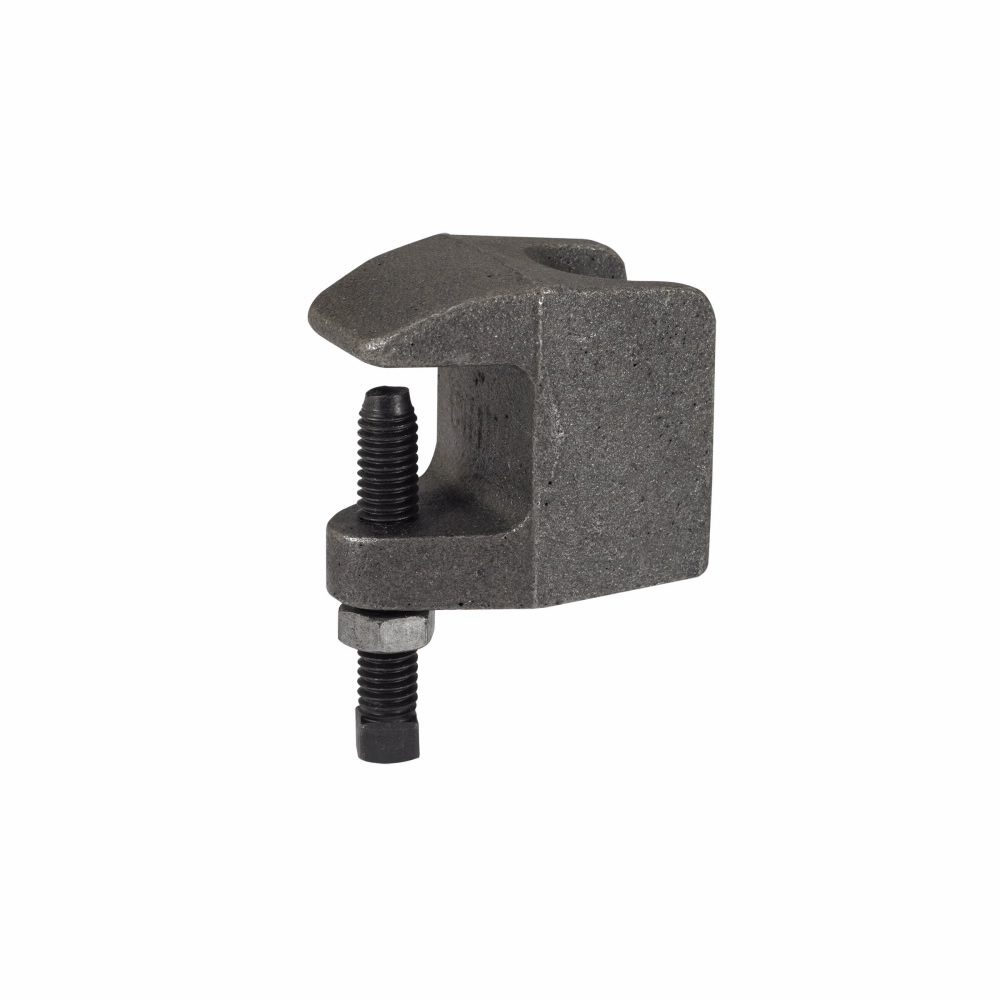

B-Line B3034-1/2PLN C-Clamp, 1/2-13 Rod, 3/4 in THK, 750/1130 lb Load, Steel, Plain
Custom_Product_Images_Illustration
B-Line
B-Line B3034-1/2PLN C-Clamp, 1/2-13 Rod, 3/4 in THK, 750/1130 lb Load, Steel, Plain
SKU264936
MFGR #B3034-1/2PLN
Your Cost: $10.95/ea
List: B-Line is a leading manufacturer and fabricator of metal products used in the support of pipe hangers and support equipment for industrial, commercial, utility and HVACR applications. B-Line pipe hangers and supports includes a wide variety of support products such as beam clamps, pipe hangers, pipe clamps, pipe rollers, pipe supports, concrete inserts and brackets.
B-Line is a leading manufacturer and fabricator of metal products used in the support of pipe hangers and support equipment for industrial, commercial, utility and HVACR applications. B-Line pipe hangers and supports includes a wide variety of support products such as beam clamps, pipe hangers, pipe clamps, pipe rollers, pipe supports, concrete inserts and brackets.
Alternate Catalog Number 78101170549 ARRA Compliant C Buy American Compliant C Catalog Number B3034-1/2PLN Country of Origin CN Currency USD Dimensions 1-13/16 in H x 1-3/16 in W x 2-3/16 in D EU RoHS Indicator C Gross Weight Per Pack 0.4700 lb Gross Weight per Pack Metric 0.24 Gross Weight UOM Metric kg Height 1.81 in Height [Metric] 4.6038 cm Length 2.19 in Length [Metric] 5.5563 cm Returnable N Series B3034 Size 3/4 in Specifications 8 in Pipe Standard UL (CANADA AND US), FM, Federal Specification WW-H-171E, A-A-1192A Type 23 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantFederal Specification WW-H-171EA-A-1192A Type 40A/Type 40BANSI/MSS SP-69/SP-58 Type 39A/Type 39B Sub Brand B-Line series Suitable For Use With Pipe Hanger Type Mechanical UNSPSC 39121311 UPC 11 78101170549 UPC 12 781011705497 Width 1.19 in Width [Metric] 3.0163 cm Stock Status NONSTOCK Brand B-Line Manufacturer Eaton Finish No Finish Flange Thickness 3/4 in Load Capacity 810 lb Material Cast Malleable Steel Rod Size 1/2-13 Water and Wastewater Systems - Water and Wastewater Systems - OtherOther IT and Datacom - Other InfrastructuresCommercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - OtherCommercial / Institutional Buildings / Structures - Commercial/Inst Bldg Strctures - AftermarketDatacenters - IT Space: Enterprise / Server Room / Network ClosetInd Facilities & Factories - Facility - OtherGeneration - Conventional Energy - Conventional EnergyGeneration - Renewable Energy - Alternative EnergyUtilityResidential Bldgs & Facilities - Residential Bldgs & Facilities - OtherDatacenters - Datacenters - OtherInd Facilities & Factories - Industrial Facilities/Factories - Other Includes Hardened Cup Point Setscrew and Jam Nut, Rod Size 1/2 in-13 TPI, Weight 47 Lb per 100 Recommended for hanging from steel beam where flange thickness does not exceed 3/4 in Beveled lip allows hanging from top flange where clearance is limited May be installed with the set screw in the up or down position Offset design permits unlimited rod adjustment by allowing the rod to be threaded completely through the clamp The rear window design permits inspection of thread engagement 750 lb (Setscrew up), 1130 lb (Setscrew down) Cast Malleable steel
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 78101170549 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | B3034-1/2PLN |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 1-13/16 in H x 1-3/16 in W x 2-3/16 in D |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.4700 lb |
| Gross Weight per Pack Metric | 0.24 |
| Gross Weight UOM Metric | kg |
| Height | 1.81 in |
| Height [Metric] | 4.6038 cm |
| Length | 2.19 in |
| Length [Metric] | 5.5563 cm |
| Returnable | N |
| Series | B3034 |
| Size | 3/4 in |
| Specifications | 8 in Pipe |
| Standard | UL (CANADA AND US), FM, Federal Specification WW-H-171E, A-A-1192A Type 23 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantFederal Specification WW-H-171EA-A-1192A Type 40A/Type 40BANSI/MSS SP-69/SP-58 Type 39A/Type 39B |
| Sub Brand | B-Line series |
| Suitable For Use With | Pipe Hanger |
| Type | Mechanical |
| UNSPSC | 39121311 |
| UPC 11 | 78101170549 |
| UPC 12 | 781011705497 |
| Width | 1.19 in |
| Width [Metric] | 3.0163 cm |
| Stock Status | NONSTOCK |
| Brand | B-Line |
| Manufacturer | Eaton |
| Finish | No Finish |
| Flange Thickness | 3/4 in |
| Load Capacity | 810 lb |
| Material | Cast Malleable Steel |
| Rod Size | 1/2-13 |
| Water and Wastewater Systems - Water and Wastewater Systems - OtherOther IT and Datacom - Other InfrastructuresCommercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - OtherCommercial / Institutional Buildings / Structures - Commercial/Inst Bldg Strctures - AftermarketDatacenters - IT Space: Enterprise / Server Room / Network ClosetInd Facilities & Factories - Facility - OtherGeneration - Conventional Energy - Conventional EnergyGeneration - Renewable Energy - Alternative EnergyUtilityResidential Bldgs & Facilities - Residential Bldgs & Facilities - OtherDatacenters - Datacenters - OtherInd Facilities & Factories - Industrial Facilities/Factories - Other |
| Includes Hardened Cup Point Setscrew and Jam Nut, Rod Size 1/2 in-13 TPI, Weight 47 Lb per 100 |
| Recommended for hanging from steel beam where flange thickness does not exceed 3/4 in |
| Beveled lip allows hanging from top flange where clearance is limited |
| May be installed with the set screw in the up or down position |
| Offset design permits unlimited rod adjustment by allowing the rod to be threaded completely through the clamp |
| The rear window design permits inspection of thread engagement |
| 750 lb (Setscrew up), 1130 lb (Setscrew down) |
| Cast Malleable steel |
