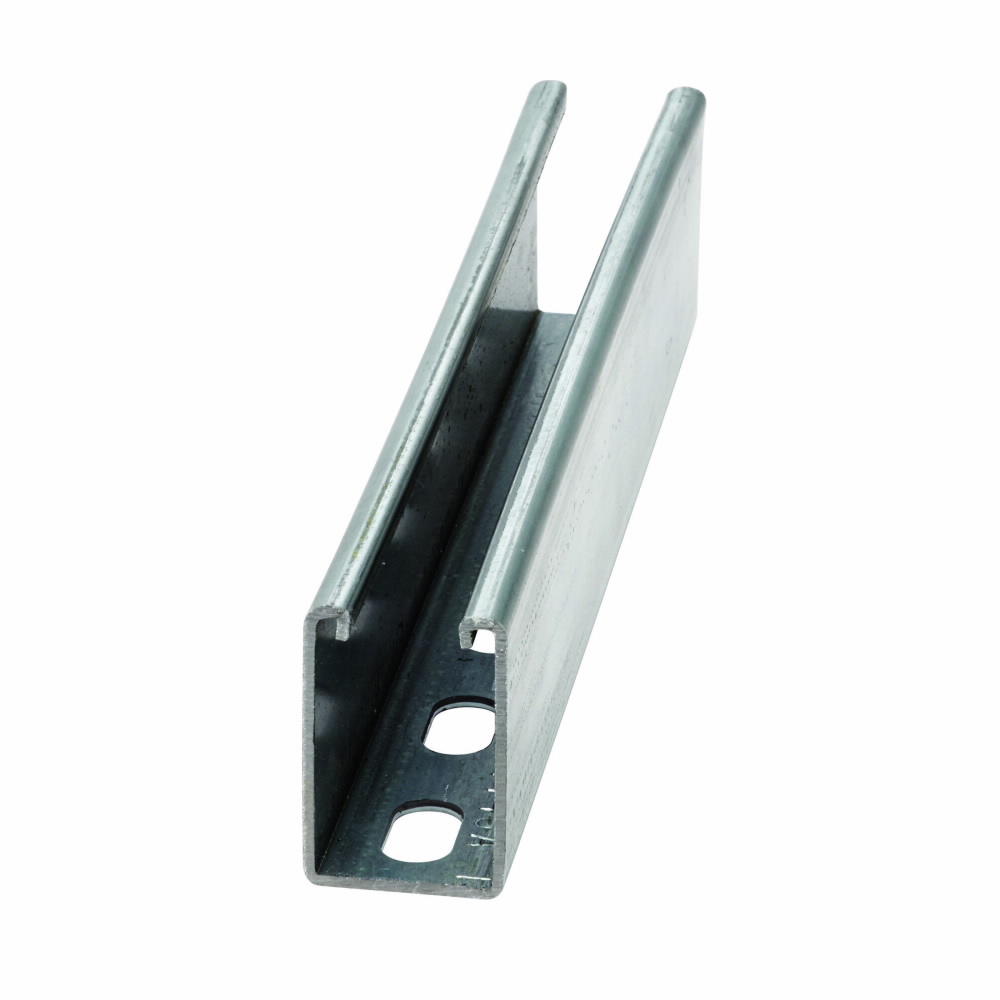

B-Line B12SHGALV20 Metal Framing Channel, 9/16 x 1-1/8 in Slots, 2 in Spacing, 12 ga THK, 20 ft L
Channel & Strut
437690
MFG #: B12SH-240GLV
B-Line
1308.89000
/ ft
Eaton's metal framing support system provides an economical solution for electrical, mechanical and industrial supports and is designed with many time saving features. They are fully adjustable and reusable, with a complete line of channels, fittings and accessories for multi-purpose applications. Channel and fittings can be taken apart for reuse as quickly as they were assembled, producing substantial savings in time and labor, yet they provide the strength of welded construction.
- Brochure URL - mfc-b12channel.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_4cdd1f8b1efe172e9d518dbe86f1dd4d546f6eec6b0ffe588018979fea0983d0.pdf(Catalog URL)
- Cold Formed Low Carbon Steel(Material Composition)
- Data Sheet 1 URL - Eaton_B22SHAGALV10_Data_Sheet.pdf(Data Sheet 1 URL)
- http://www.bline.com(Seller Home Page URL)
- Install Instructions 1 URL - 11024_U97DRC3LV1X5ATFB.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - kwiksplice-cable-tray-system-tab-and-lock-trapeze-support-ctis-19.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 11024_YSA90RN7CDIBKQZW.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11024_M824CDFPTY6L7EVW.pdf(Tech Bulletin URL)
- Tech Bulletin URL - kwiksplice-flextray-sa302003en.pdf(Tech Bulletin URL)
- Warranty URL - 11024_ID-WAR-v1-B-Line_Legal_Statement_and_Terms_and_Conditions.pdf(Warranty URL)
- Warranty URL - b-line-terms-and-conditions.html(Warranty URL)
- Applications
- Features
| Generation - Renewable Energy - Alternative EnergyInd Facilities & Factories - Facility - OtherCommercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - OtherUtilityInd Facilities & Factories - Industrial Facilities/Factories - OtherDatacenters - Datacenters - OtherGeneration - Conventional Energy - Conventional EnergyCommercial / Institutional Buildings / Structures - Commercial/Inst Bldg Strctures - AftermarketWater and Wastewater Systems - Water and Wastewater Systems - OtherDatacenters - IT Space: Enterprise / Server Room / Network ClosetOther IT and Datacom - Other InfrastructuresResidential Bldgs & Facilities - Residential Bldgs & Facilities - Other |
| 2 in Center Spacing |
| Metal framing channel is cold formed on our modern rolling mills from 12 to 16 ga low carbon steel strips |
| A continuous slot with inturned lips provides the ability to make attachments at any point |
| Slotted series of channels offer full flexibility |
| A variety of pre-punched slot patterns eliminate the need for precise field measuring for hole locations |
| Bolted frame |
| Slots offer wide adjustments in the alignment and bolt sizing |
