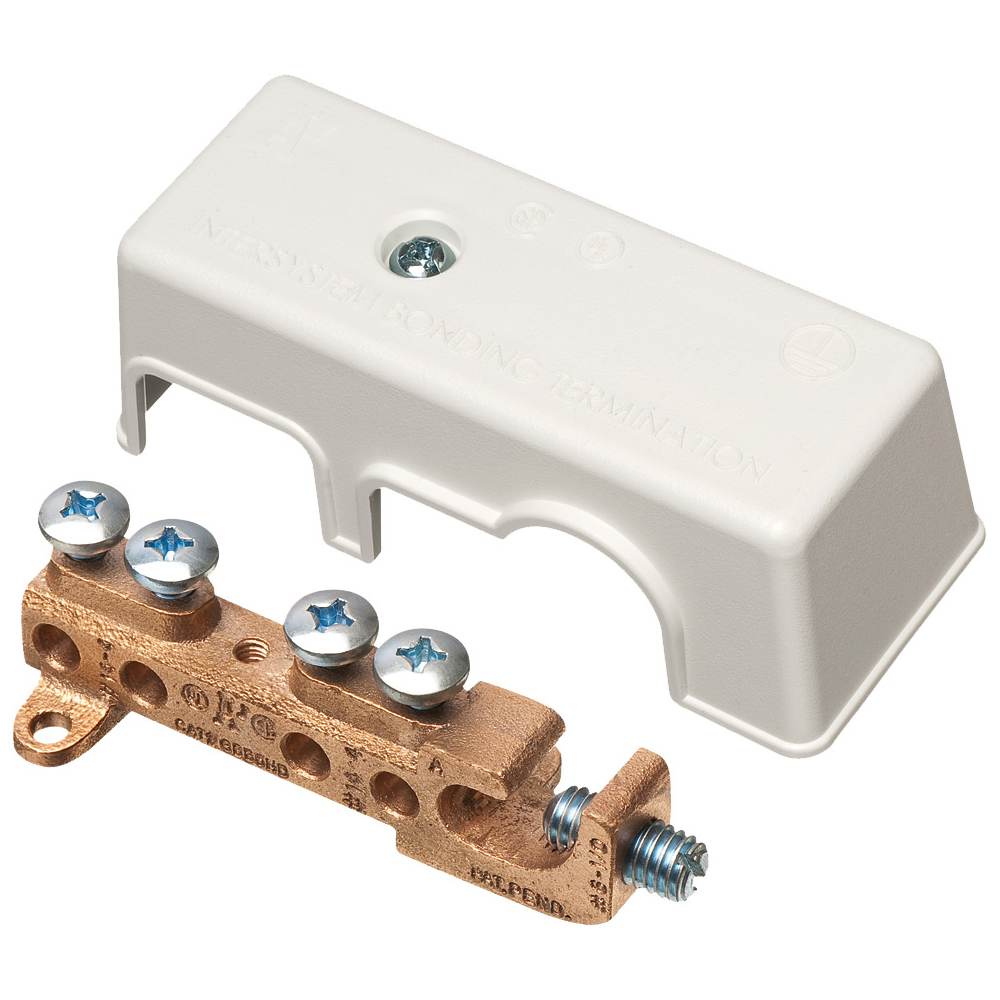

Arlington GBB50 Intersystem Grounding Bridge, Solid/Stranded Conductor, NO 6 to NO 1/0 Conductor, 0.872 in, Bronze
Busbar & Bracket Assemblies
553213
MFG #: GBB50
Arlington
2446.07000
/ ea
Arlington's heavy-duty Grounding Bridges provide reliable intersystem bonding between power and communication grounding systems. They have four termination points; onemore than required by 250.94 of the 2014 NEC. Available in zinc and bronze, our Grounding Bridges have the capacity to handle multiple hookups of communications systems like telephone CATV or satellite dish.
- http://www.aifittings.com(Seller Home Page URL)
- http://www.aifittings.com/(Seller Home Page URL)
- Line Drawing URL - ID-LIN-v1-GB5-GBB5.pdf(Line Drawing URL)
- Line Drawing URL - 11196_ID-LIN-v1-GB5-GBB5.pdf(Line Drawing URL)
- Spec Sheet 1 URL - Arlington_GB5_Datasheet_1.pdf(Spec Sheet 1 URL)
- Line Drawing URL - GB5-GBB5.pdf(Line Drawing URL)
- Spec Sheet URL - ID-SPE-v1-GB5.pdf(Spec Sheet URL)
- Spec Sheet URL - GB5.pdf(Spec Sheet URL)
- Spec Sheet URL - 11196_ID-SPE-v1-GB5.pdf(Spec Sheet URL)
- Warranty URL - warranty.pdf(Warranty URL)
- Video - https://www.youtube.com/embed/yFWw3Spb4Ck(Video)
- Warranty URL - 11196_FO6QK9M85W1P2H4B.pdf(Warranty URL)
- Features
| Comes With Cover |
| Fast, simple installation on grounding conductor |
| Easy access for inspections |
| For good looks use the textured, paintable plastic cover |
| Plastic cover is textured and paintable for good looks |
| GB5 has four termination points one more than required by 250.94 of the 2014 NEC |
| Handles multiple hook-ups of communications systems such as a phone, cable TV or satellite dish |
| Intersystem grounding bridge, has 4 termination points, one more than required by the NEC |
| Cable range 4 termination points for 14 to 4 AWG solid or stranded |
| Attaches to grounding conductor with lay-in style lug with a cable range of 6 to 1/0 AWG grounding wire solid or stranded |
| Attaches to grounding conductor with lay-in style lug with a cable range of 6 to 1/0 AWG grounding wire solid or stranded |
